DTC P1723
DTC P1723 : Park Pawl System Initial Check Error
General Description

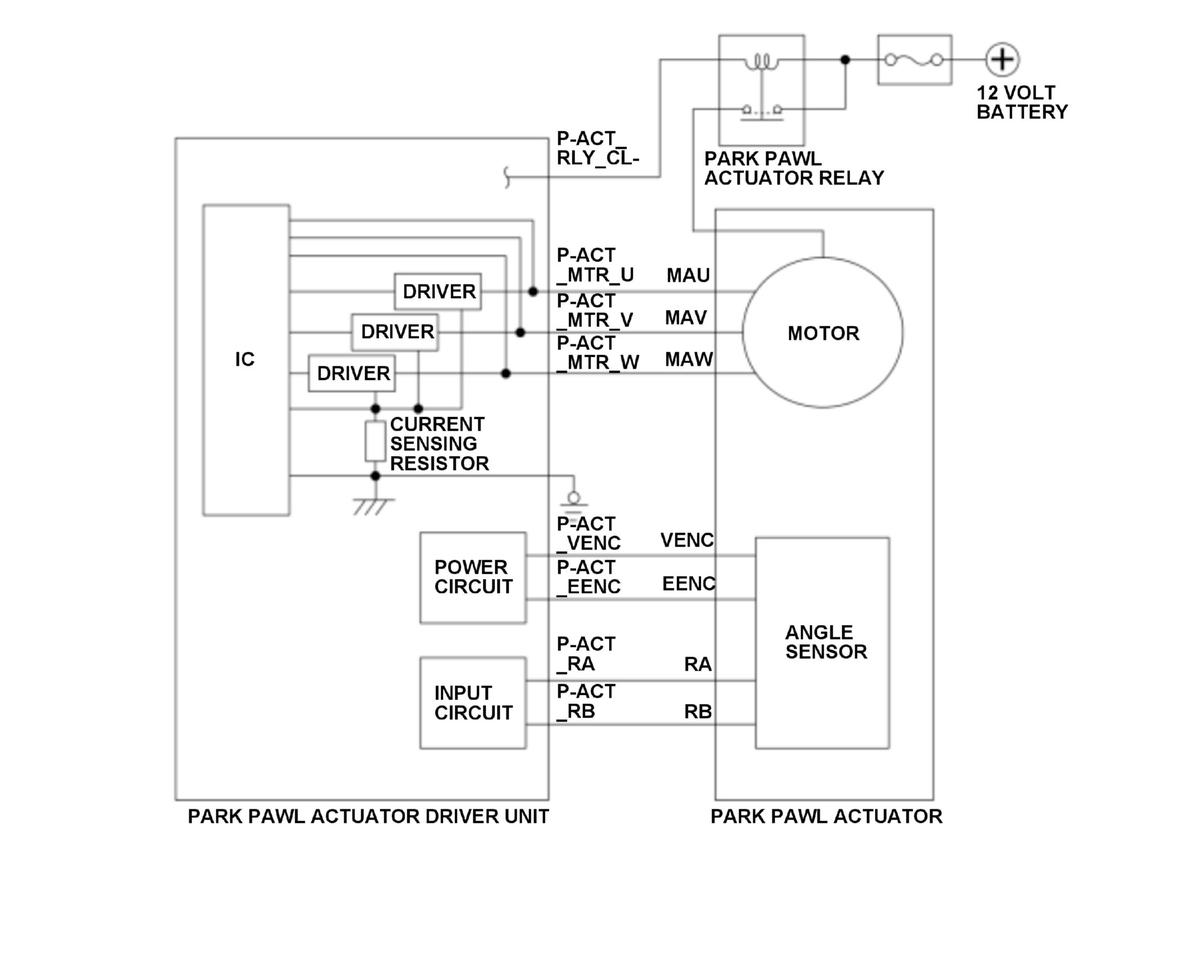

The park pawl actuator driver unit controls shifting/releasing of the park pawl actuator to/from the P position. The park pawl actuator driver unit performs the initial learning when the vehicle is turned to the ON mode. If the initial learning does not complete even when a specified length of time or more has passed after the vehicle is turned to the ON mode, the powertrain control module (PCM) receives malfunction from the park pawl actuator driver unit, and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | - |
| Sequence | None |
| Duration | 5.0 seconds or more |
| DTC Type | One drive cycle, MIL off, shift position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 10.5 V | - |
[ ]: HDS Parameter
Malfunction Threshold
The initial learning continued for at least 5.0 seconds after the vehicle condition is turned to the ON mode.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Park pawl actuator internal failure
- Park mechanism failure
Confirmation Procedure
Operating Condition
Turn the vehicle to the ON mode, and wait for at least 10 seconds.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
