DTC P05C0

WARNING: This page is about a different variant/trim than selected.

DTC P05C0: Shutter Grille Actuator (Upper) Temperature Malfunction

General Description

Courtesy of HONDA, U.S.A., INC.

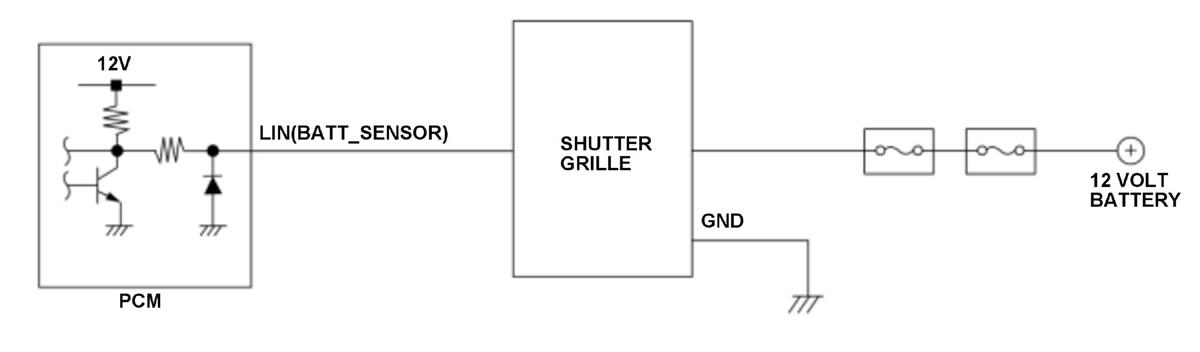

The shutter grille system open/closes the shutter depending on the driving conditions. The system improves fuel efficiency by reducing the wind drag. The shutter is controlled by the shutter grille which integrates the actuator. The powertrain control module (PCM) sends open/close requests which depends on the driving conditions to the shutter grille via the local interconnect network (LIN) line. If the temperature is detected as abnormal, the PCM confirms the abnormality and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	2.5 seconds or more
DTC Type	One drive cycle, MIL off

Enable Conditions

Condition
State of the engine	Running

Malfunction Threshold

The internal temperature of the shutter grille actuator is 302 deg.F (150 deg.C) or more for at least 2.5 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Shutter grille internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
