DTC P032F (2021)
DTC P032F: Engine Stall
General Description

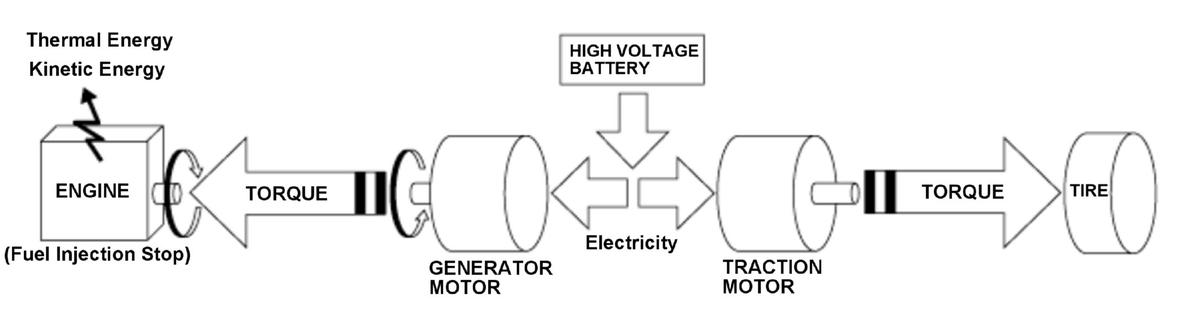

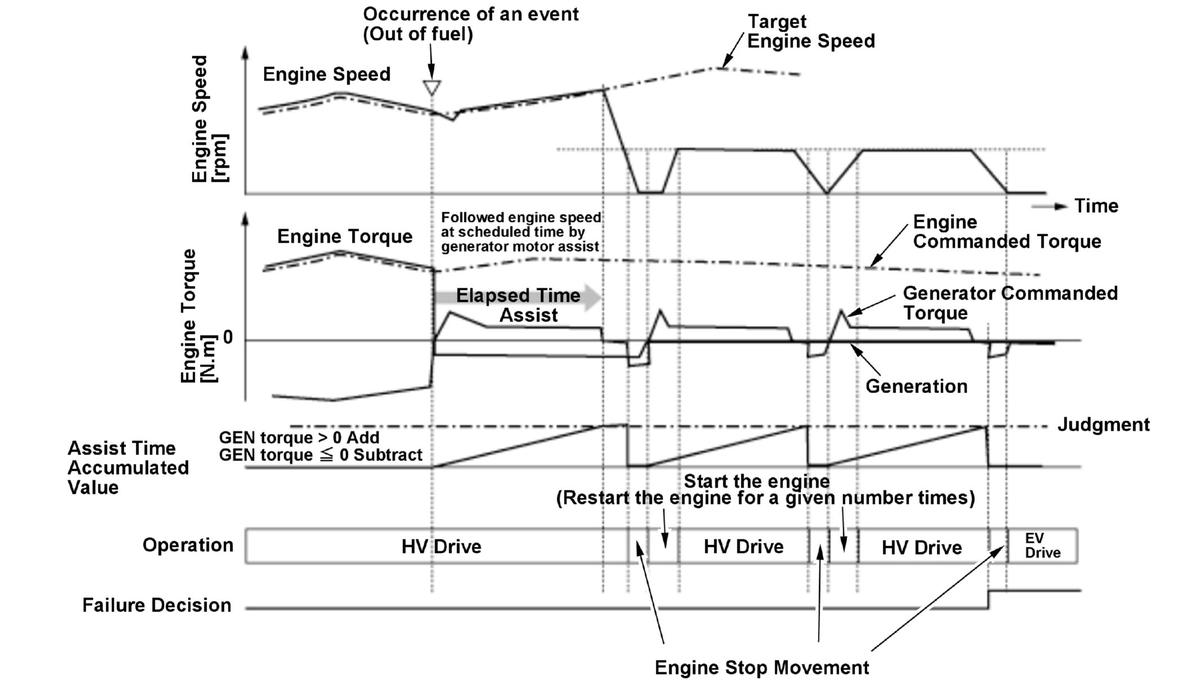

If engine speed decreases or if the engine stalls after the engine speed was maintained by the generator for a given period of time, then it determined that the engine torque is not being generated. When engine torque is still not generated after trying to restart the engine for a given number of times, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 27 seconds or more (51 seconds or more)* |
| DTC Type | One drive cycle, MIL on |
*: After disconnecting the 12 volt battery.
Enable Conditions
| Condition | ||
|---|---|---|
| State of the vehicle | HV driving mode | |
| Engine clanking mode | ||
| Other | Other than a catalytic converter warm-up | |
| During fuel injection | ||
Malfunction Threshold
When generator motor assists continues for 27 seconds (51 seconds)* or more.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Out of fuel
- Fuel system perfection stop
- Engine stall
- Ignition system relay failure
Confirmation Procedure
Operating Condition
Drive the vehicle for 27 seconds (51 seconds)* or more.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
