DTC P0201, P0202, P0203, P0204

WARNING: This page is about a different variant/trim than selected.

DTC P0201: No. 1 Cylinder Injector Circuit Malfunction

DTC P0202: No. 2 Cylinder Injector Circuit Malfunction

DTC P0203: No. 3 Cylinder Injector Circuit Malfunction

DTC P0204: No. 4 Cylinder Injector Circuit Malfunction

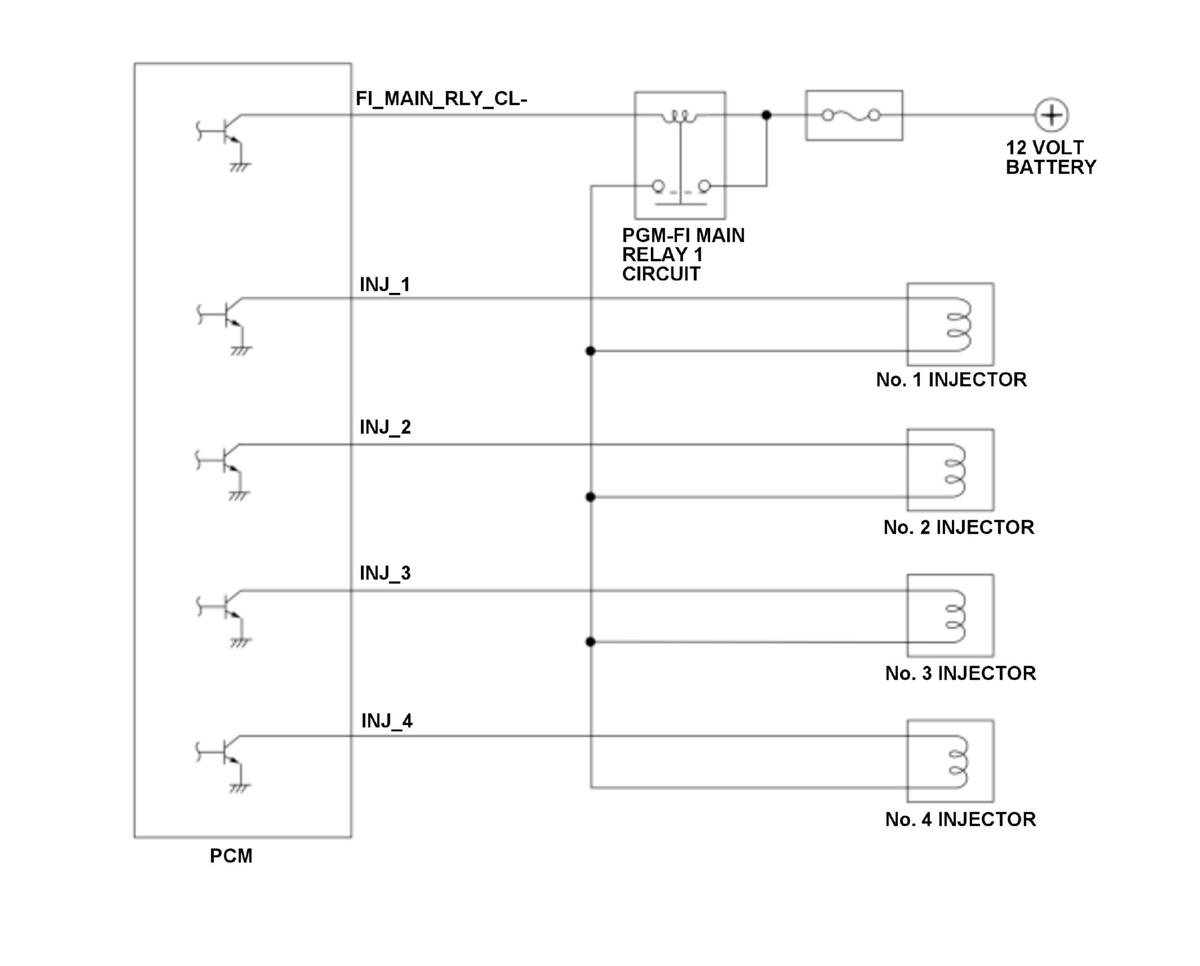

General Description

Courtesy of HONDA, U.S.A., INC.

The injector supplies fuel to the engine and is controlled by the powertrain control module (PCM) ON/OFF command. In the PCM, the injector driver receives a drive commands from the CPU and drives the injector. The CPU monitors a terminal voltage of PCM by the return signal circuit. If the return signal from the injector does not change for a specified time, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	5 seconds or more (at idle)
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery]	10 V	-
State of the engine	Running
Other	Other than during fuel cut-off operation

[ ]: HDS Parameter

Malfunction Threshold

The return signal from the injector does not change at least 30 times (counts once per engine cycle).

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

P0201

No. 1 injector INJ_1 line open
No. 1 injector INJ_1 line short to ground
No. 1 injector INJ_1 line short to power
No. 1 injector power supply line open
No. 1 injector failure

P0202

No. 2 injector INJ_2 line open
No. 2 injector INJ_2 line short to ground
No. 2 injector INJ_2 line short to power
No. 2 injector power supply line open
No. 2 injector failure

P0203

No. 3 injector INJ_3 line open
No. 3 injector INJ_3 line short to ground
No. 3 injector INJ_3 line short to power
No. 3 injector power supply line open
No. 3 injector failure

P0204

No. 4 injector INJ_4 line open
No. 4 injector INJ_4 line short to ground
No. 4 injector INJ_4 line short to power
No. 4 injector power supply line open
No. 4 injector failure

Common

PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
