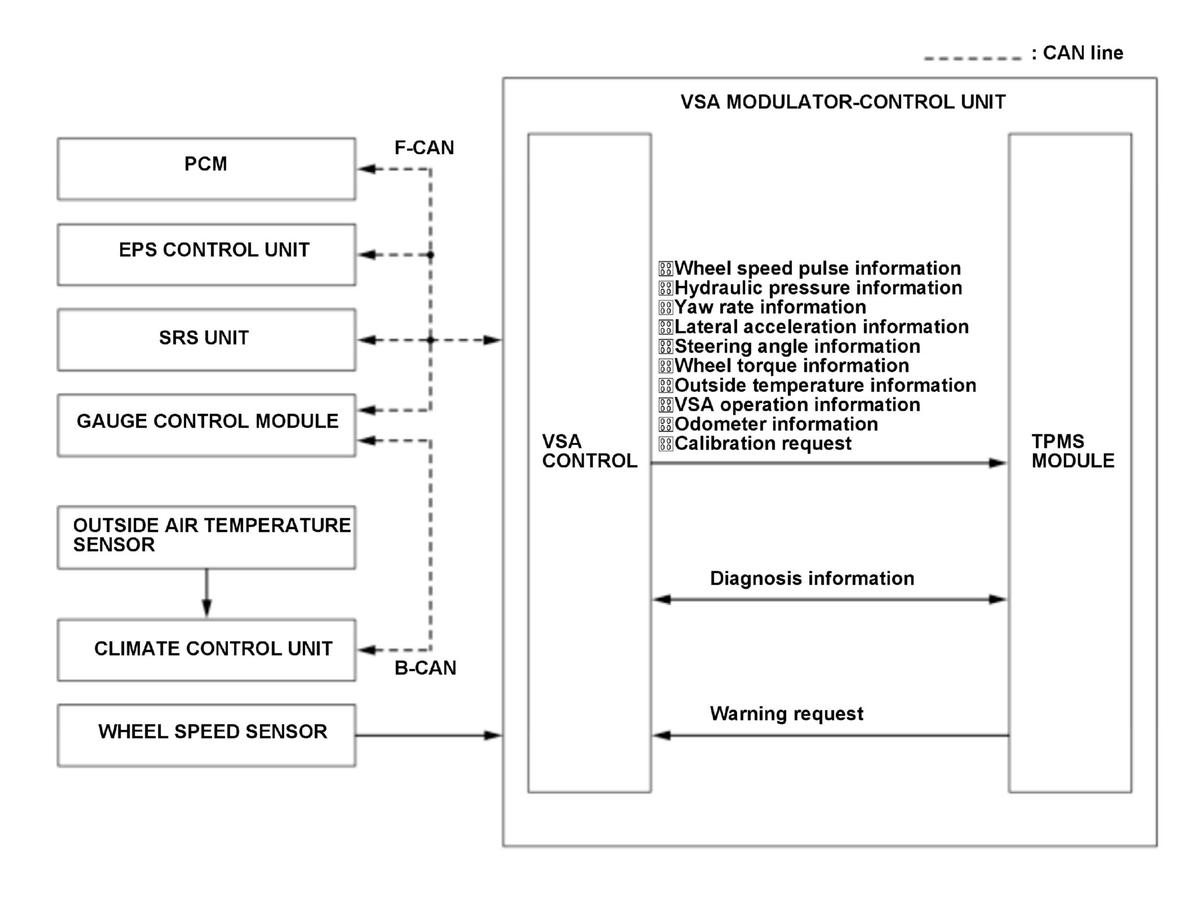

TPMS System Description - System Diagram

The TPMS module is integrated into the VSA modulator-control unit. In order to control tire pressure monitoring, the TPMS module first receives inputs from the VSA system, which includes the wheel speed sensors, the hydraulic pressure sensor, the PCM, the SRS unit, the EPS control unit, and the gauge control module. Then, the TPMS module sends commands to the gauge control module through the VSA modulator-control unit and issues warnings to the driver.

For locations of each component on vehicle, refer to Component Location Index:

• VSA modulator-control unit, Wheel speed sensors,
• EPS control unit
• PCM
• SRS unit
• Gauge control module
• Climate control unit, Outside air temperature sensor

Courtesy of HONDA, U.S.A., INC.
