Engine Oil Level Check and Replacement: Check
WARNING: This page is about a different variant/trim than selected.
- Engine Oil Level - Check
1. Park the vehicle on level ground, and enter the maintenance mode, then start the engine . Hold the engine speed at 3000 RPM with no load (in P or N) until the cooling fan(s) comes on, then turn the vehicle to the OFF (LOCK) mode, and wait more than 3 minutes. 2. Remove the dipstick, and wipe off the dipstick, then reinstall the dipstick.
3. Remove the dipstick.

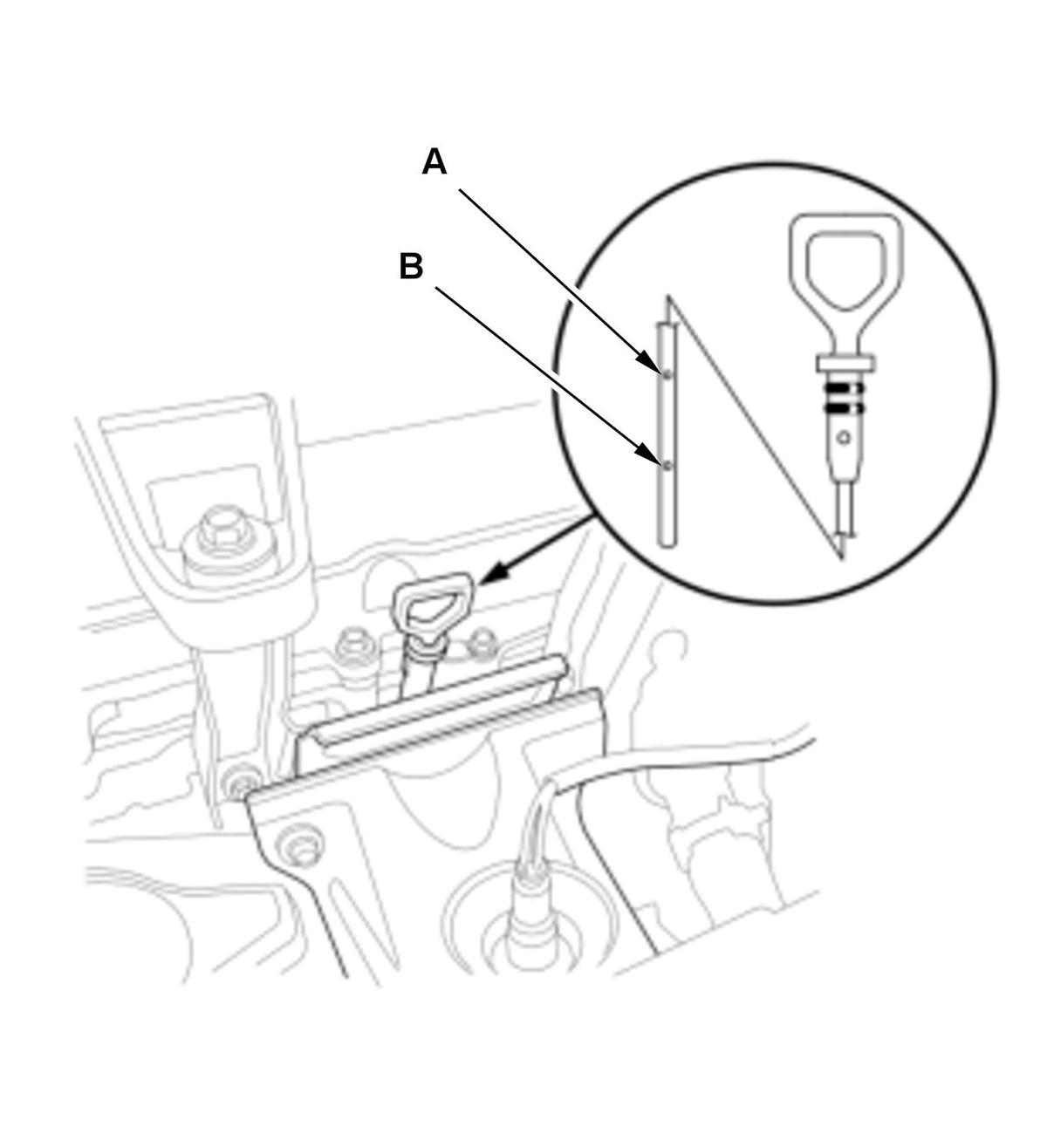

4. Check the engine oil level. It should be between the upper mark (A) and the lower mark (B).
5. If the engine oil level is near or below the lower mark check for oil leaks, and add the engine oil to bring it to the upper mark.
