Section 86 (Lubrication System - Testing & Troubleshooting (Hybrid))
>>
Description & Operation
>>

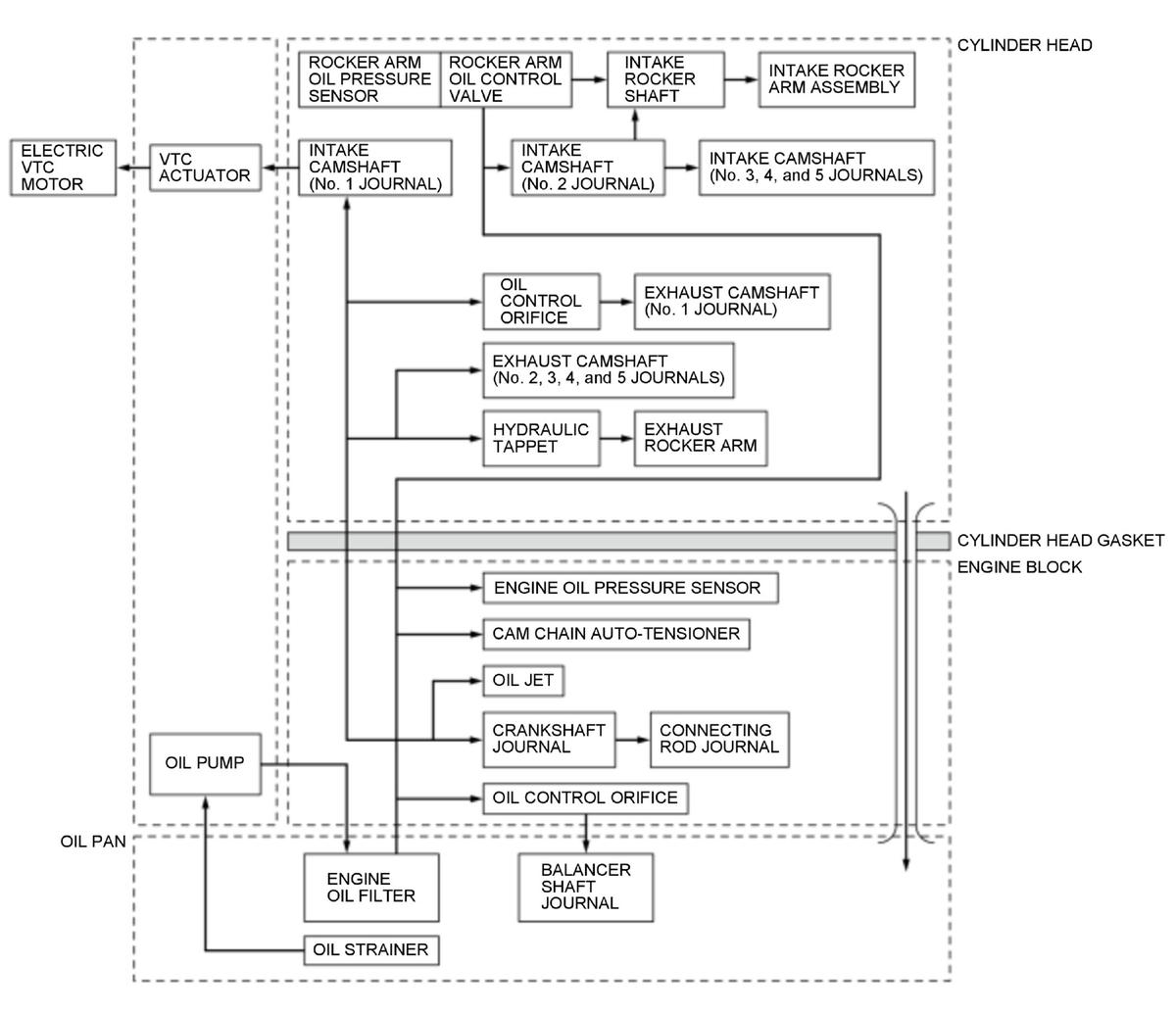

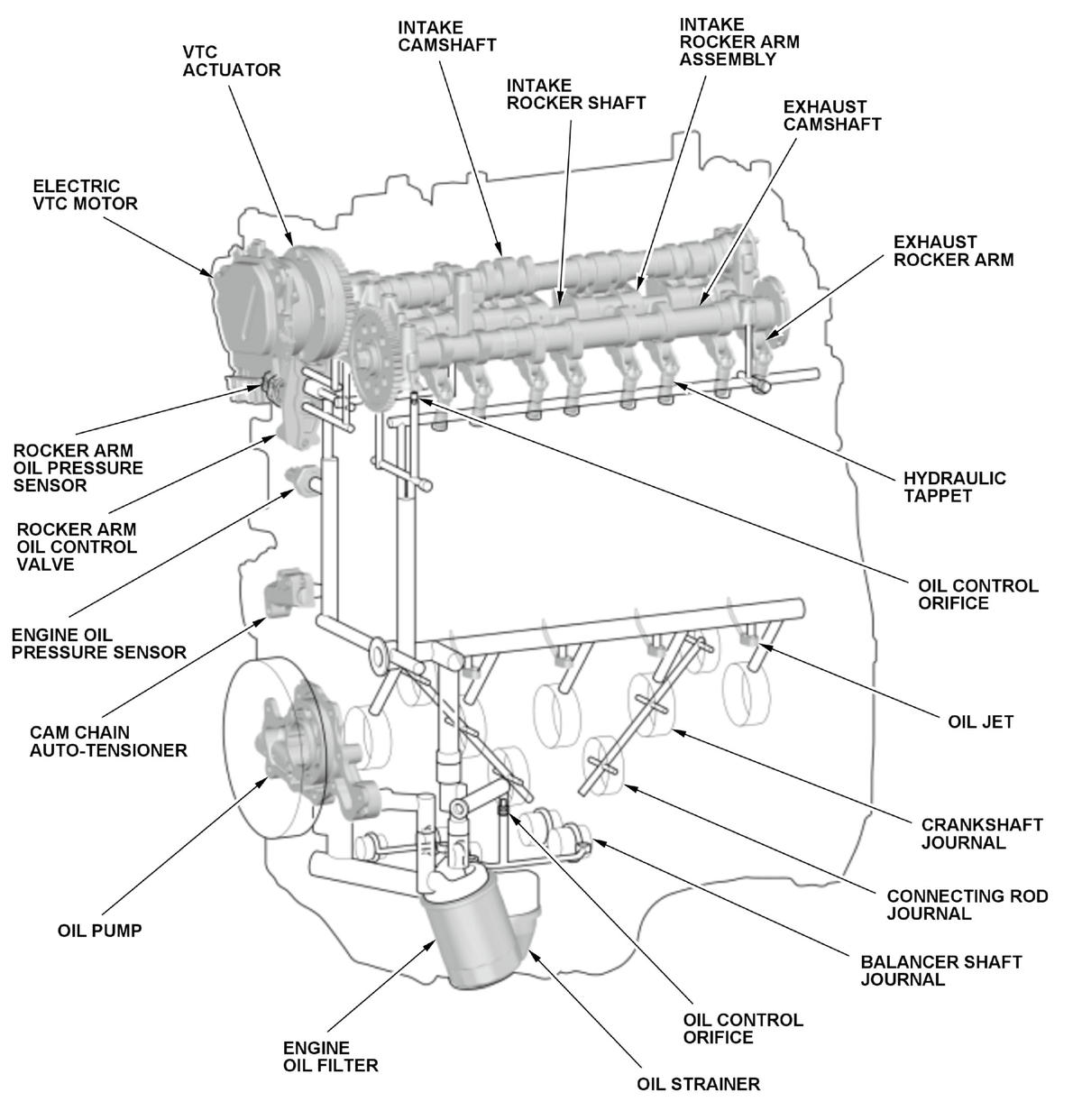

Engine Lubrication System Description - Hydraulic Circuit
Engine Lubrication System Description - Hydraulic Circuit
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
