Section 86 (Lubrication System - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

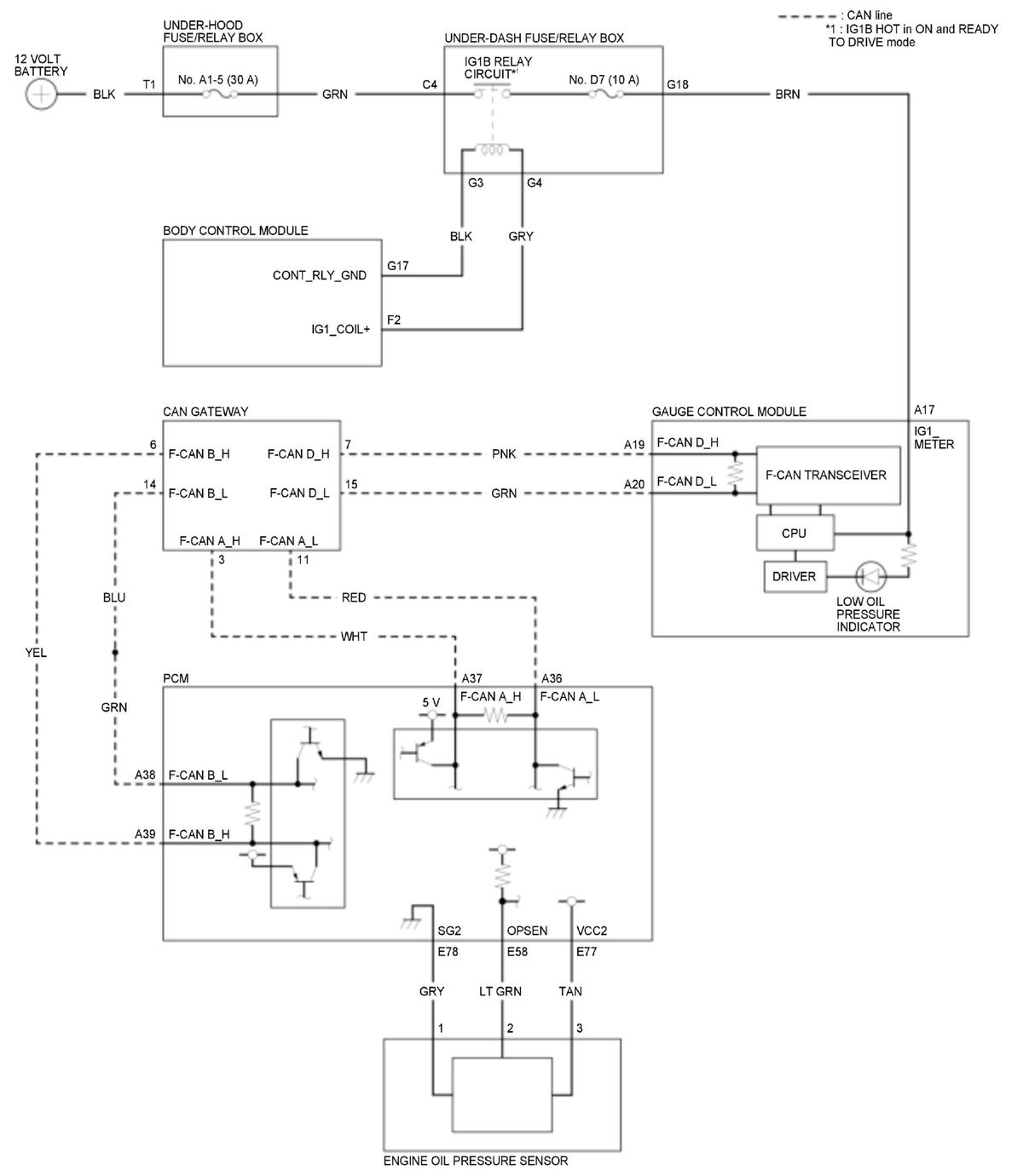

Engine Lubrication Circuit Diagram
Engine Lubrication Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
