Power Windows Circuit Diagram
WARNING: This page is about a different variant/trim than selected.

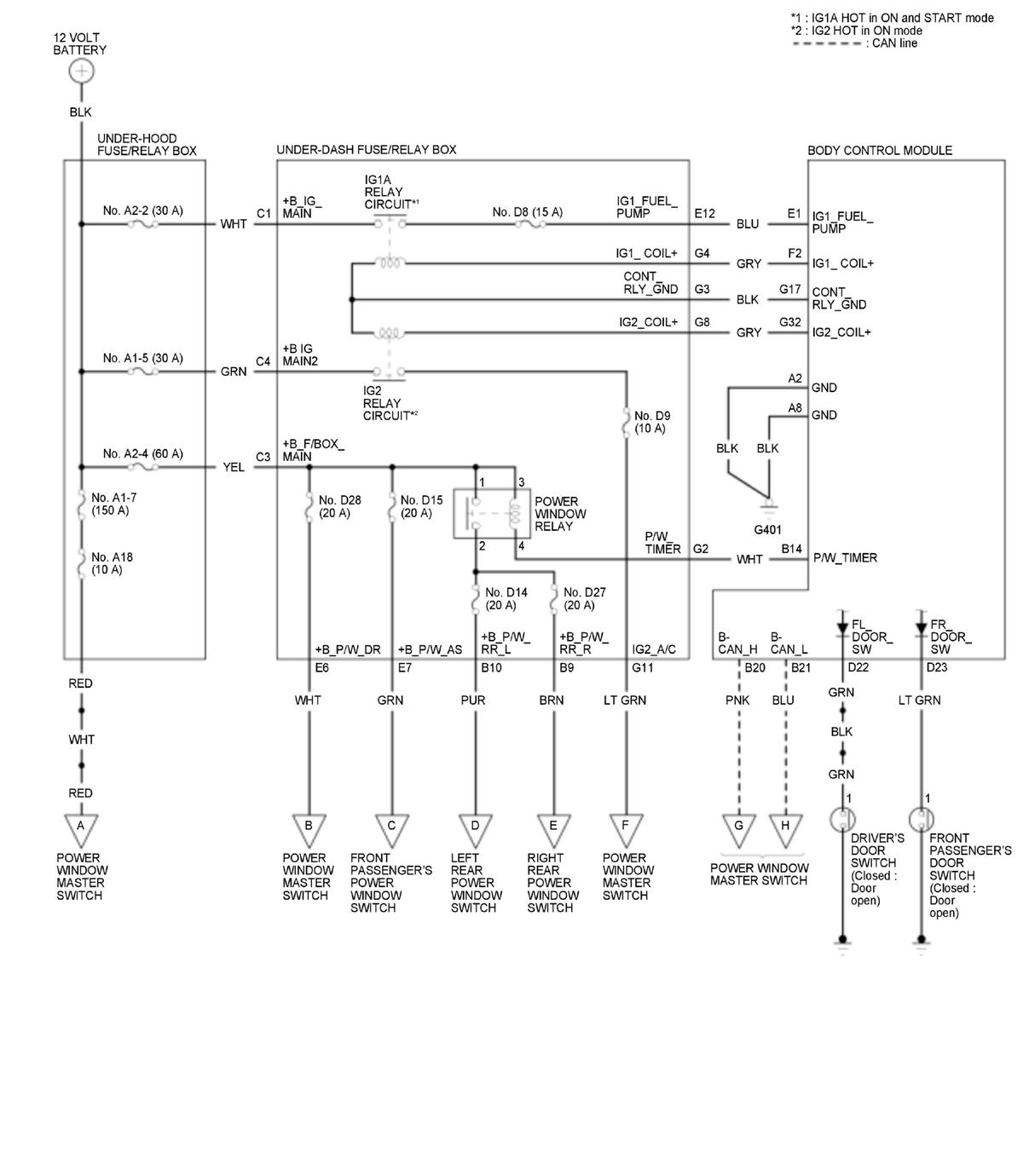

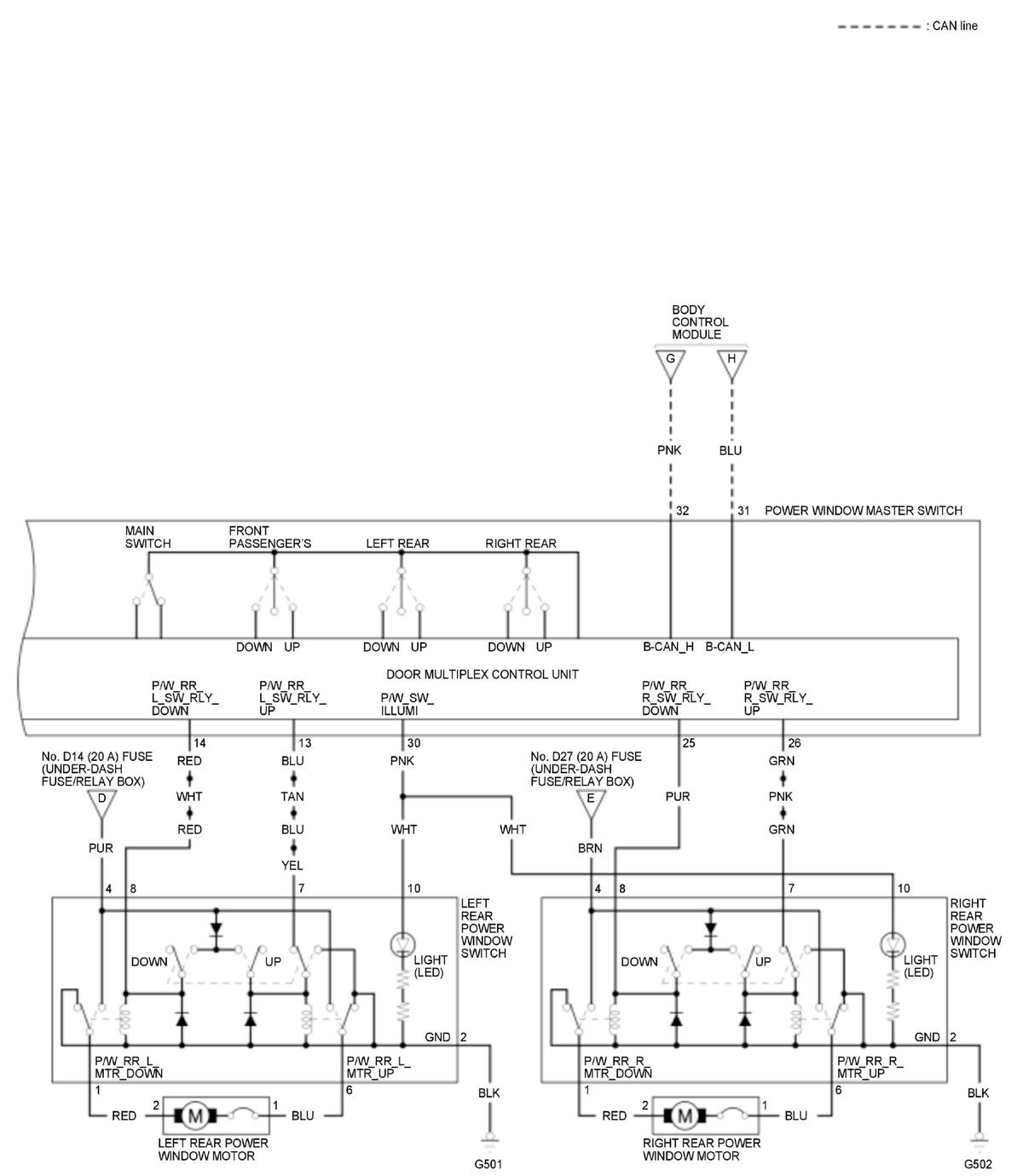

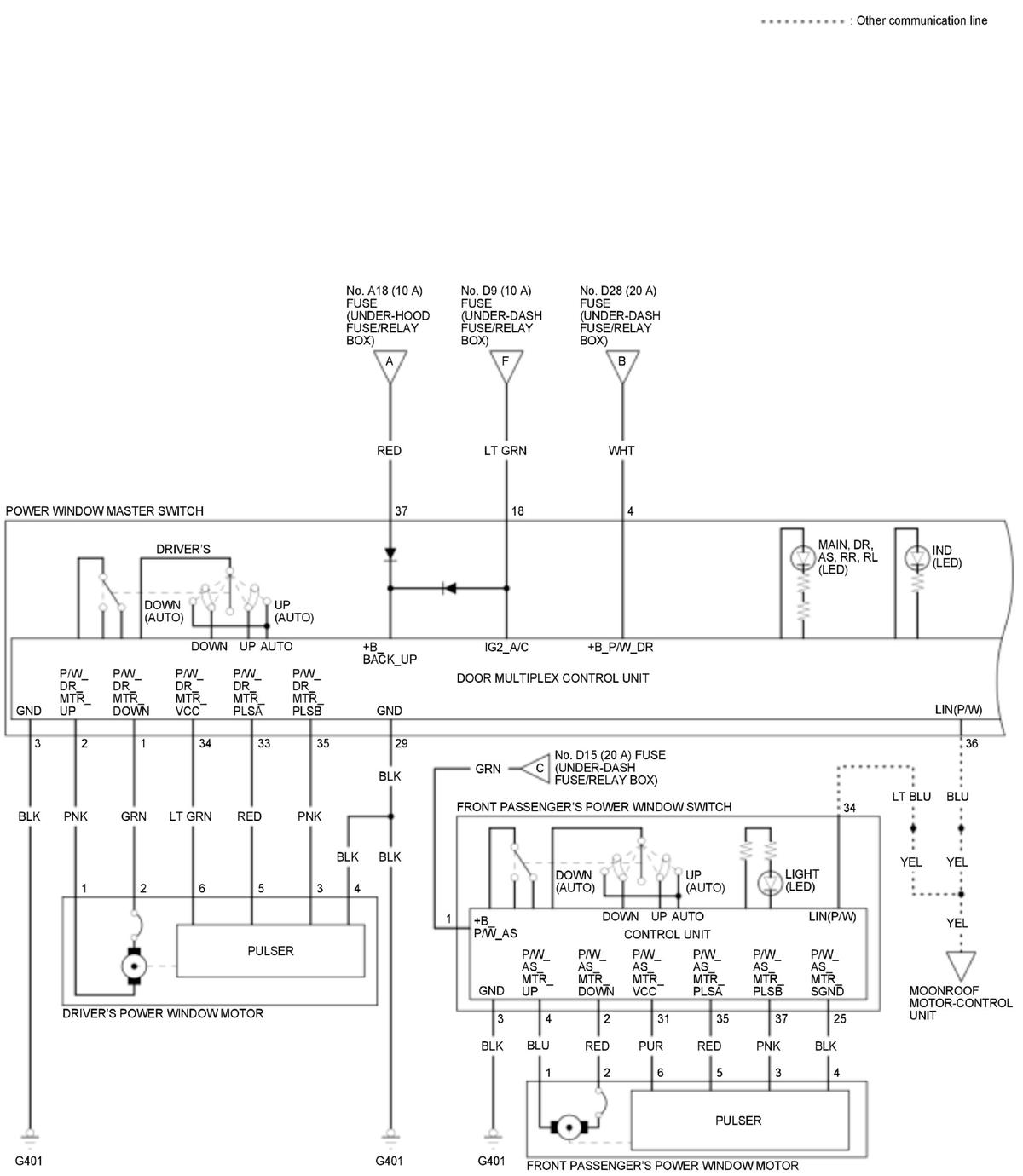

With front power windows AUTO UP/DOWN function
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

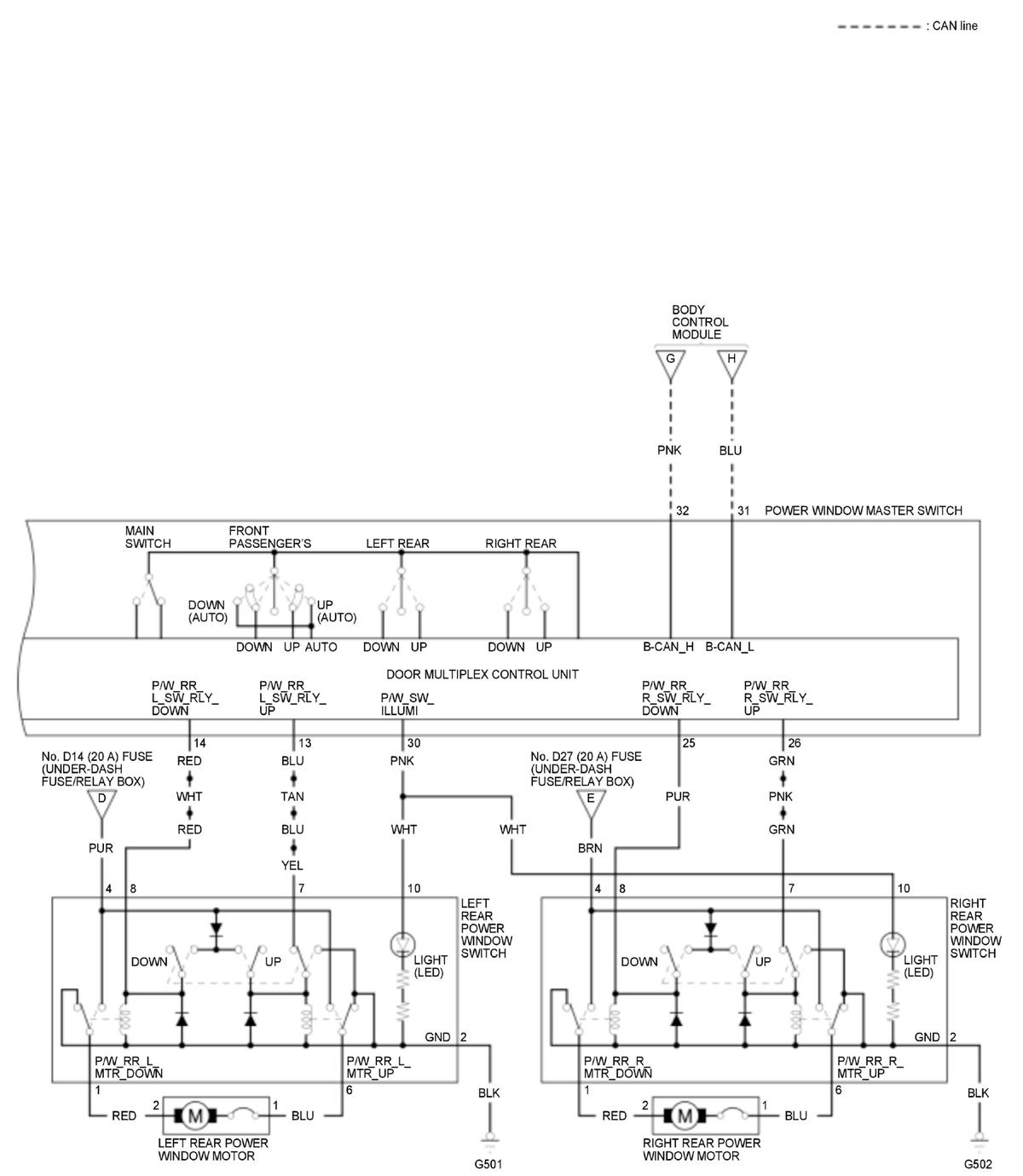

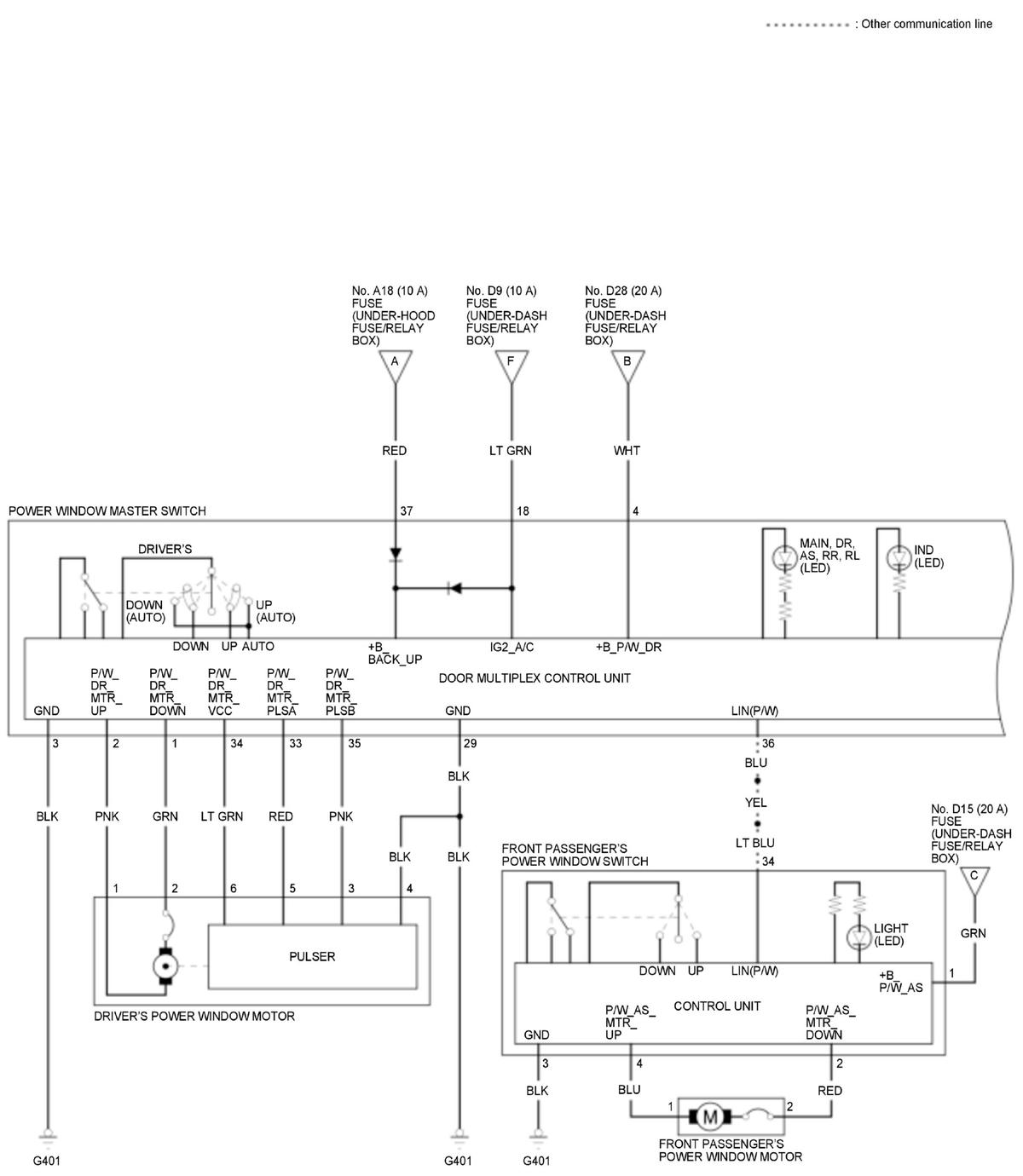

With driver's power window AUTO UP/DOWN function
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
