Removal and Installation

WARNING:

Flammable - Keep Fire Away

NOTE:

• Refer to the Fuel and Emissions Systems Service Precautions before disconnecting the fuel line.
• Fuel may cause flammable gas leaks and may result in fire. Keep sparks, flame and cigarettes away.

1. Fuel Fill Door Adapter - Remove
2. Mis-Fuel Inhibit Device - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Pull out the rubber cover (A). 2. Insert a small tip screwdriver into the 3 lock tabs (B) and lift up to release the mis-fuel inhibit device (C). NOTE:  Be careful not to damage the fuel fill pipe or the fuel fill pipe top side surface (D). Never reuse the mis-fuel inhibit device.

3. Nozzle Setting Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

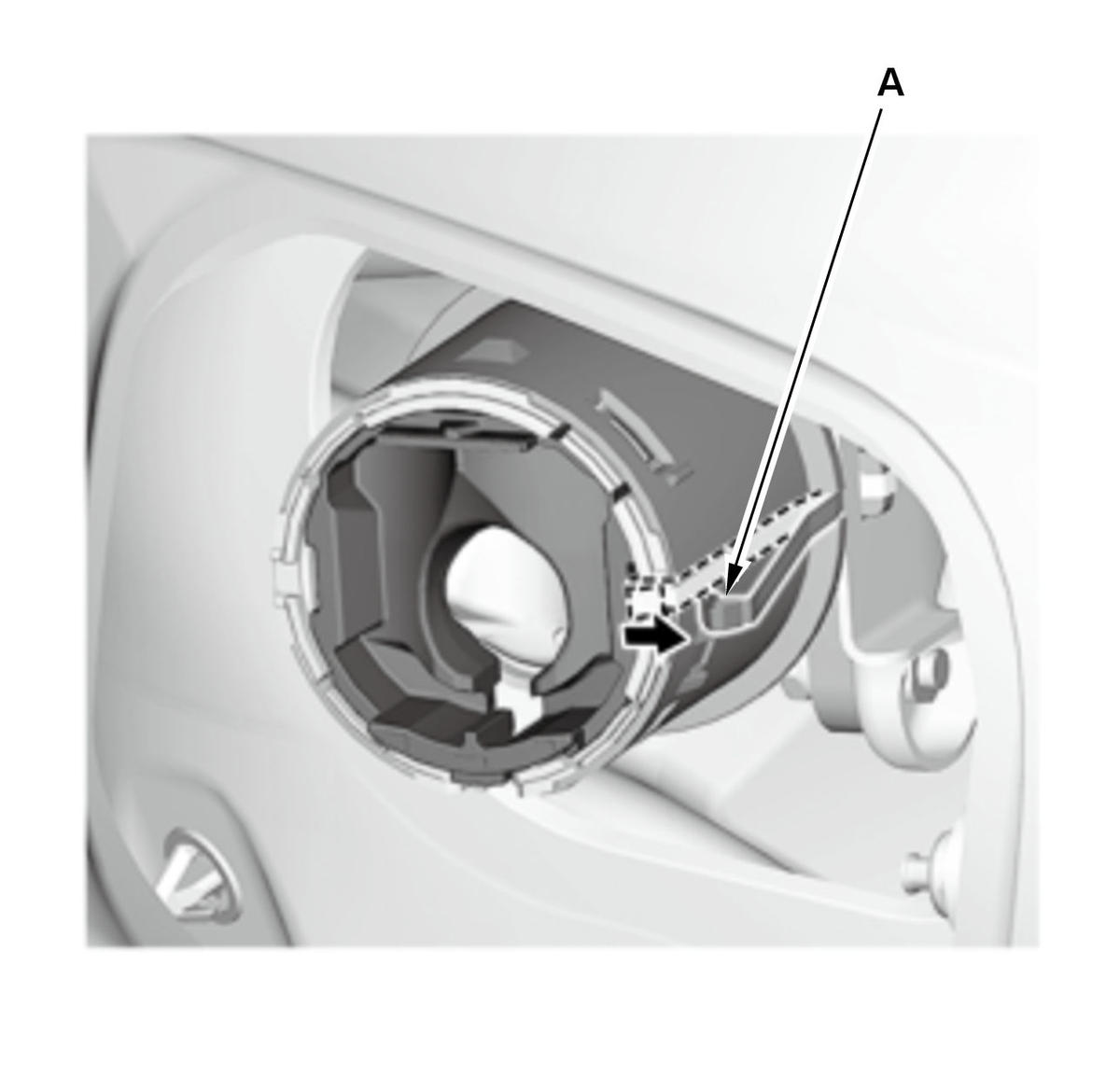

   1. Disengage the retainer (A) towards the direction show. NOTE:  If the retainer is damage, remove the fuel fill pipe bracket  and replace the retainer.

   Courtesy of HONDA, U.S.A., INC.

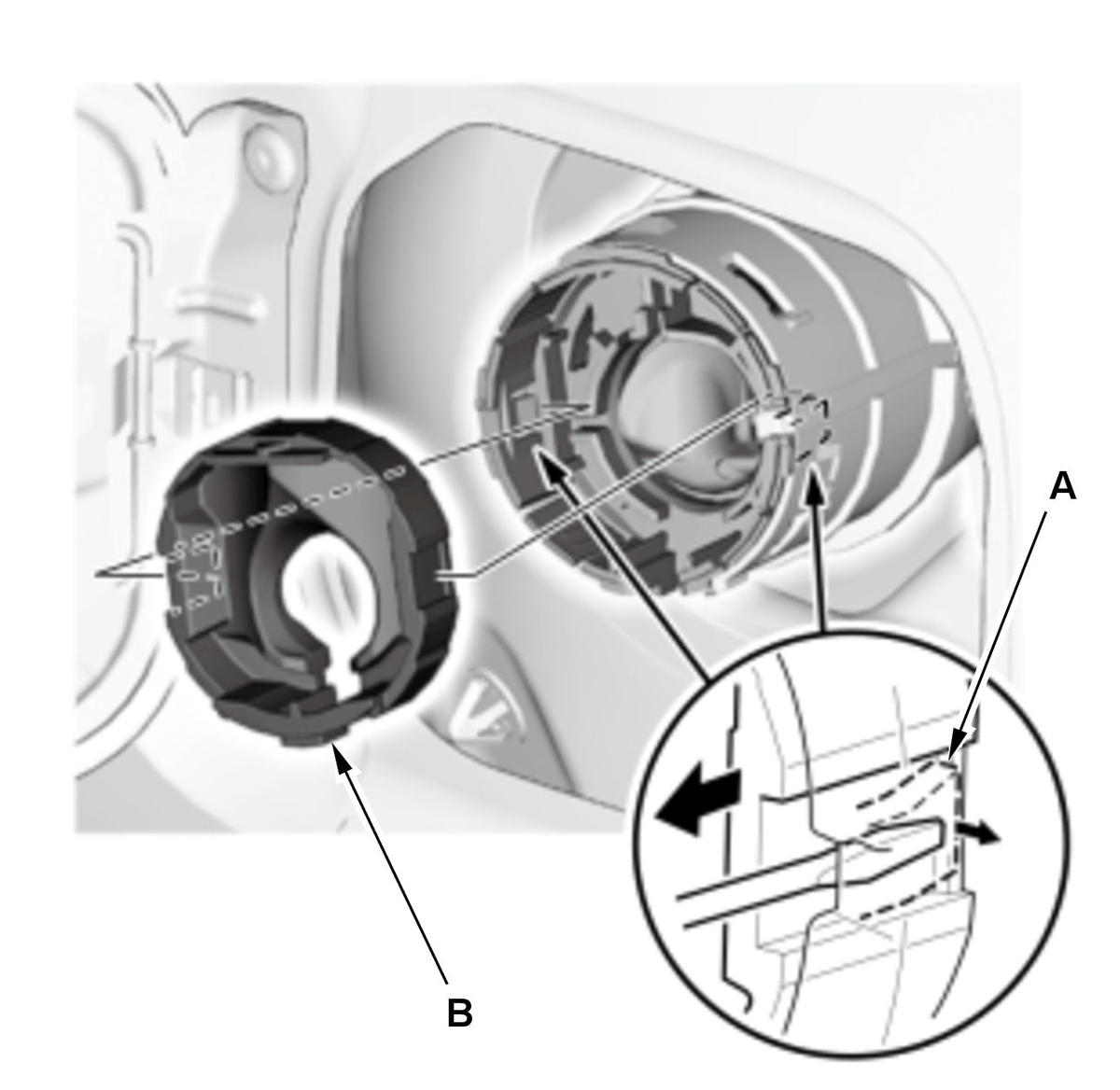

   2. Using a small tip screwdriver, insert it into the slots to disengage the tabs (A) while pulling the nozzle setting bracket (B).

4. Main Flap Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

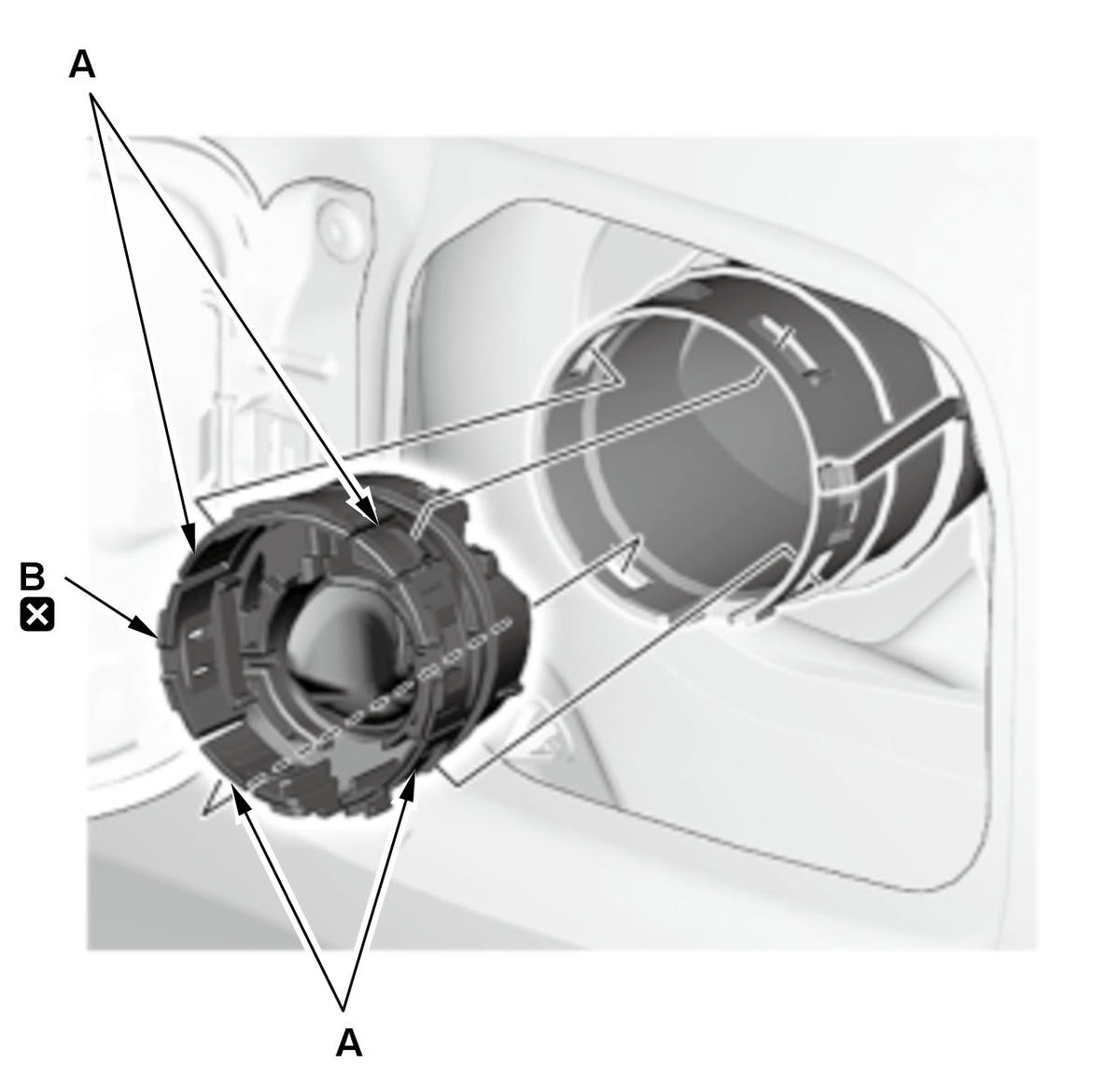

   1. Fold in the four lock tabs (A) and pull the main flap unit (B). NOTE:  It may be necessary to lightly pry under main flap unit. Be careful not to damage the fuel fill pipe.

5. All Removed Parts - Install

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Install the parts in the reverse order of removal. NOTE:  Align the part (A) on the mis-fuel inhibit device (B) and the fuel fill pipe (C). If needed, replace the cover (D).
