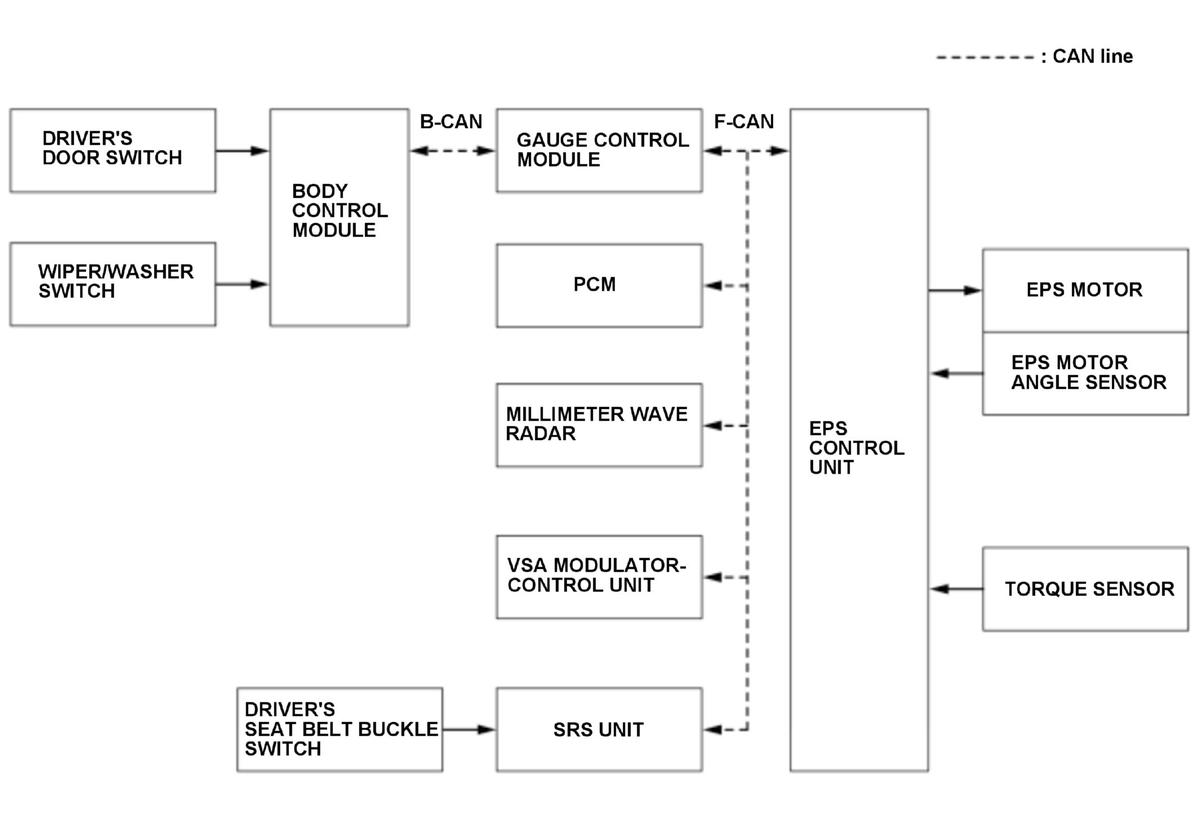

EPS System Description - System Diagram
WARNING: This page is about a different variant/trim than selected.
- The steering force of the steering wheel is detected by the torque sensor, and the signal is sent to the EPS control unit. The EPS control unit calculates the assistance torque based on the steering torque signal and vehicle speed signal, and activates the motor to assists the steering force.
- To activate the three-phase brushless motor properly, the motor angle sensor detects the motor angle, and sends the signal to the EPS control unit.
- The EPS control unit sends the motor load status to the PCM.
- The EPS control unit receives the vehicle behavior information from the VSA modulator-control unit.
- The EPS control unit assists the steering force when the EPS control unit receives the steering assist request from the millimeter wave radar.
- When the EPS system detects a problem, the EPS control unit stores the DTC, and sends the signal to the gauge control module to cause the EPS indicator to come on.
For locations of each component on vehicle, refer to Component Location Index:
- EPS control unit, EPS motor, Torque sensor, EPS motor angle sensor
- Gauge control module
- PCM
- VSA modulator-control unit
- SRS unit
- Driver's seat belt buckle switch
- Body control module
- Driver's door switch
- Wiper/washer switch
- Millimeter wave radar
F-CAN Communication Data
EPS System Receiving Signal
| Transmitting Unit | Signal Name |
|---|---|
| Gauge control module |
|
| PCM |
|
| Millimeter wave radar |
|
| VSA modulator-control unit |
|
| SRS unit |
|
EPS System Transmitting Signal
| Transmitting Unit | Signal Name |
|---|---|
| EPS control unit |
|
