EPS Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.
EPS Control Unit Connector for Inputs and Outputs
| Connector Index | ||
|---|---|---|
| EPS Control Unit Connector A (2P) | ||
| EPS Control Unit Connector B (6P) | ||
| EPS Control Unit Connector C (4P) |

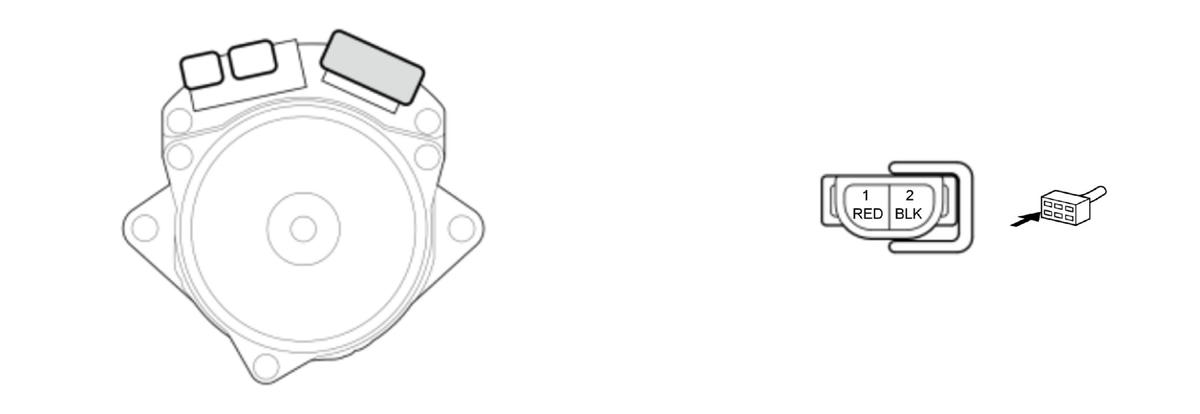

EPS Control Unit Inputs and Outputs for Connector A (2P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | +B_EPS | Power source for the EPS motor |
| 2 | GND | Ground for the EPS control unit |

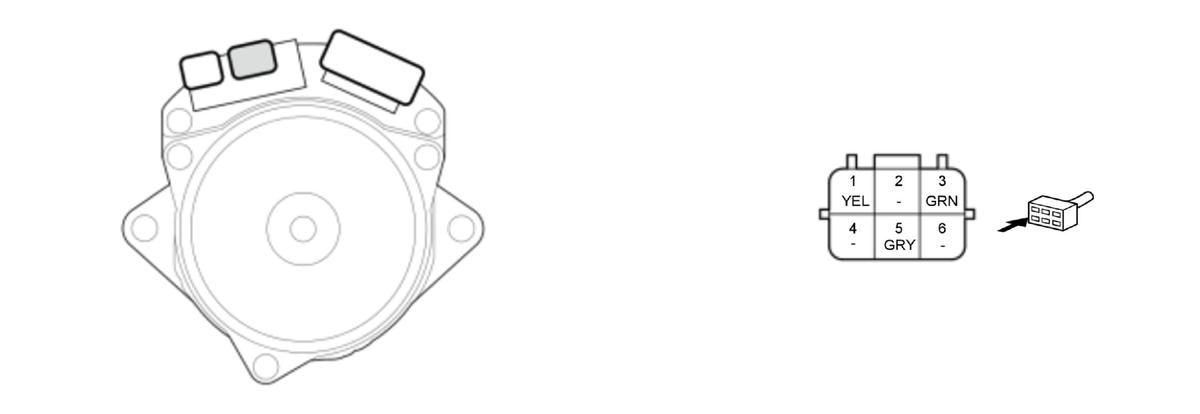

EPS Control Unit Inputs and Outputs for Connector B (6P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | F-CAN C_H | F-CAN communication circuit |
| 2 | Not used | --- |
| 3 | F-CAN C_L | F-CAN communication circuit |
| 4 | Not used | --- |
| 5 | IG1_VSA/ABS | Power source for activating the system |
| 6 | Not used | --- |

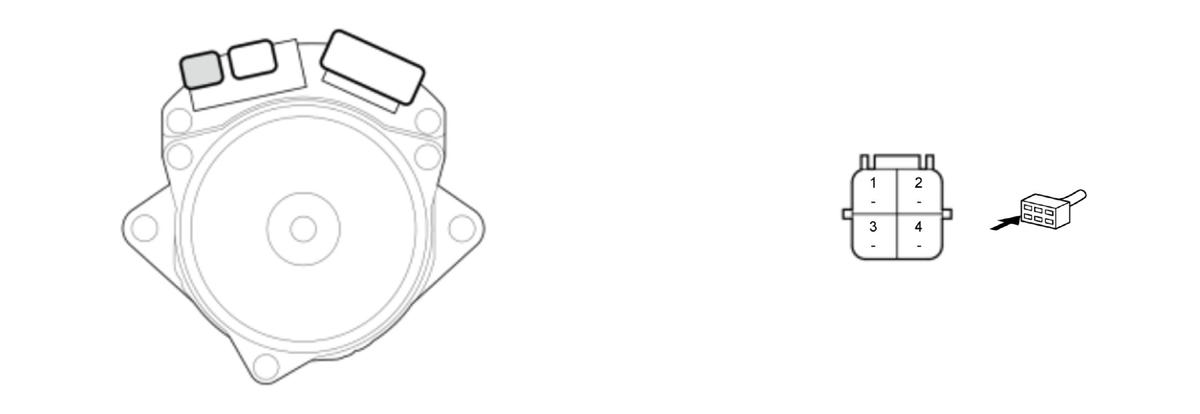

EPS Control Unit Inputs and Outputs for Connector C (4P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | T/S_VDD | Power source for the torque sensor |
| 2 | T/S_GND | Ground for the torque sensor |
| 3 | TSS | Detects torque sensor sub signal |
| 4 | TSM | Detects torque sensor main signal |
