PCM Removal and Installation: Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

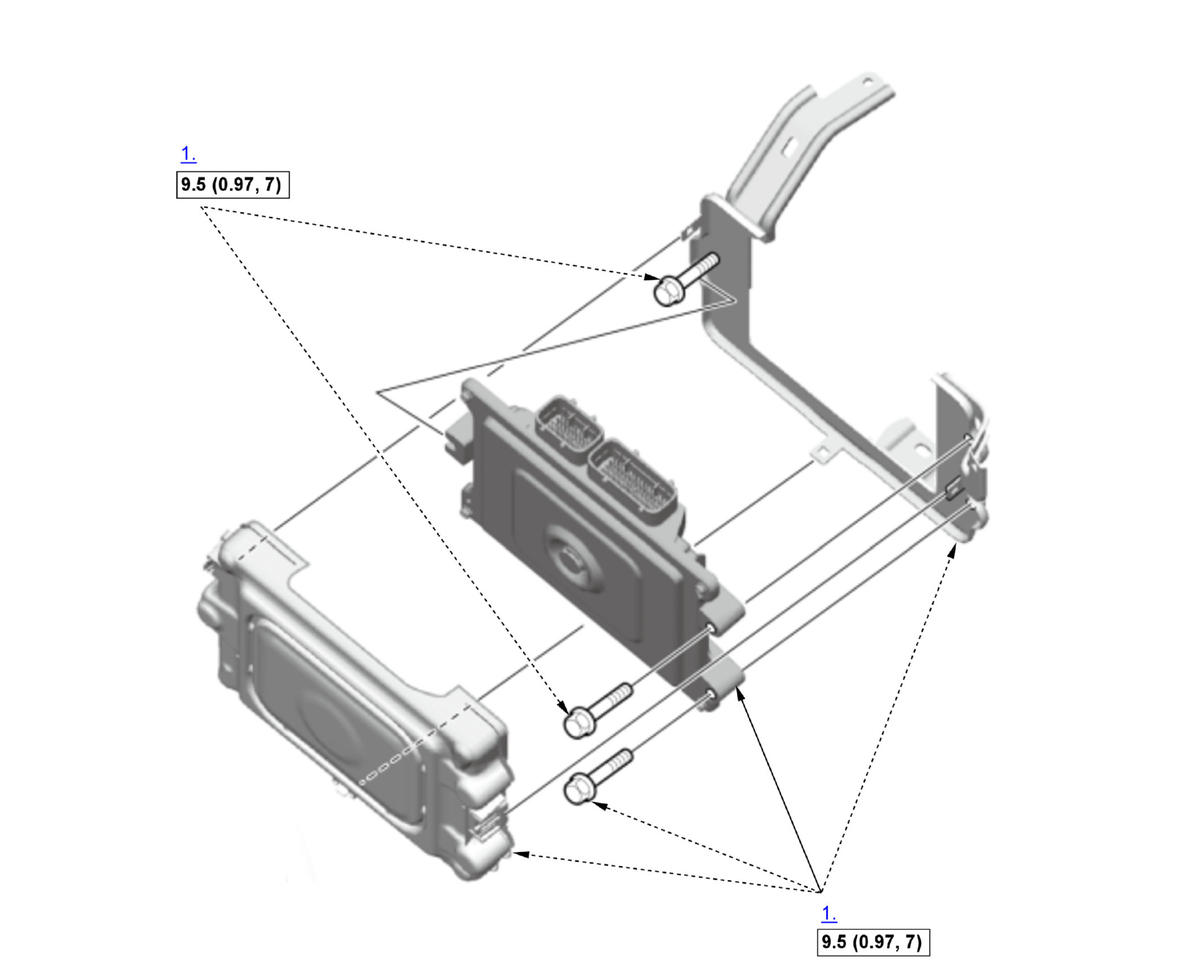

Fig 1: Exploded View Of PCM Components With Torque Specifications For Installation (1 Of 2)
GHH378513Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

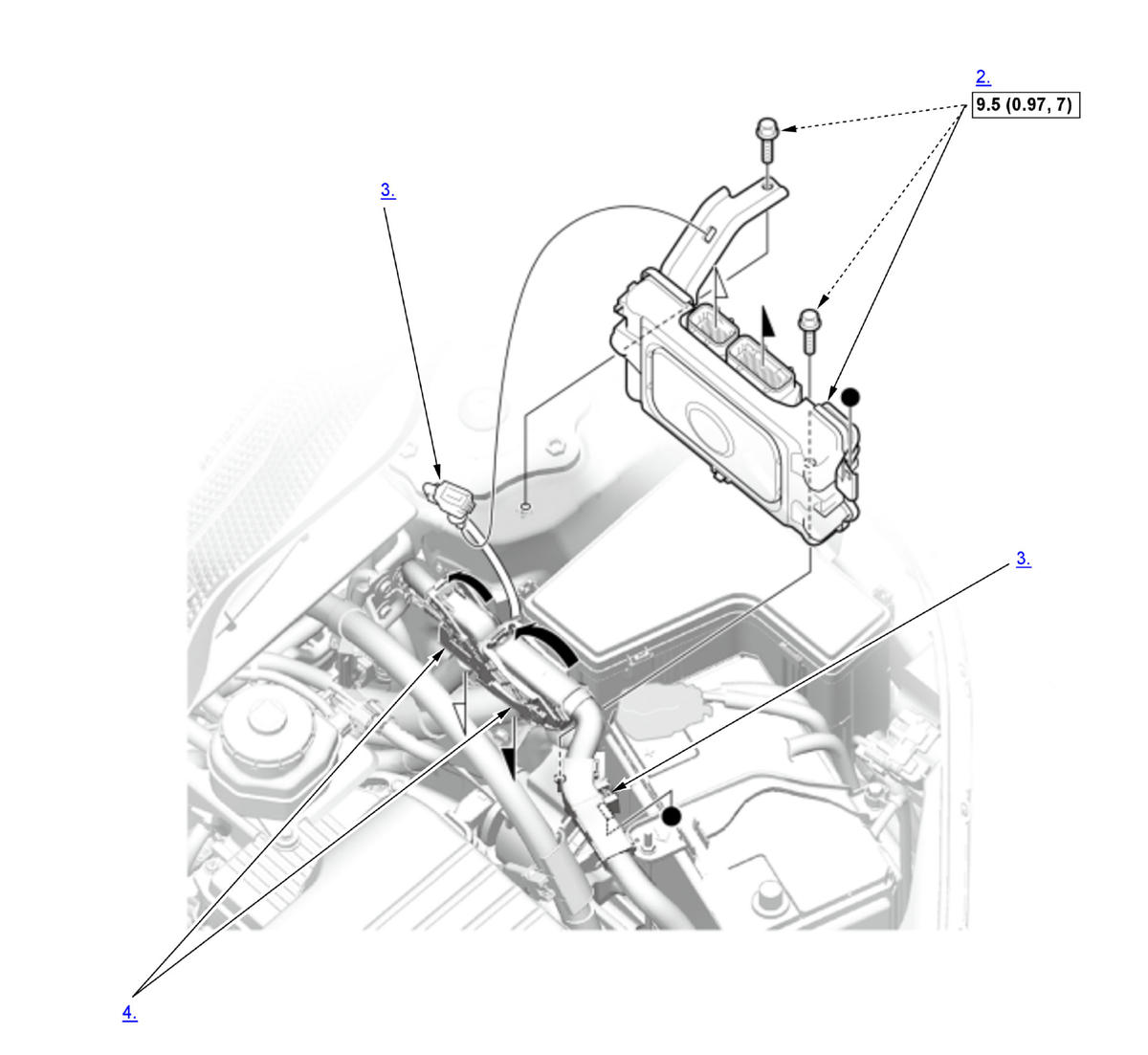

Fig 2: Exploded View Of PCM Components With Torque Specifications For Installation (2 Of 2)
GHH378514Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. PCM - Install
  2. PCM assembly - Install
  3. Harness Clamp - Install
  4. Connector (PCM) - Connect
  5. SCS - Open
    1. Exit the SCS mode with the HDS.

    Procedure After Replacing PCM

  6. VIN - Input
    1. Turn the vehicle to the ON mode.

    NOTE:  DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure.

    2. Manually input the VIN to the PCM with the HDS.
  7. Keyless Access System - Registration
  8. WRITE DATA (Engine Oil Life) - Select
    NOTE:  If the READ DATA (Engine Oil Life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure.

    1. Select the ECU Replacement Menu with the HDS, then select WRITE DATA, and follow the screen prompts.
  9. Other Procedures for PCM Replacement - Do
    1. If the READ DATA failed in "READ DATA (Engine Oil Life) - Select", do these procedures:
  10. DTC - Clear
    1. Clear the Pending or Confirmed DTCs with the HDS.
  11. PCM - Update
  12. CKP Pattern - Clear/Learn
