Engine Oil Pan Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

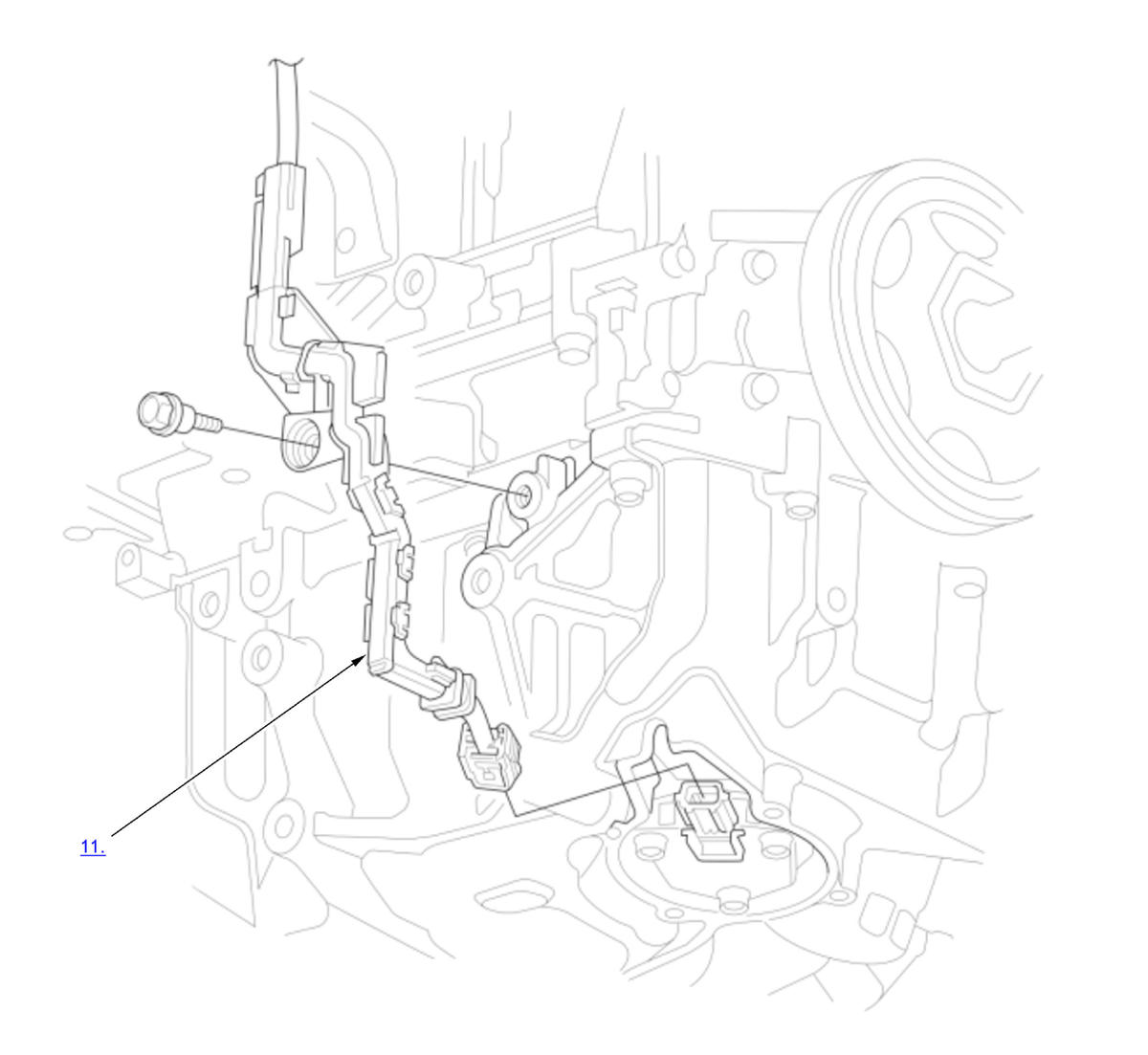

Fig 1: Exploded View Of Engine Oil Pan Components For Removal (1 Of 2)
GHH378475Courtesy of HONDA, U.S.A., INC.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

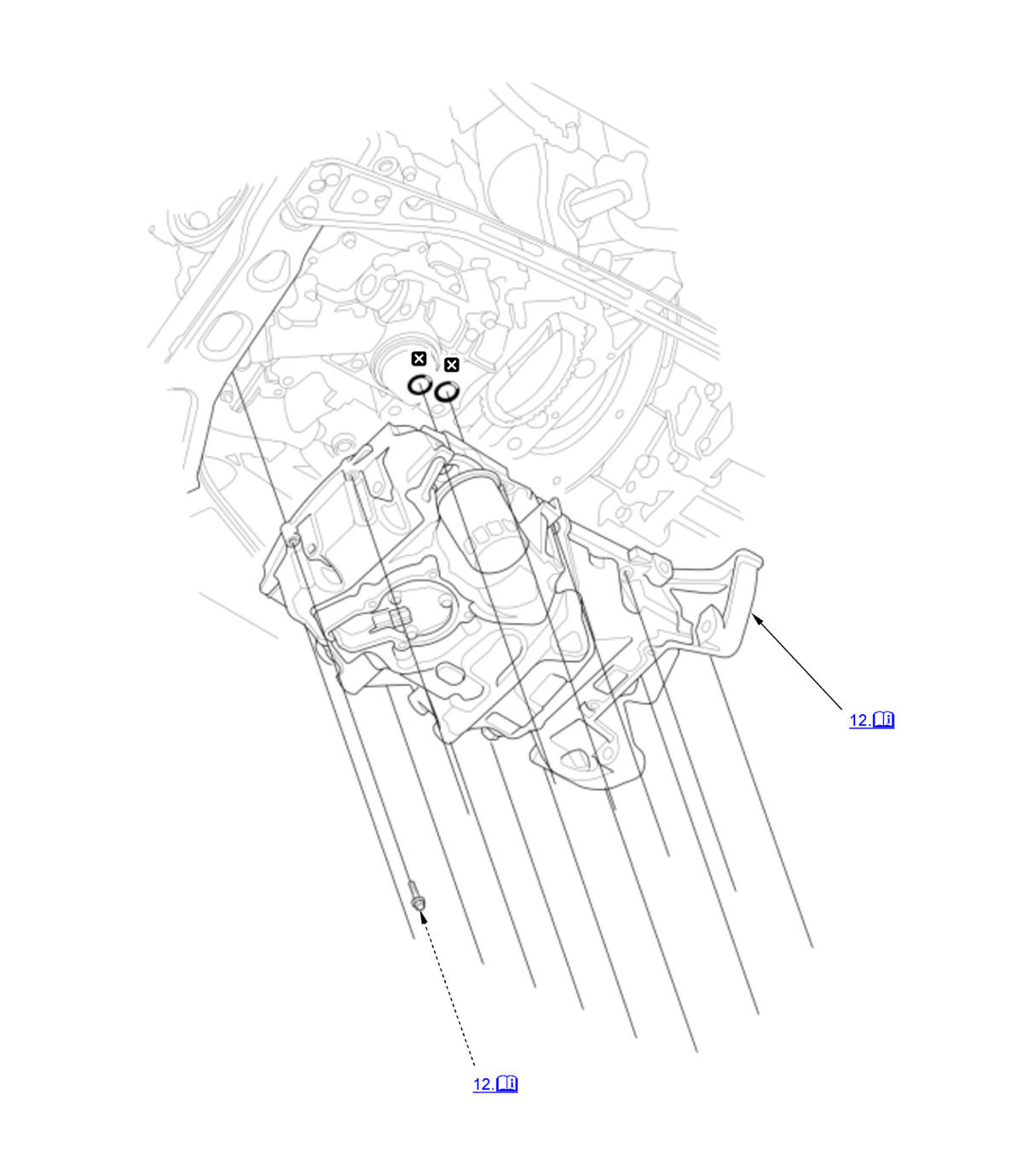

Fig 2: Exploded View Of Engine Oil Pan Components For Removal (2 Of 2)
GHH378476Courtesy of HONDA, U.S.A., INC.
Replace
  1. Engine Undercover - Remove
  2. Engine Oil - Drain
  3. Exhaust Pipe A - Remove
  4. TWC Bracket - Remove
  5. Electric A/C Compressor - Move

    NOTE:

    • Do not disconnect the connector (electric A/C compressor).
    • Do not disconnect the suction hose and the discharge pipe.
    • Do not bend the suction hose and the discharge hose excessively.
    • Hang the electric A/C compressor with a wire tie.
  6. Intermediate Shaft Assembly Mounting Bolt - Remove
  7. CKP Sensor Cover - Remove
  8. Lower Torque Rod and Lower Torque Rod Bracket - Remove
  9. Flywheel Cover - Remove
  10. Lower Transmission (e-CVT) Mounting Bolt - Remove
  11. Engine Oil Level Sensor Subharness - Remove (With Engine Oil Level Sensor)
  12. Oil Pan - Remove

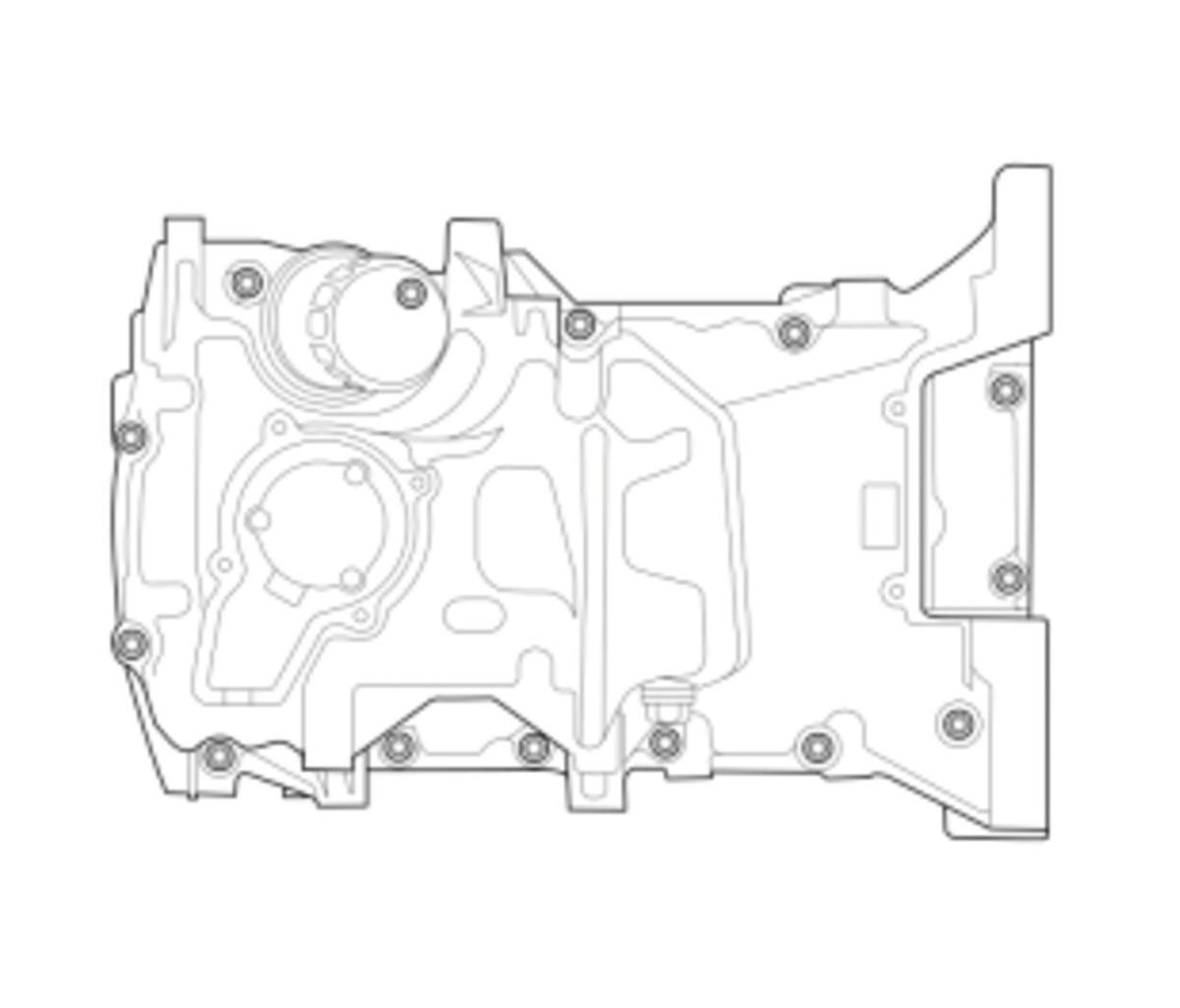

    GHH378477Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the oil pan mounting bolts.

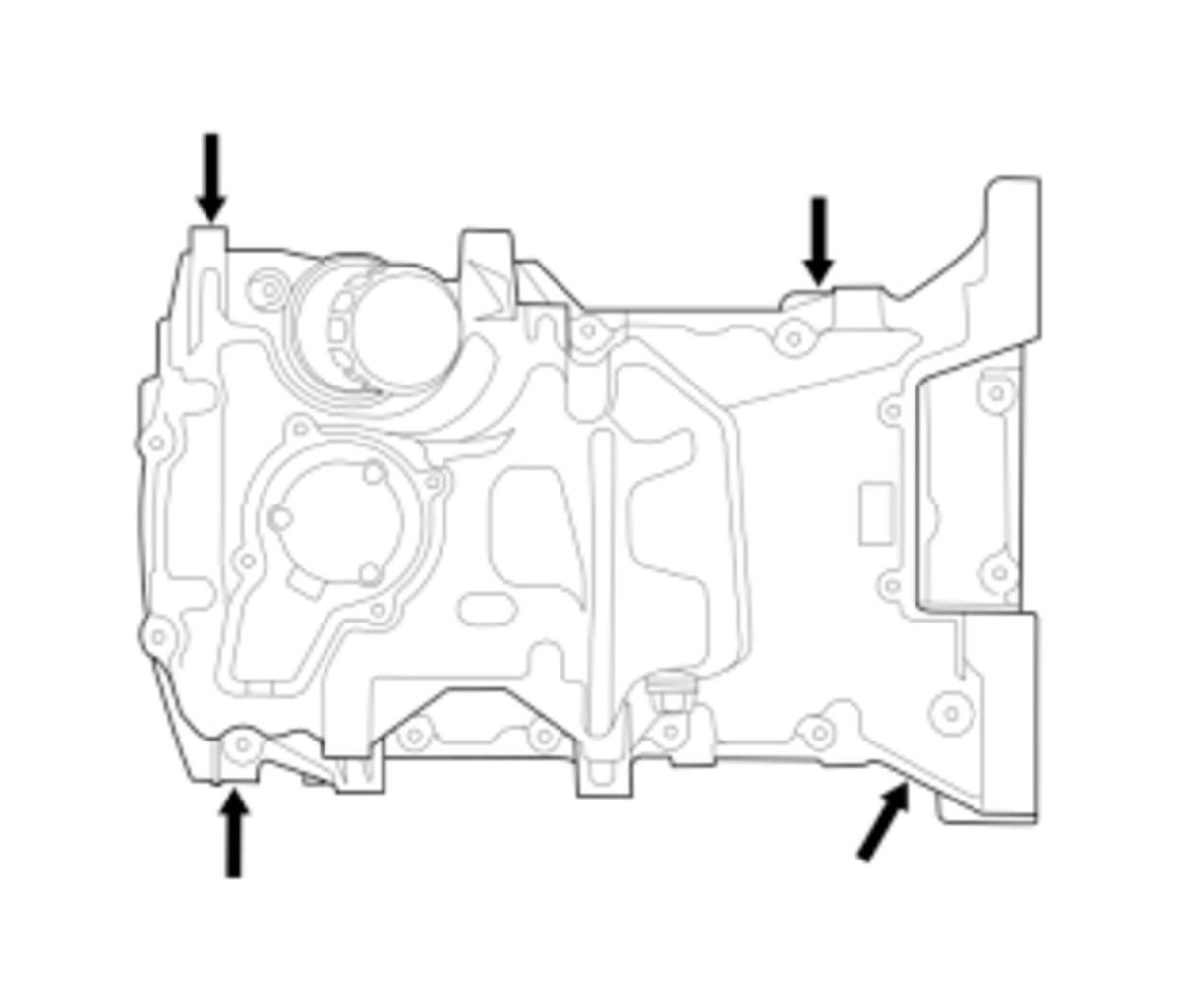

    GHH378478Courtesy of HONDA, U.S.A., INC.
    		 2. Using a flat blade screwdriver, separate the oil pan from the lower block in the places shown.
