Oil Pump, Pulley End Crankshaft Oil Seal, and Cam Chain

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

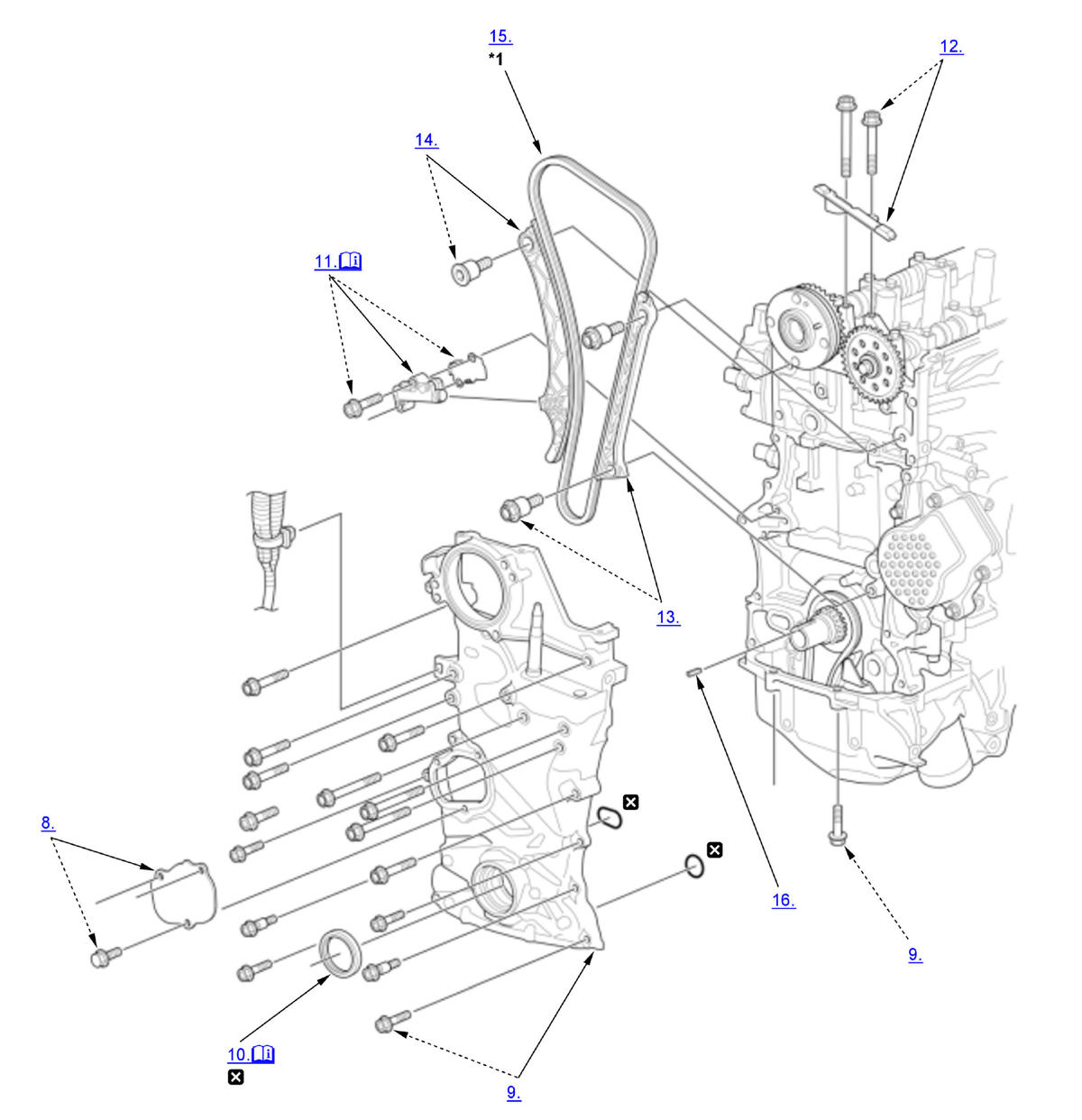

Fig 1: Exploded View Of Oil Pump, Pulley End Crankshaft Oil Seal, And Cam Chain Components For Removal
GHH378425Courtesy of HONDA, U.S.A., INC.
Replace
*1 These parts have inspection items
  1. 12 Volt Battery Terminal - Disconnect
  2. Right Front Wheel - Remove
  3. Engine Undercover - Remove

    NOTE:  Remove the necessary part(s).

  4. Crankshaft Pulley - Remove
  5. Cylinder Head Cover - Remove
  6. Electric VTC Motor - Remove
  7. Side Engine Mount - Remove
  8. Chain Case Cover - Remove (if necessary)
  9. Oil Pump - Remove
  10. Pulley End Crankshaft Oil Seal - Remove (if necessary)

    NOTE:  Check the pulley end crankshaft oil seal for damage. If the pulley end crankshaft oil seal is damaged, remove the pulley end crankshaft oil seal.

  11. Cam Chain Auto-Tensioner - Remove
    GHH378427Courtesy of HONDA, U.S.A., INC.

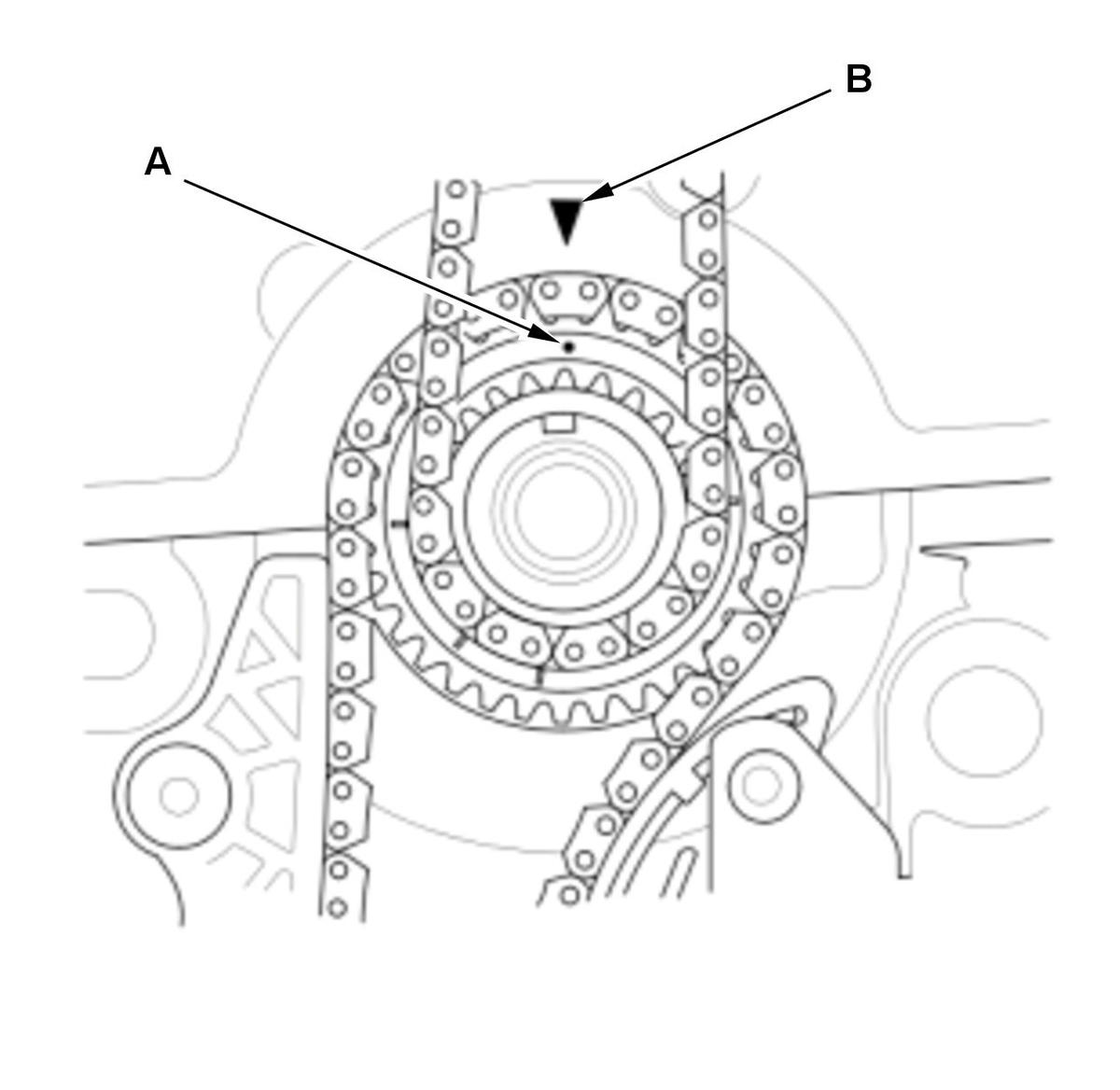

    		 1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the engine block.
    GHH378428Courtesy of HONDA, U.S.A., INC.
    		 2. Align the mark (A) on the VTC actuator with the mark (C) on cam chain guide B.
    GHH378429Courtesy of HONDA, U.S.A., INC.

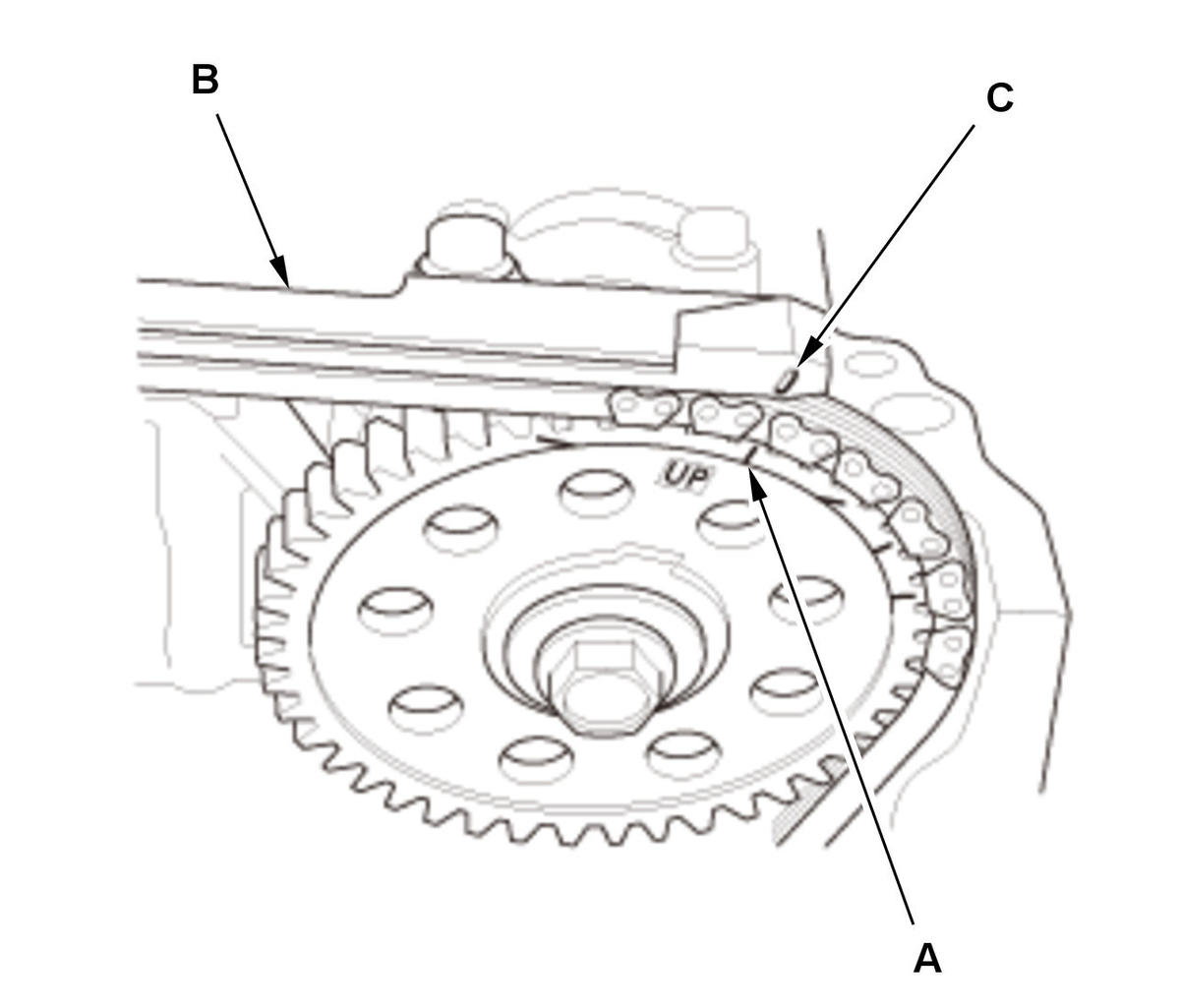

    		 3. Align the mark (A) on the exhaust camshaft sprocket with the mark (C) on cam chain guide B.
    GHH378430Courtesy of HONDA, U.S.A., INC.

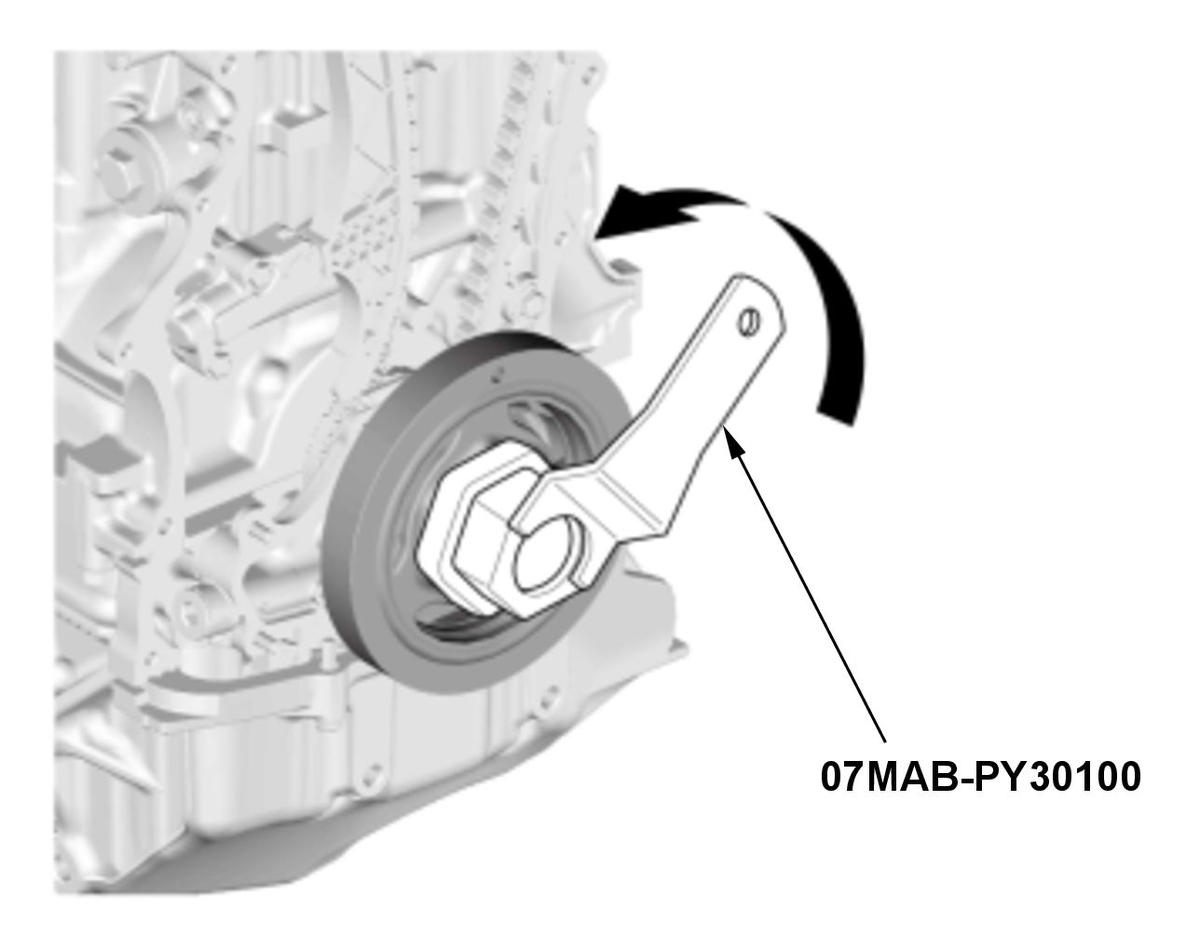

    		 4. Loosely install the crankshaft pulley.

    5. Turn the crankshaft counterclockwise to compress the cam chain auto-tensioner.
    GHH378431Courtesy of HONDA, U.S.A., INC.

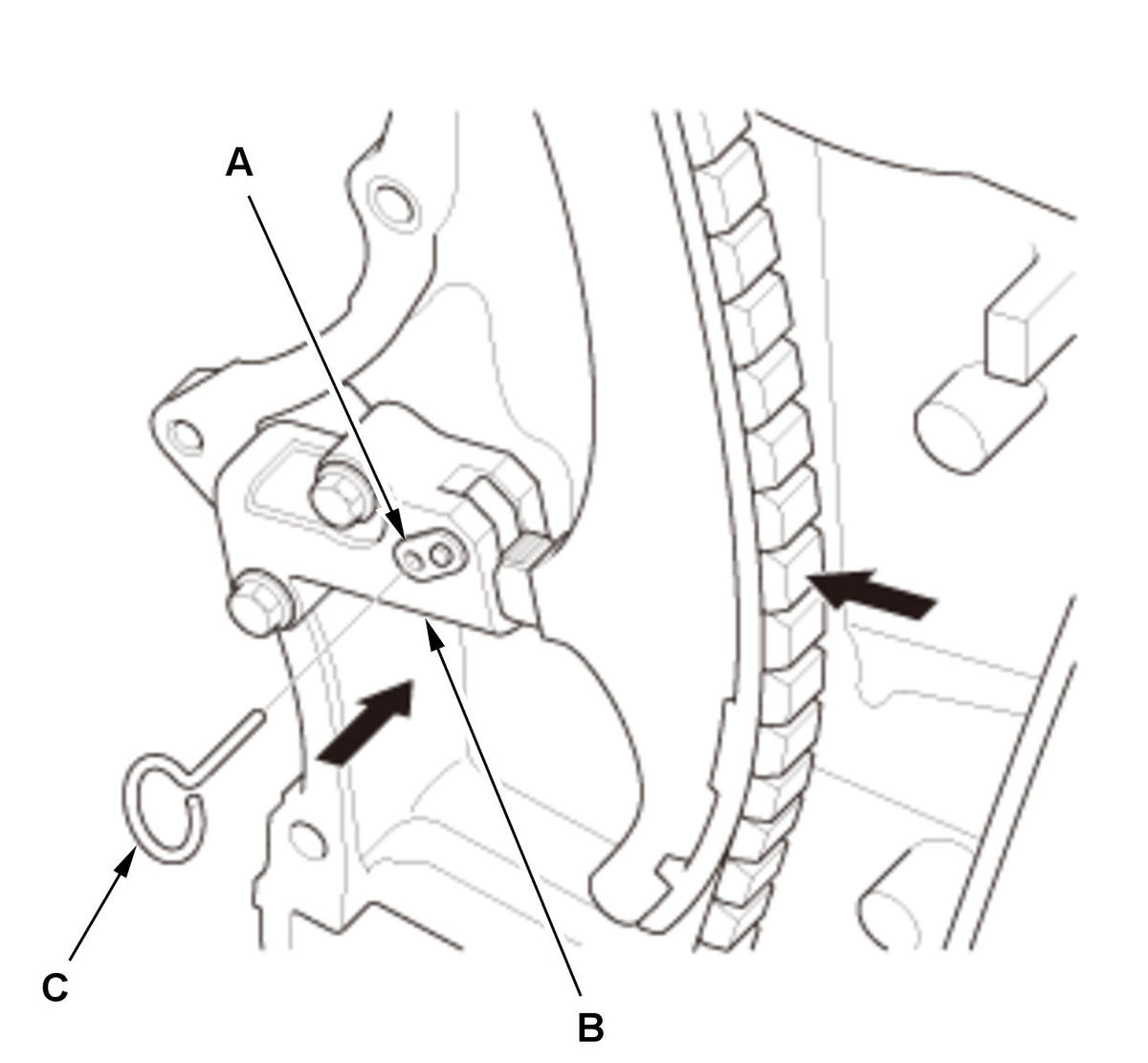

    		 6. Rotate the crankshaft counterclockwise to align the holes on the lock (A) and the cam chain auto-tensioner (B).

    7. Insert a 1.2 mm (0.047 in) diameter pin (C) into the holes.

    8. Turn the crankshaft clockwise to secure the pin.

    NOTE:  If the holes in the lock and the cam chain auto-tensioner do not align, continue to rotating the crankshaft counterclockwise until the holes align, then install the pin.
    GHH378432Courtesy of HONDA, U.S.A., INC.

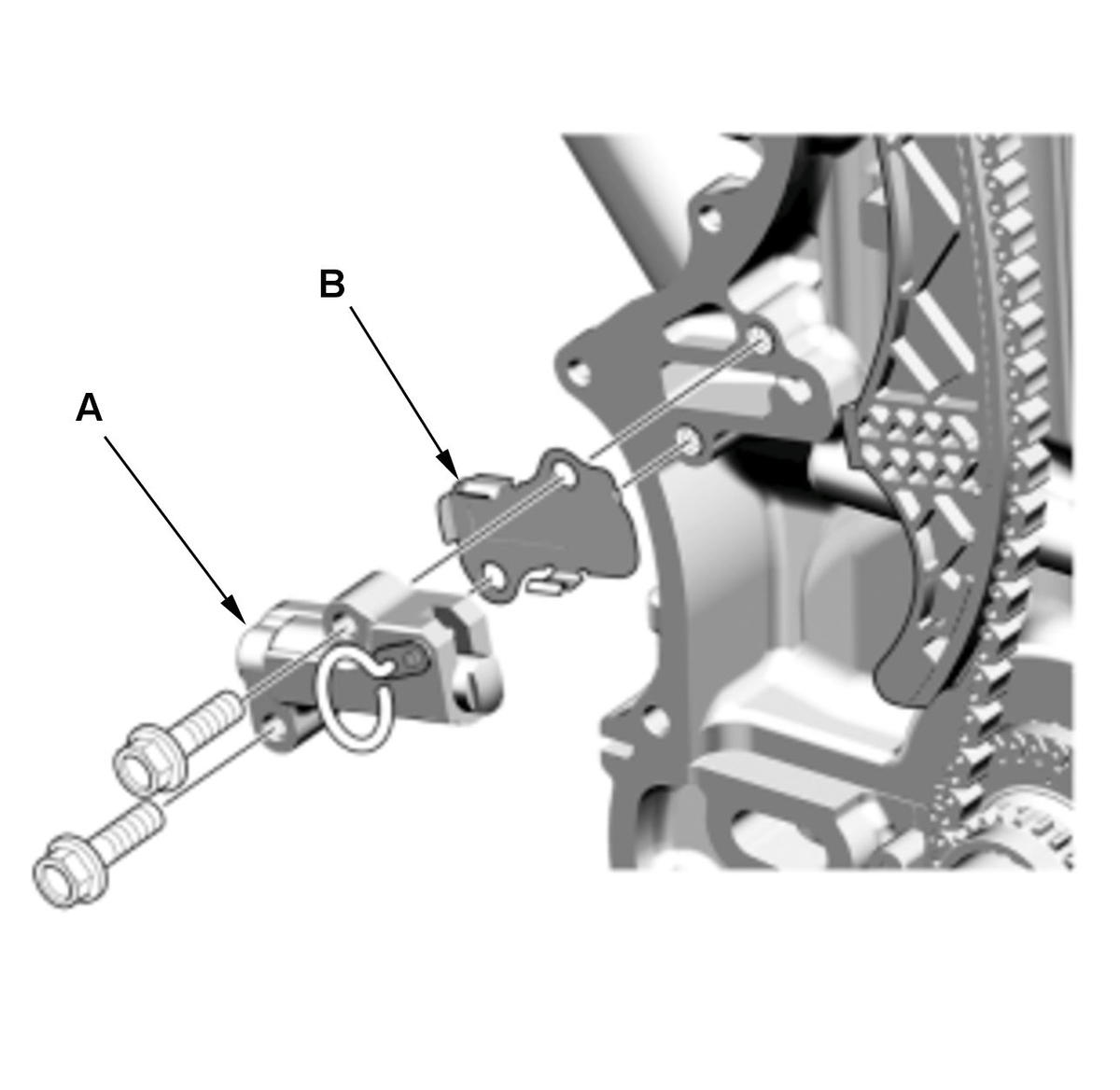

    		 9. Remove the cam chain auto-tensioner (A) and the cam chain auto-tensioner filter (B).

    NOTE:  Check the cam chain auto-tensioner filter for damage. If the filter is damaged, replace it.

    10. Remove the crankshaft pulley.
  12. Cam Chain Guide B - Remove
  13. Cam Chain Guide - Remove
  14. Cam Chain Tensioner Arm - Remove
  15. Cam Chain - Remove
  16. Key - Remove (if necessary)
