Crankshaft Pulley

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

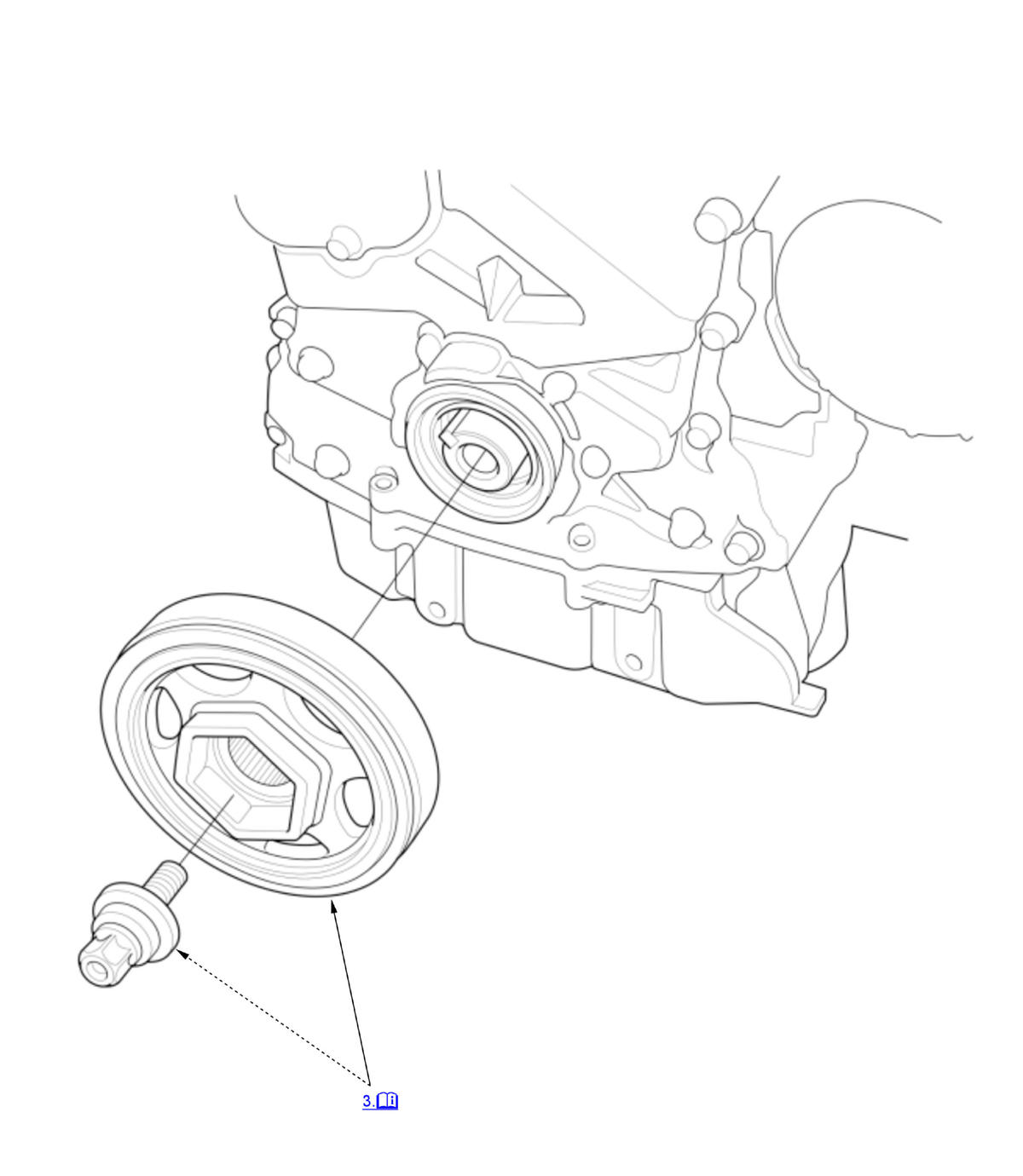

Fig 1: Exploded View Of Crankshaft Pulley Components For Removal

Courtesy of HONDA, U.S.A., INC.

Crankshaft Pulley - Remove

Courtesy of HONDA, U.S.A., INC.

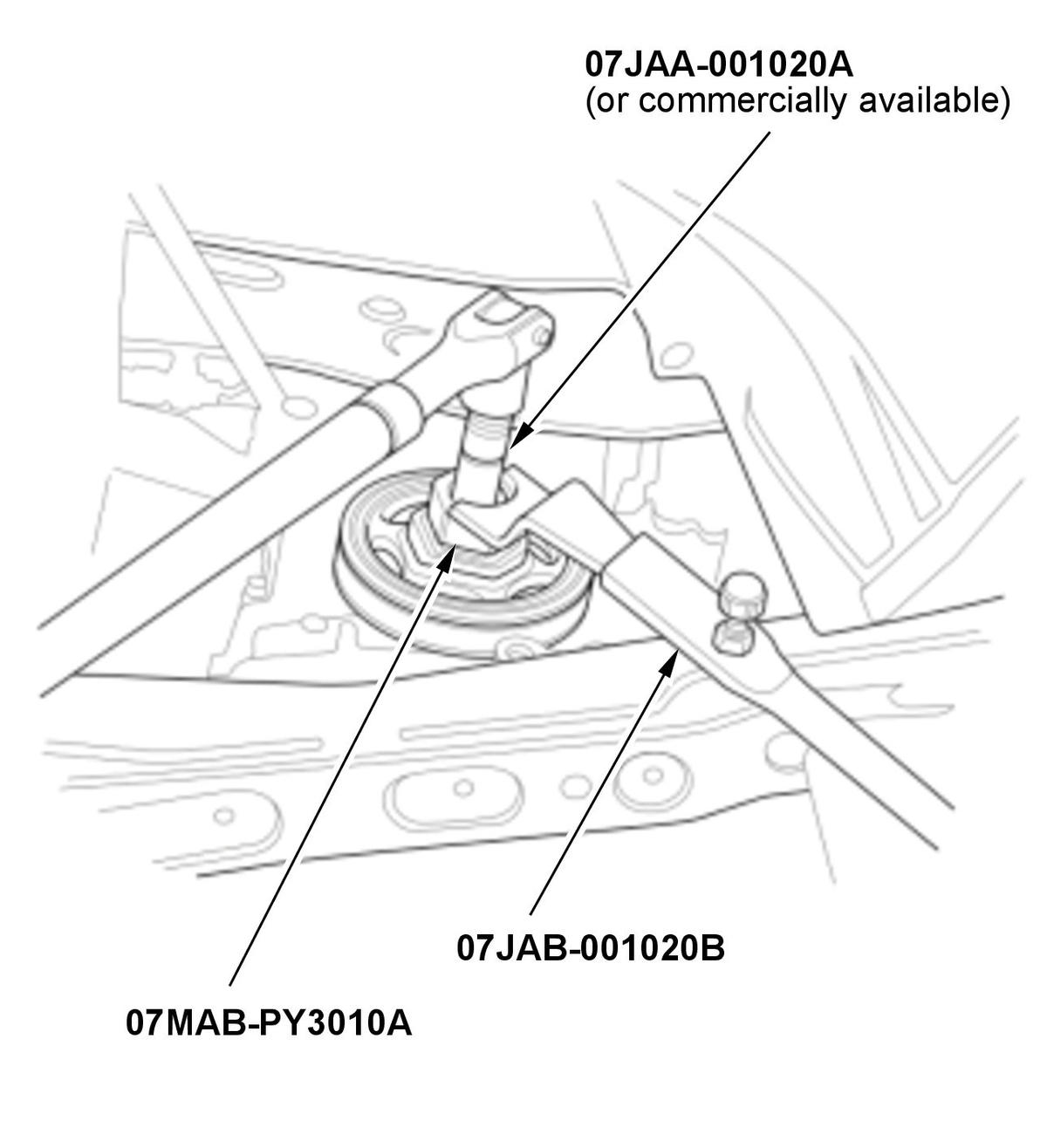

1. Hold the crankshaft pulley with the holder handle and the holder attachment, 50 mm, offset.

2. Remove the pulley bolt with a socket, 19 mm and a breaker bar, then remove the crankshaft pulley.
