Crankshaft Pulley

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

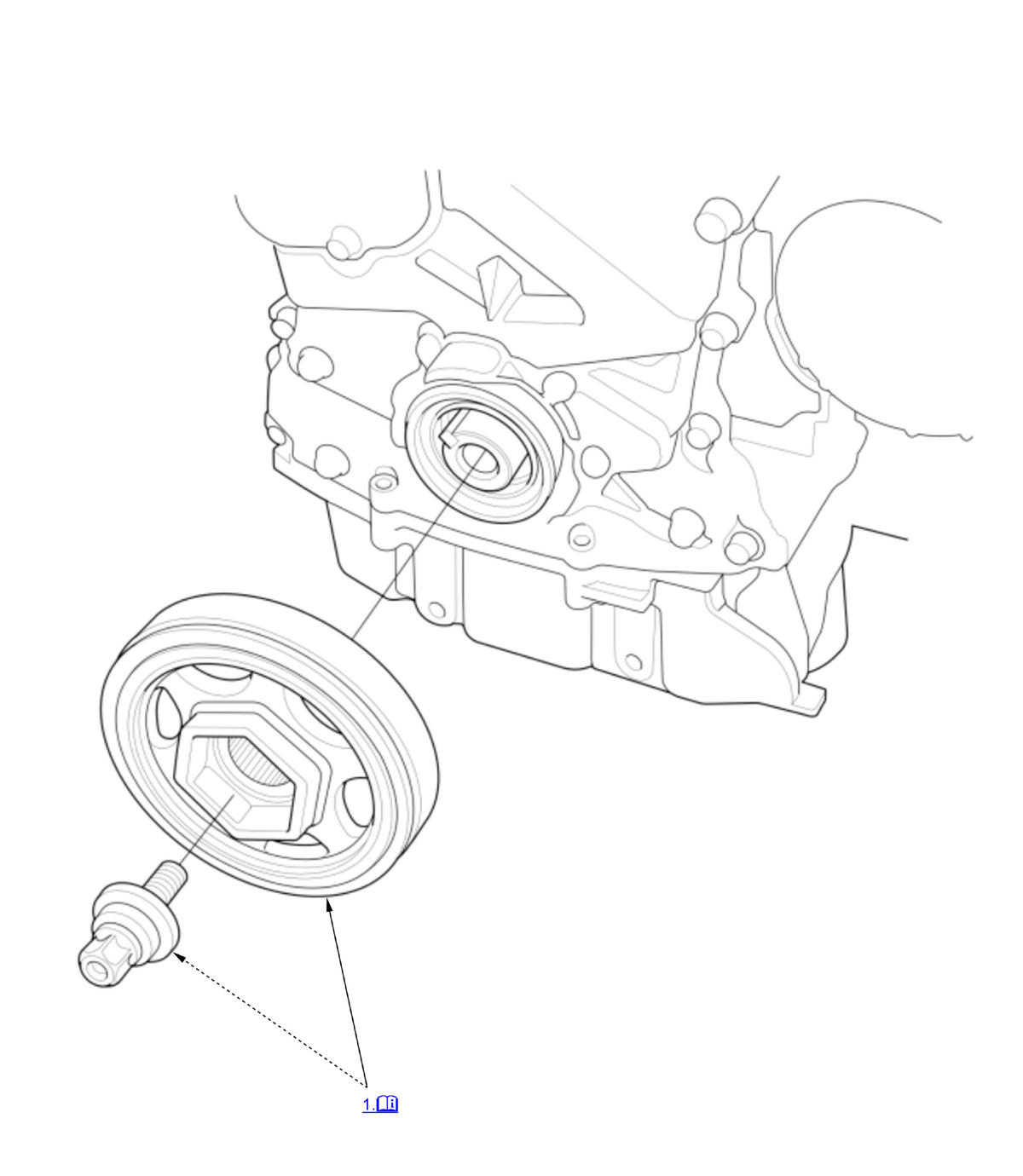

Fig 1: Exploded View Of Crankshaft Pulley Components For Installation

Courtesy of HONDA, U.S.A., INC.

Crankshaft Pulley - Install

Courtesy of HONDA, U.S.A., INC.

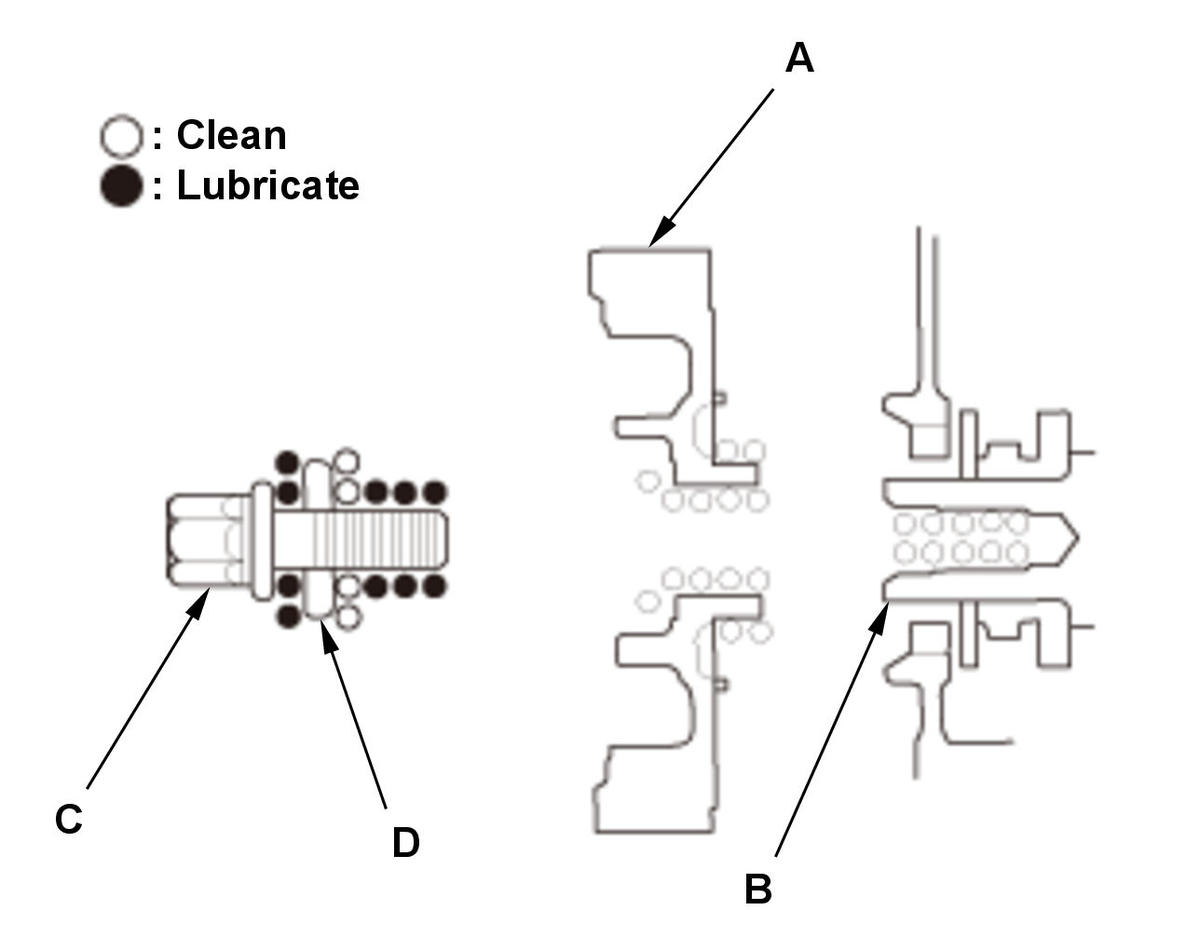

1. Remove any oil and clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.

Courtesy of HONDA, U.S.A., INC.

When a new crankshaft or a new pulley bolt is installed

2. Install the crankshaft pulley and the pulley bolt.

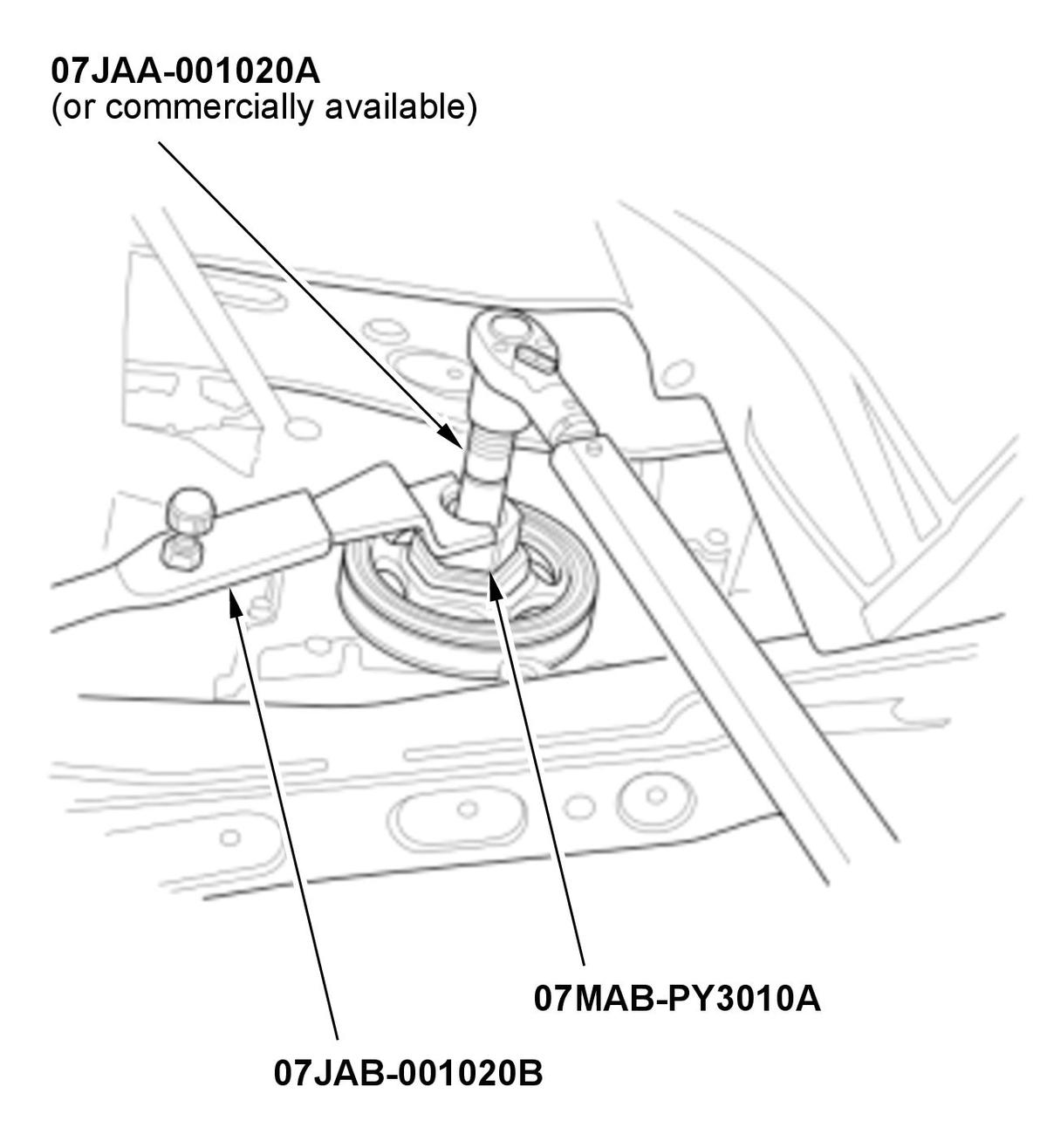

3. Hold the crankshaft pulley with the holder handle and the holder attachment, 50 mm, offset, torque the pulley bolt to 180 N.m (18.4 kgf.m, 133 lbf.ft) with a torque wrench and a socket, 19 mm, then remove the pulley bolt.

4. Torque the pulley bolt to 92 N.m (9.4 kgf.m, 68 lbf.ft) with a torque wrench and a socket, 19 mm.

NOTE: Do not use an impact wrench.

Courtesy of HONDA, U.S.A., INC.

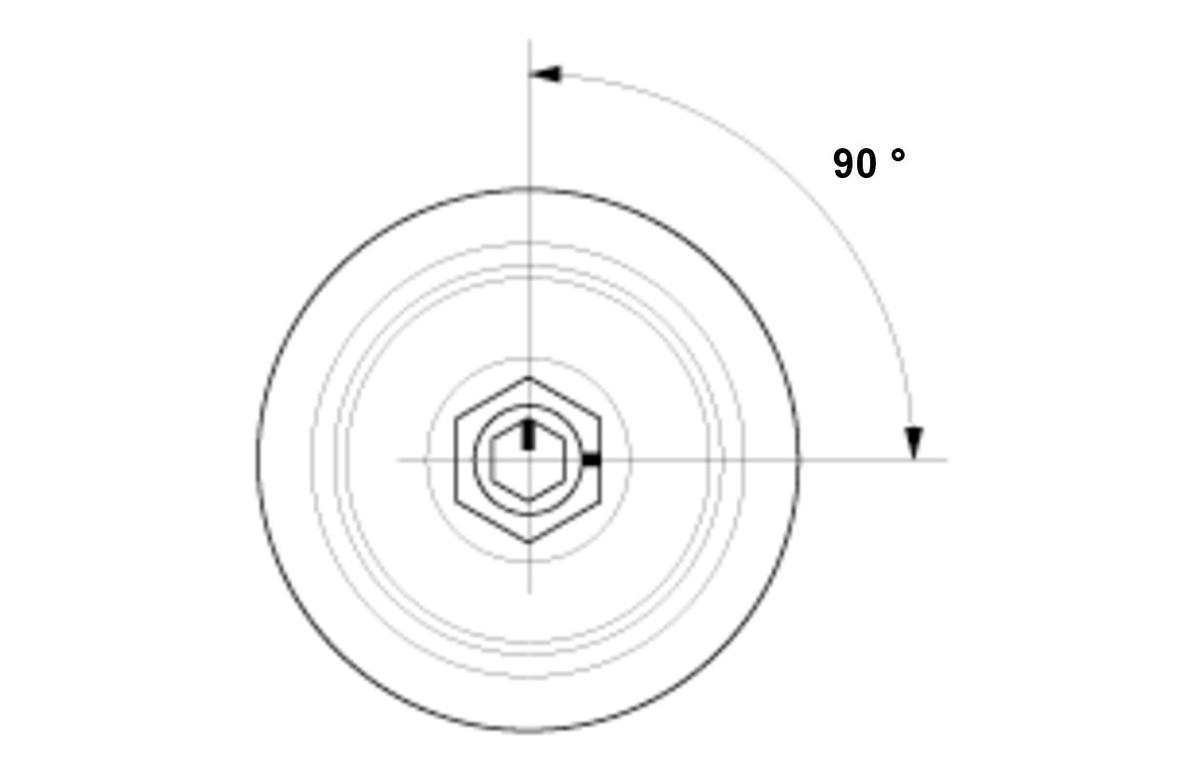

5. Tighten the bolt an additional 90°.

Courtesy of HONDA, U.S.A., INC.

When the crankshaft or the pulley bolt is reused

6. Install the crankshaft pulley and the pulley bolt.

7. Hold the crankshaft pulley with the holder handle and the holder attachment, 50 mm, offset, then torque the pulley bolt to 86 N.m (8.8 kgf.m, 63 lbf.ft) with a torque wrench and a socket, 19 mm.

NOTE: Do not use an impact wrench.

Courtesy of HONDA, U.S.A., INC.

8. Tighten the bolt an additional 90°.
