Crankshaft Pulley, Cam Chain, and Oil Pump Removal and Installation: Inspection

WARNING: This page is about a different variant/trim than selected.

Right Front Wheel - Remove
Engine Undercover - Remove
NOTE: Remove the necessary part(s).
Chain Case Cover - Remove

Cam Chain - Inspect

Courtesy of HONDA, U.S.A., INC.

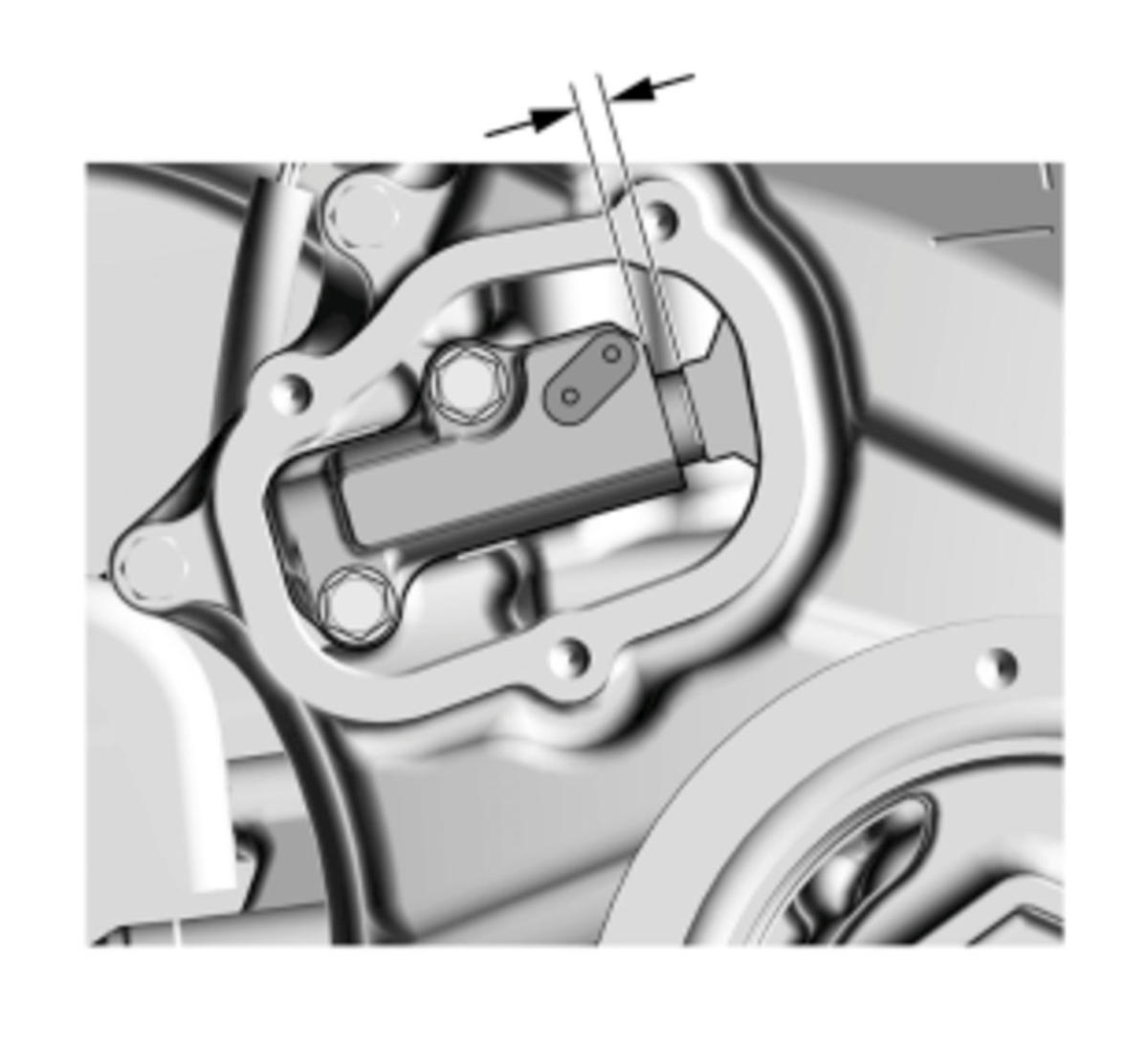

1. Measure the length of the cam chain auto-tensioner rod.

2. If the length is over the service limit, replace the cam chain. When replacing, check the teeth on the crankshaft sprocket, the VTC actuator, and the exhaust camshaft sprocket for wear and damage. If any of them are worn or damaged, replace if necessary.

3. Check the oil passage on the cam chain auto-tensioner for clogs. If the cam chain auto-tensioner is clogged, replace it.

Cam Chain Auto-Tensioner Rod Length
Service Limit:	13.55 mm (0.5335 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
