Balancer Shaft/Balancer Shaft Holder Assembly Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

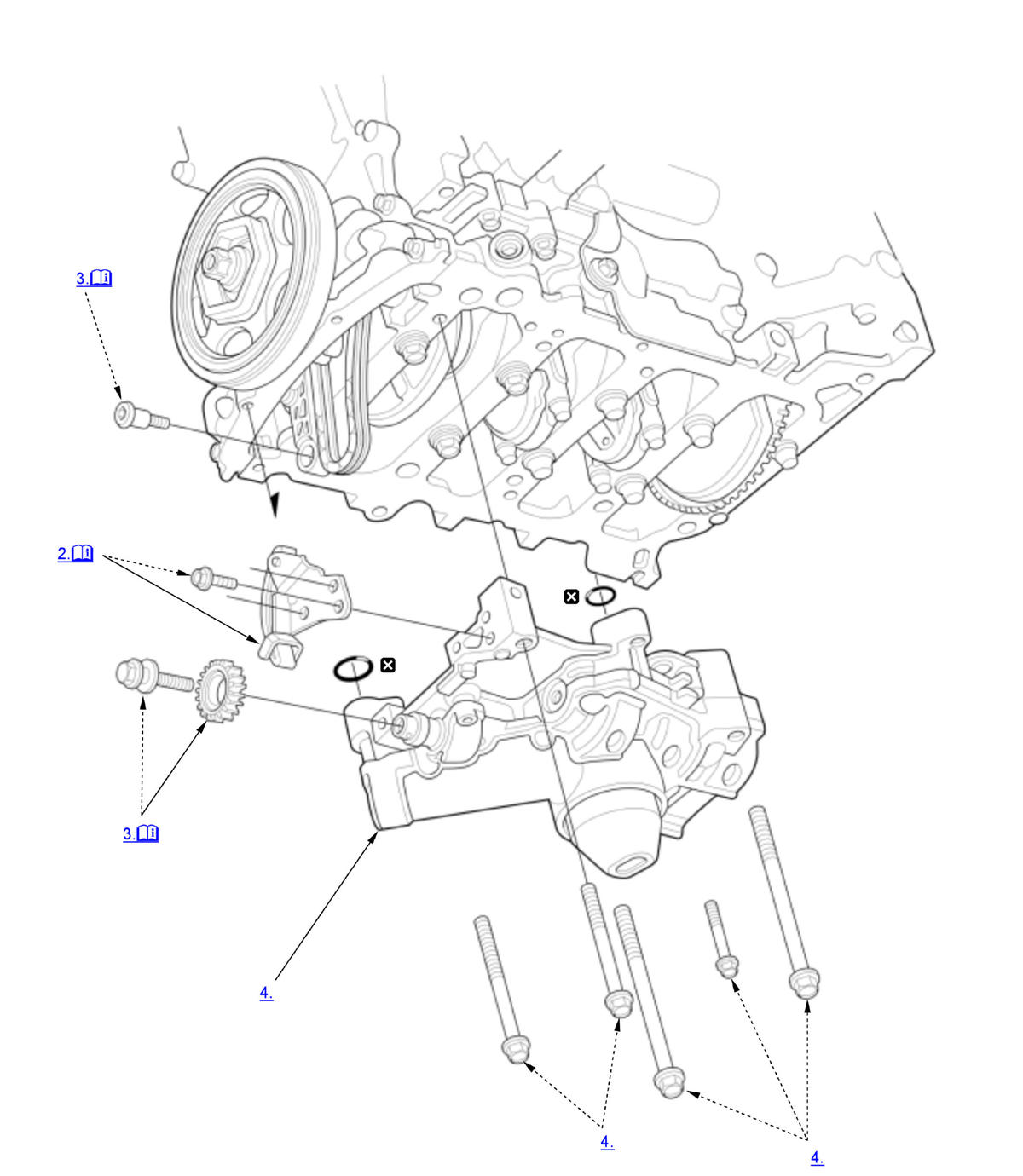

Fig 1: Exploded View Of Balancer Shaft/Balancer Shaft Holder Assembly Removal Components

Courtesy of HONDA, U.S.A., INC.

Replace

Oil Pan - Remove

Balancer Chain Tensioner - Remove

Courtesy of HONDA, U.S.A., INC.

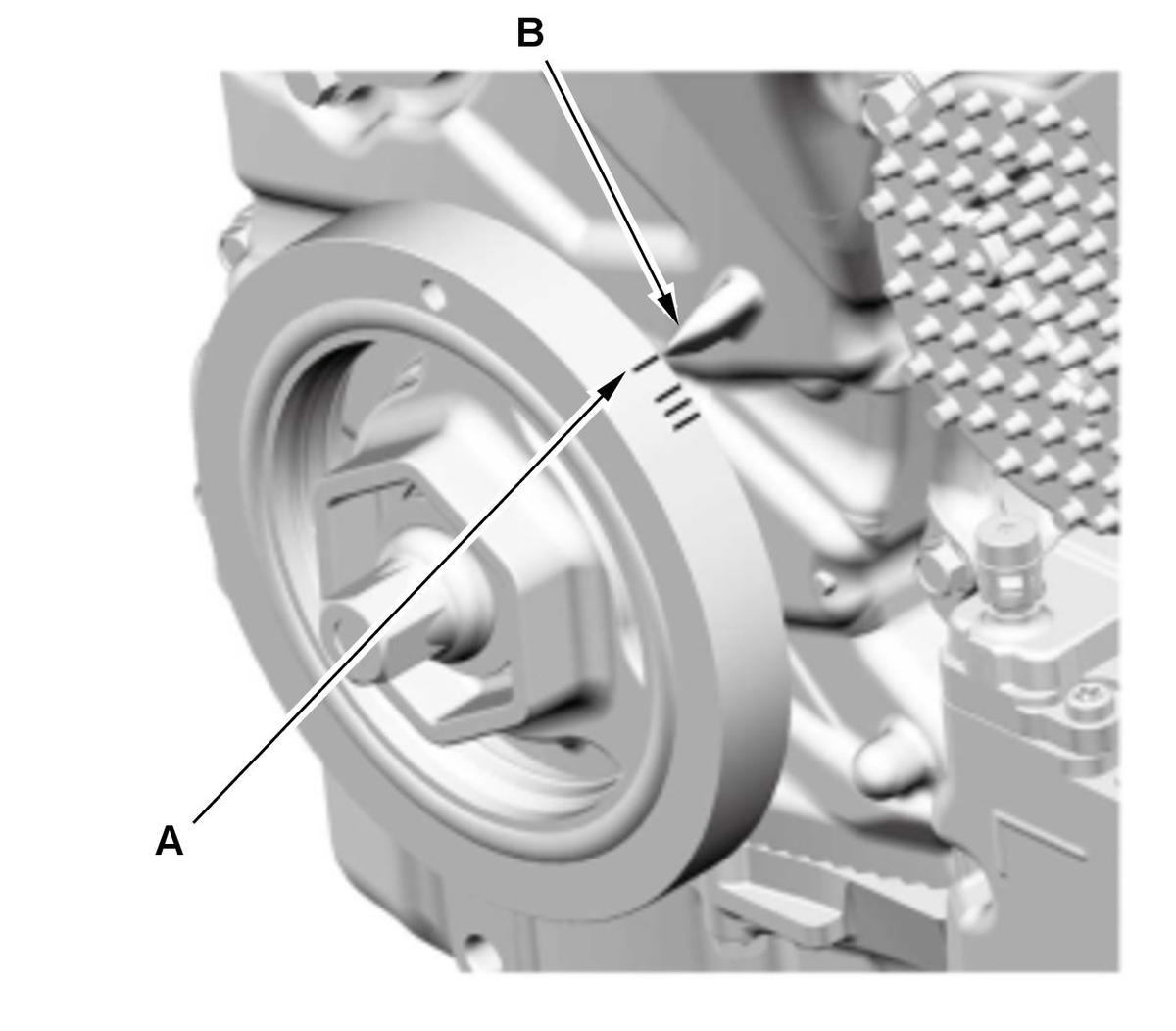

1. Turn the crankshaft to align No. 1 position at top dead center (TDC); the white mark (A) on the crankshaft pulley lines up with the pointer (B).

2. Remove and discard the balancer chain tensioner.

Balancer Shaft Sprocket - Remove

Courtesy of HONDA, U.S.A., INC.

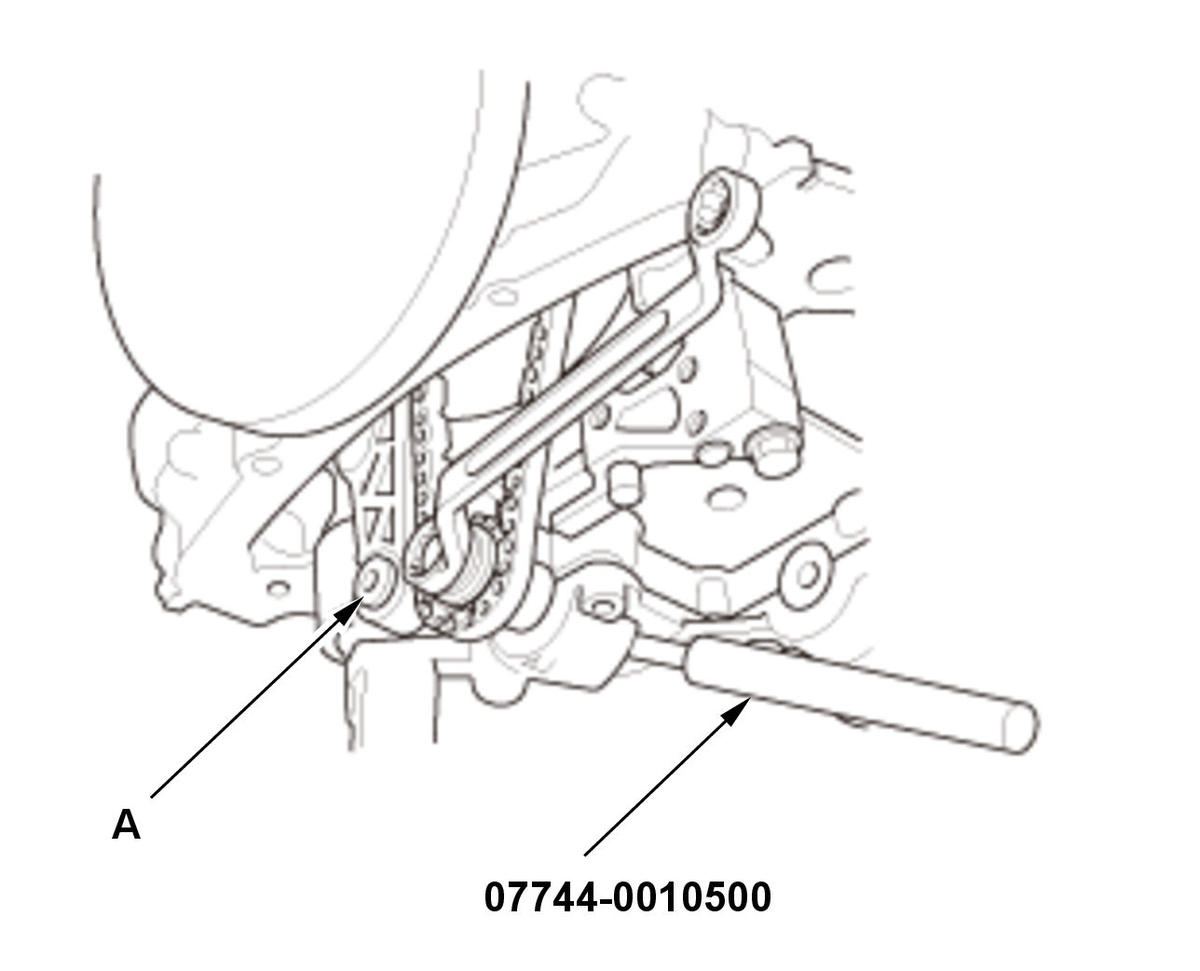

1. To hold the rear balancer shaft, insert a pin driver, 6.0 mm into the maintenance hole in the lower balancer shaft holder and through the rear balancer shaft.

2. Loosen the balancer shaft sprocket mounting bolt.

3. Remove the balancer chain guide mounting bolt (A), then remove the balancer shaft sprocket mounting bolt and the balancer shaft sprocket.

Balancer Shaft/Balancer Shaft Holder Assembly - Remove
