Disassembly and Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

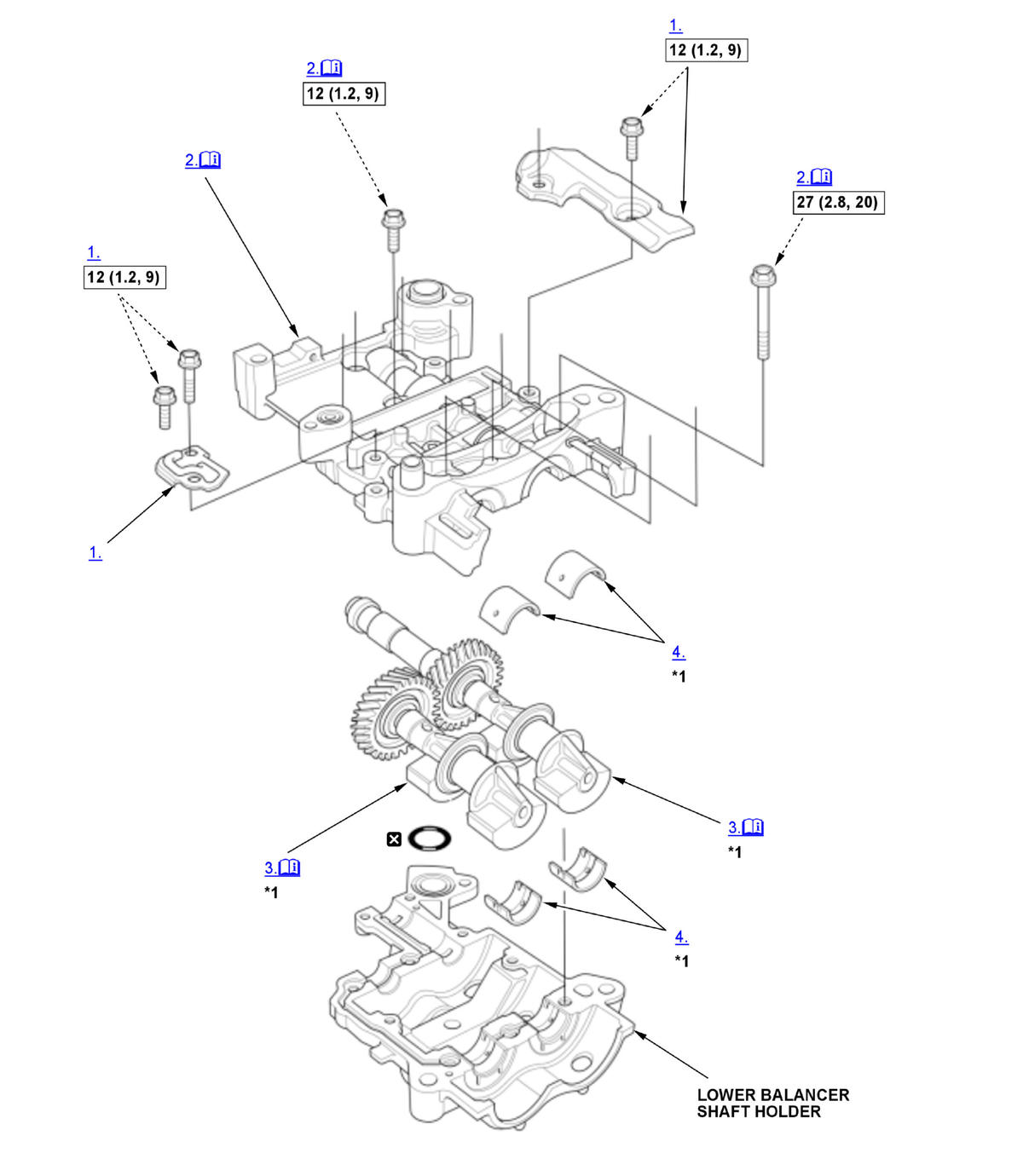

Fig 1: Exploded View Of Balancer Shaft/Balancer Shaft Holder Assembly Overhaul Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	These parts have inspection items.

Baffle Plate - Remove
Upper Balancer Shaft Holder - Remove
Note for installation

NOTE: Apply new engine oil to the 8 mm bolts threads and flanges.
Front Balancer Shaft and Rear Balancer Shaft - Remove

Courtesy of HONDA, U.S.A., INC.

Note for installation

1. Apply new engine oil to the journals.

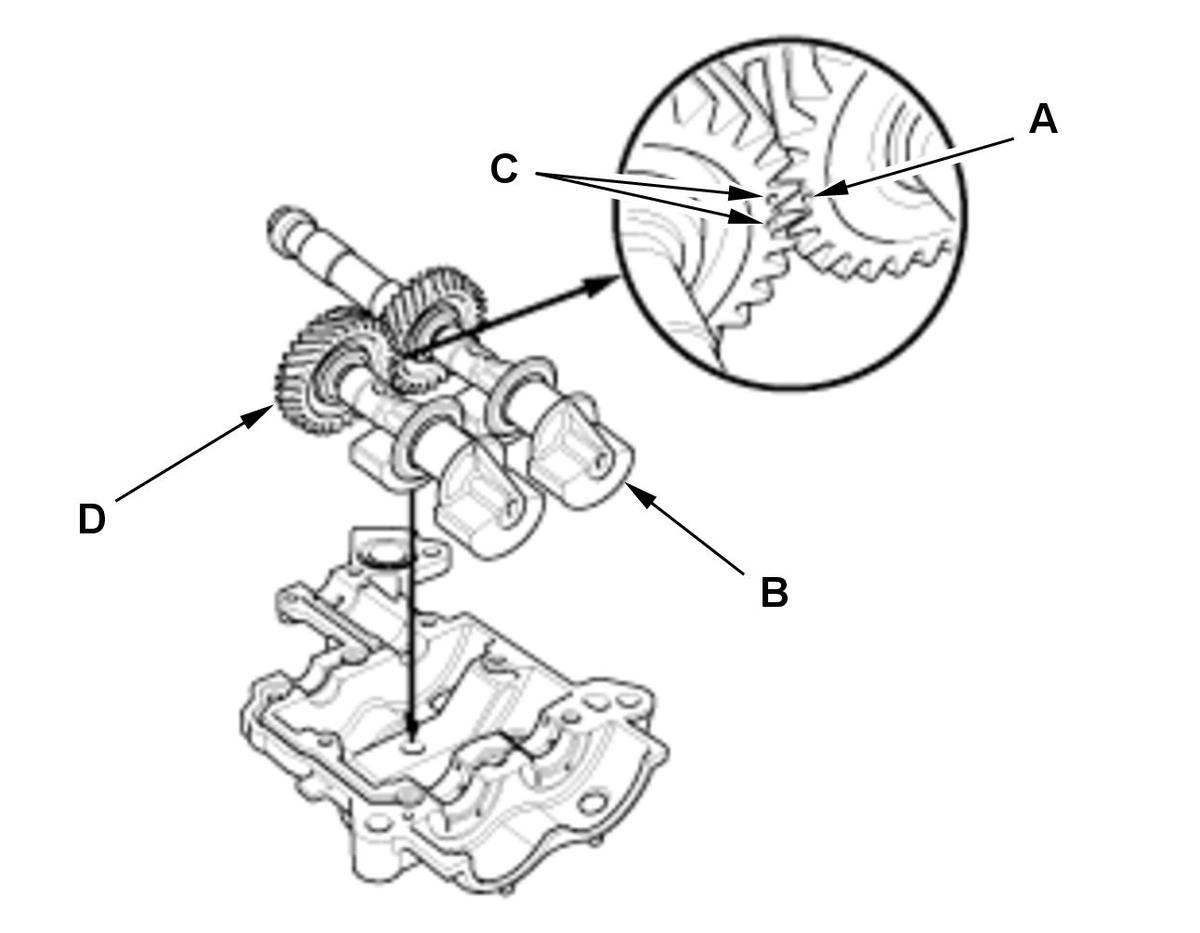

2. Align the punch mark (A) on the rear balancer shaft (B) in the center of the two punch marks (C) on the front balancer shaft (D), then install the balancer shafts on the lower balancer shaft holder.
Balancer Shaft Bearing - Remove
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
