CMBS OFF Switch - Test

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

CMBS OFF Switch Continuity Check:

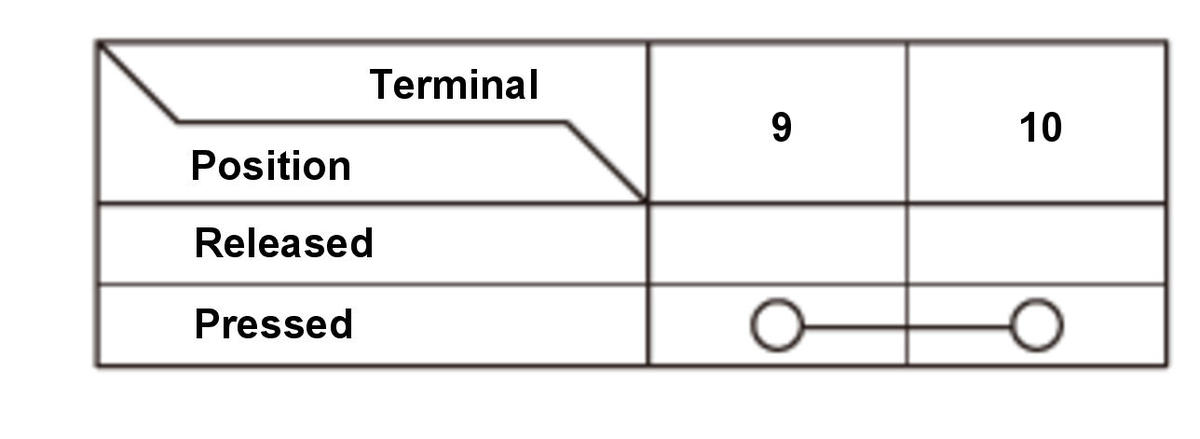

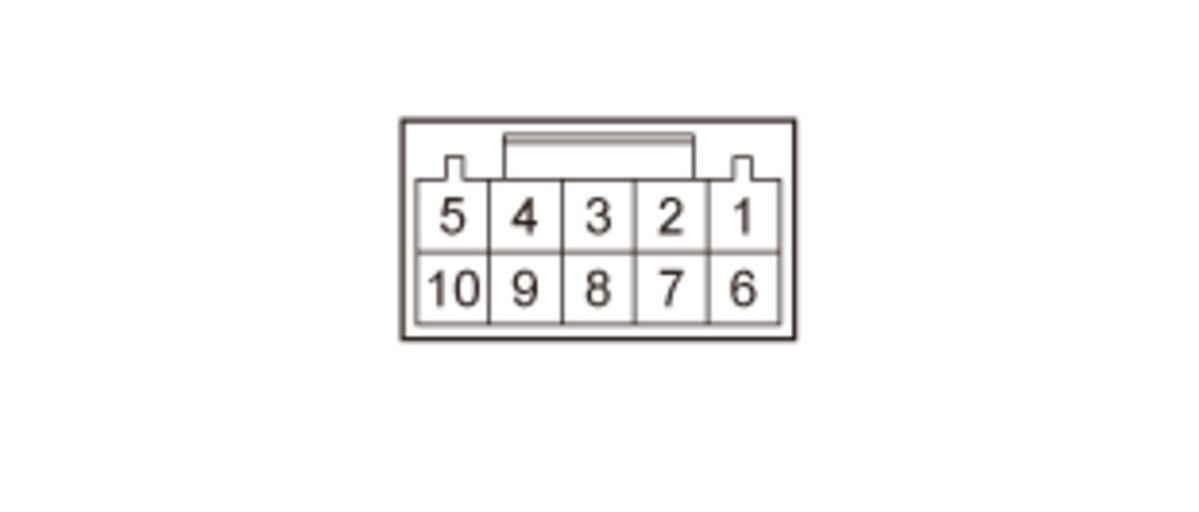

1. Check for continuity between the CMBS OFF switch/RDM switch 10P connector (male terminals) terminals in each switch position according to the table.

If the switch does not work as described in the table, replace the CMBS OFF switch/RDM switch.

Courtesy of HONDA, U.S.A., INC.

CMBS OFF Switch Illumination Circuit Check:

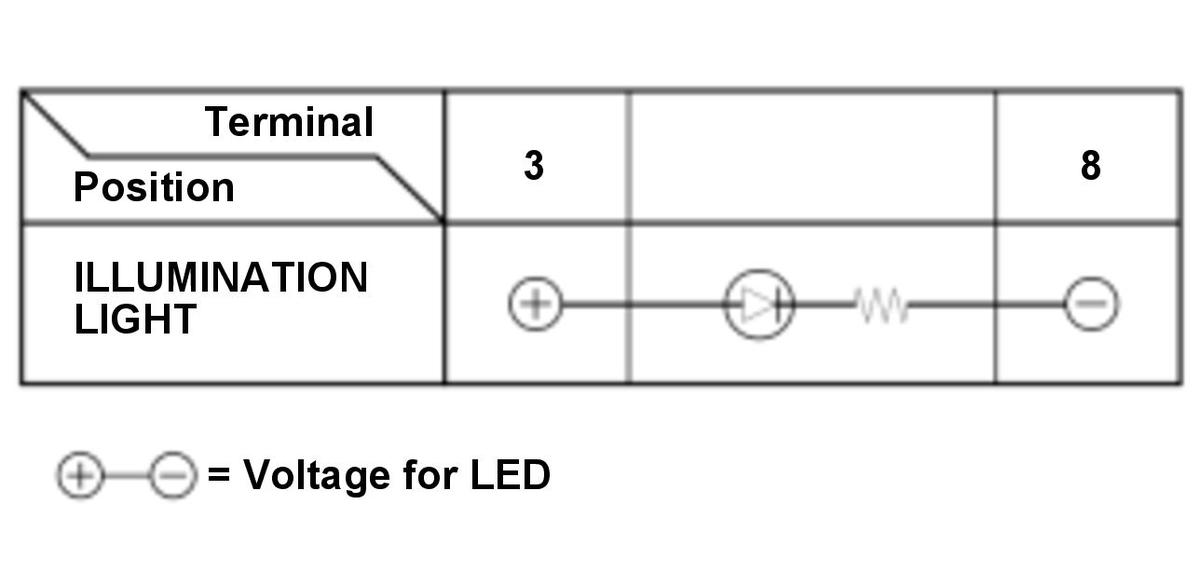

1. Check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE: Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

If the results are not as specified, replace the CMBS OFF switch/RDM switch.
