Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

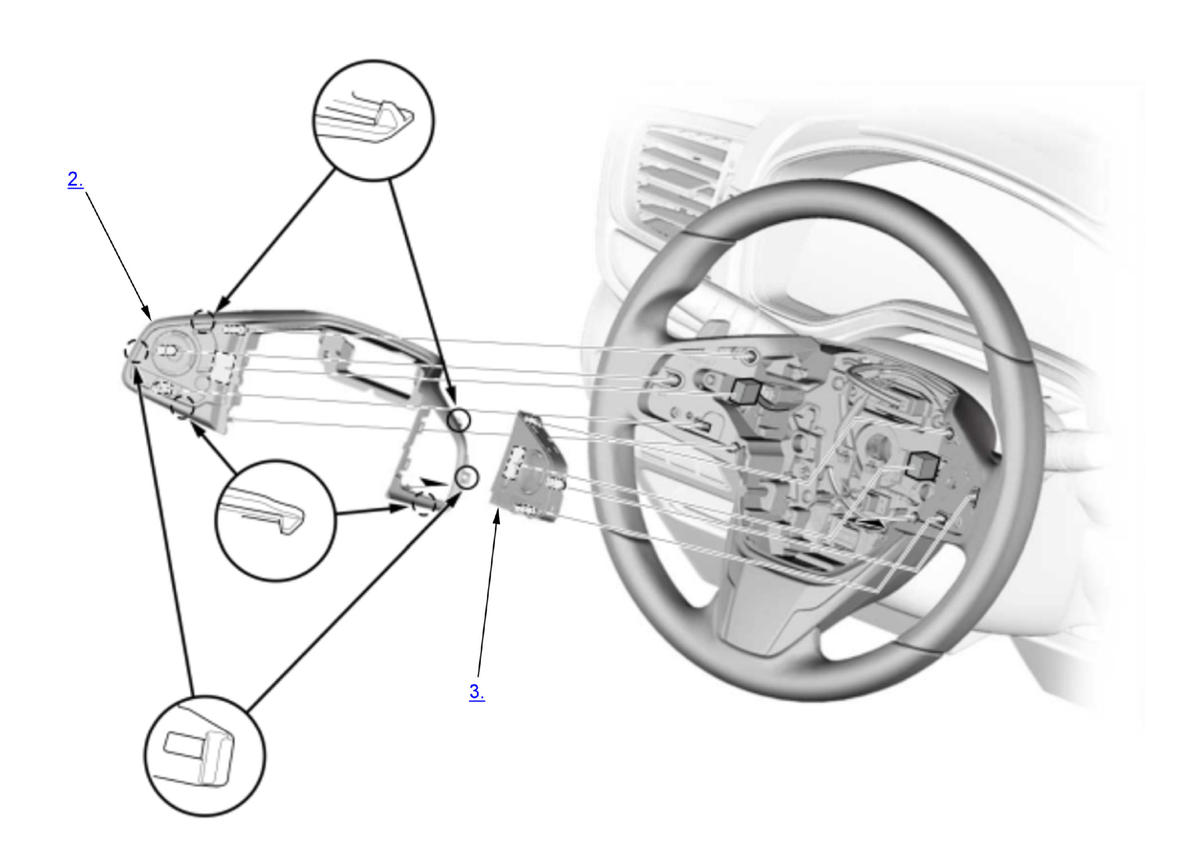

Fig 1: Exploded View Of ACC Combination Switch Components
GHH376076Courtesy of HONDA, U.S.A., INC.
  1. Driver's Airbag - Remove
  2. Steering Wheel Trim - Remove
  3. ACC Combination Switch - Remove
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
