Road Departure Mitigation Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

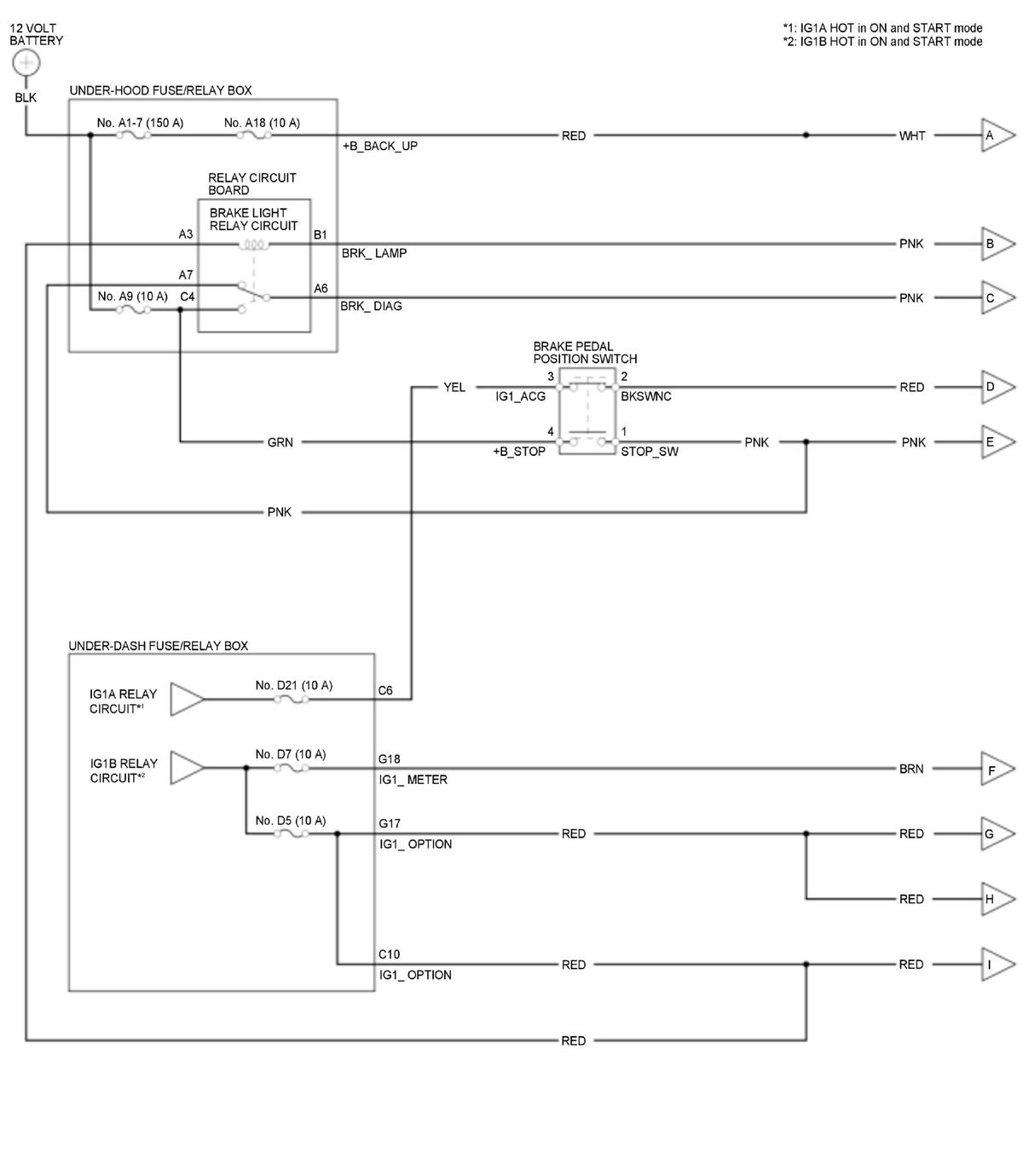

GHH376400Courtesy of HONDA, U.S.A., INC.

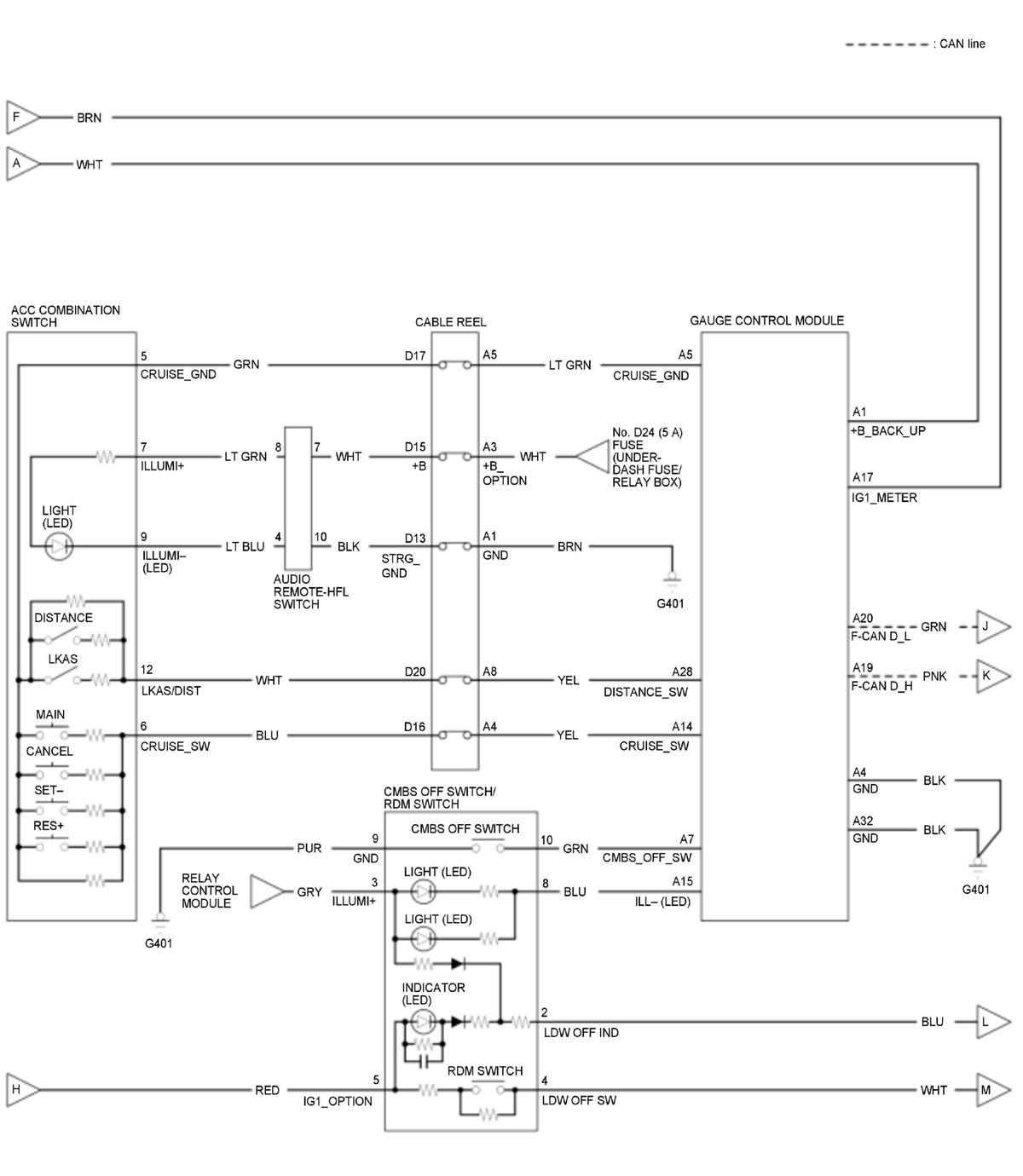

GHH376401Courtesy of HONDA, U.S.A., INC.

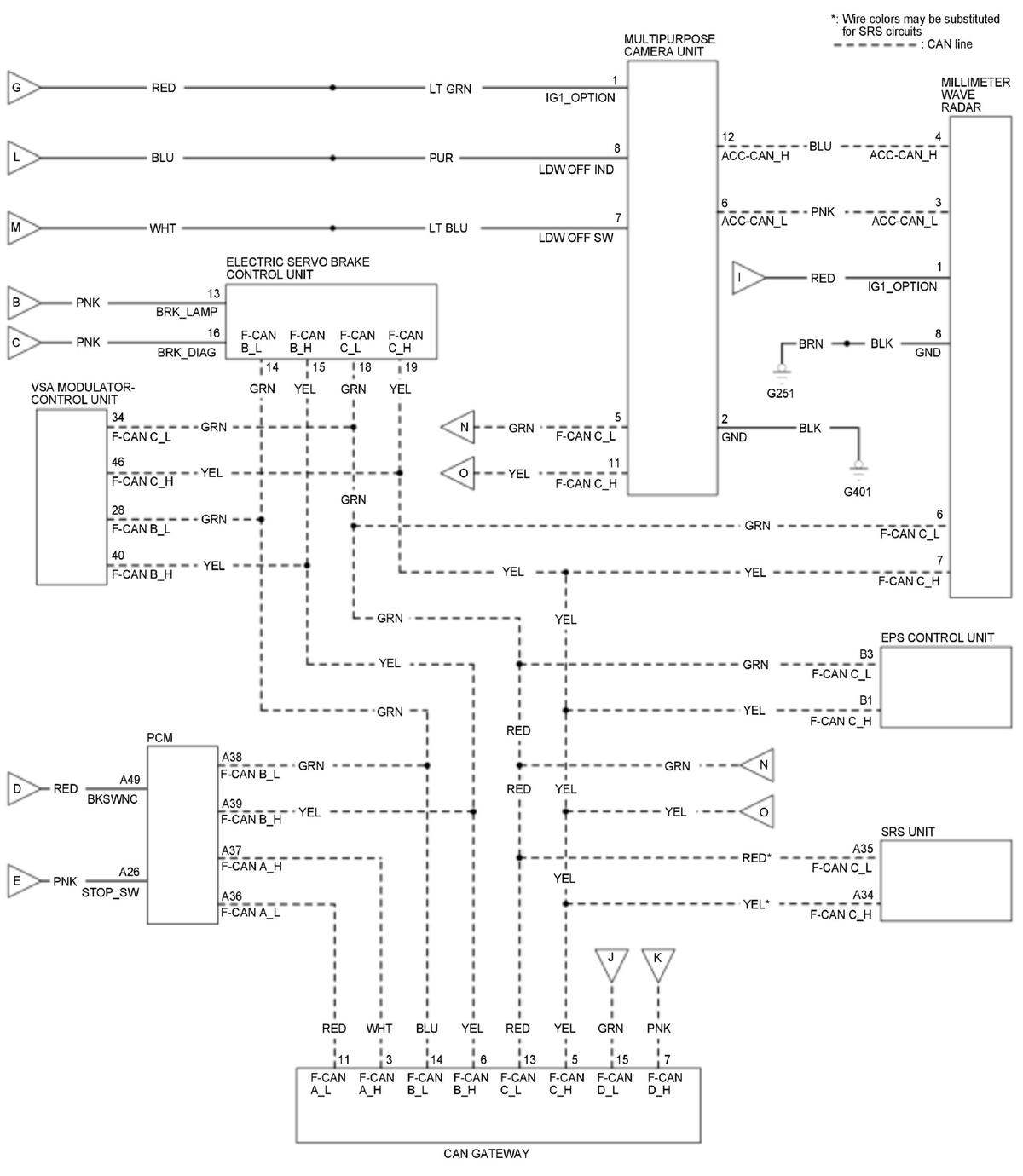

GHH376402Courtesy of HONDA, U.S.A., INC.
