Rear Differential Removal and Installation: Removal: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

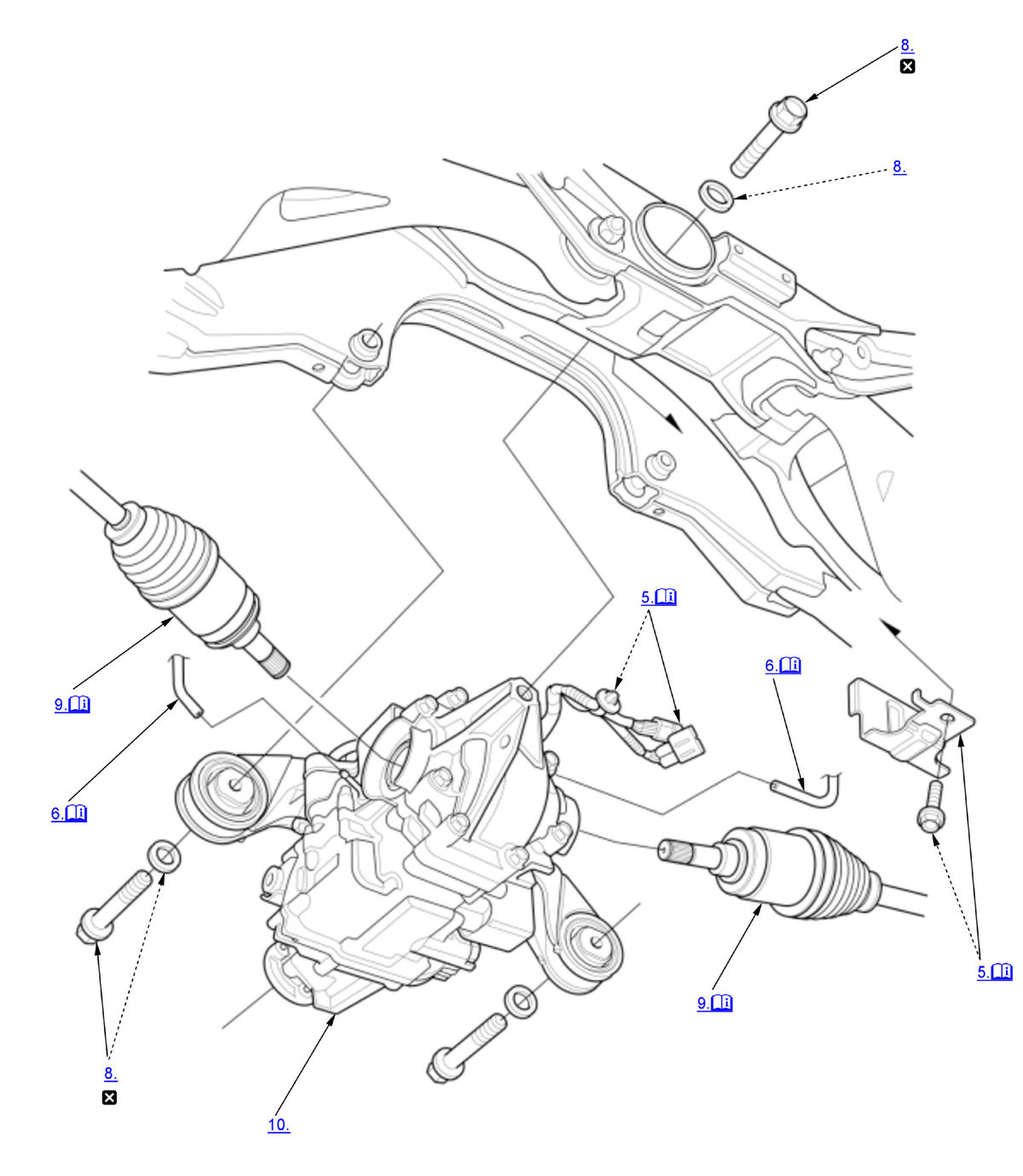

Fig 1: Exploded View Of Rear Differential Components For Removal

Courtesy of HONDA, U.S.A., INC.

Replace

Connectors (Rear Differential Subharness) - Disconnect

Courtesy of HONDA, U.S.A., INC.

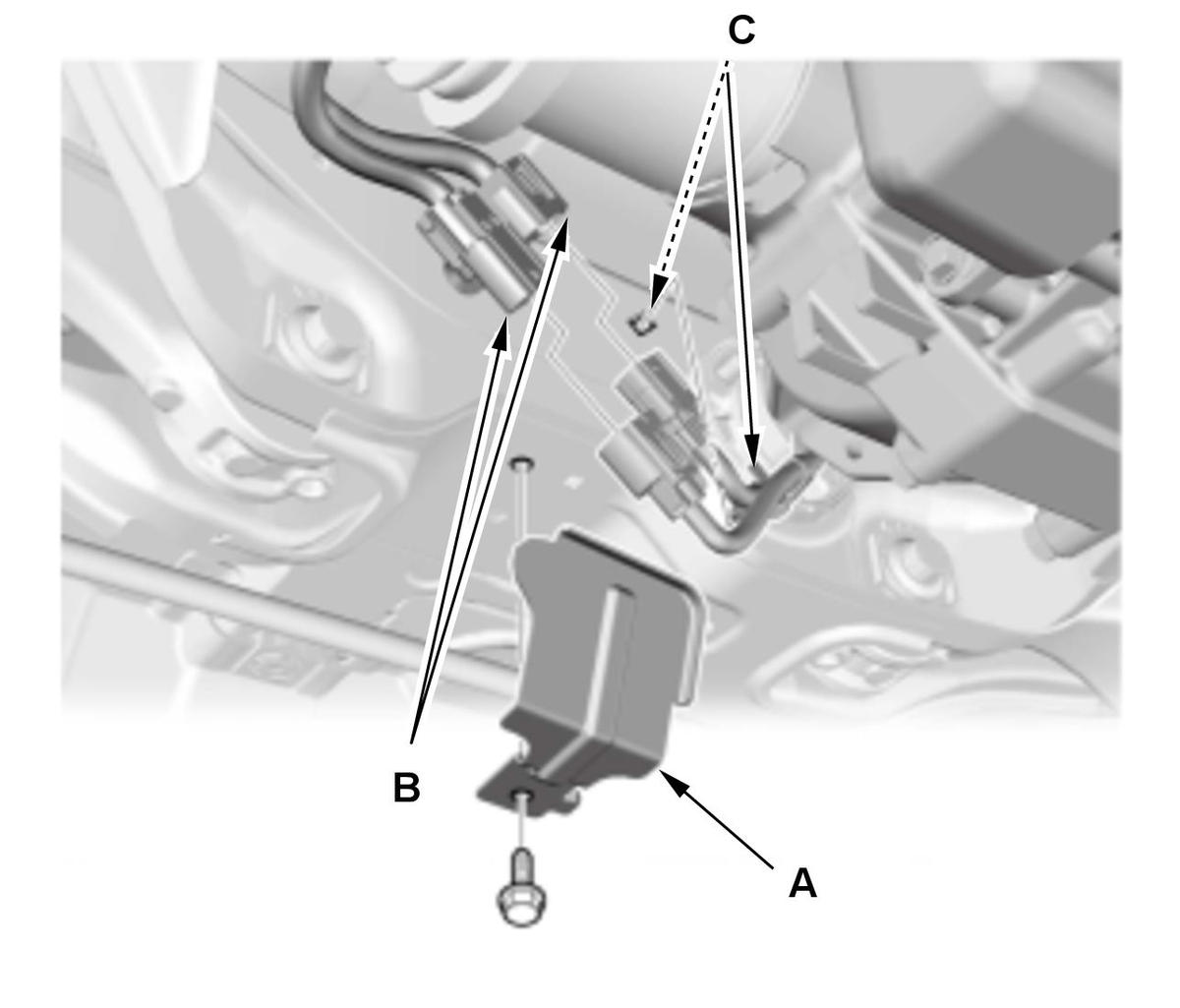

1. Remove the cover (A).

2. Disconnect the connectors (B).

3. Remove the harness clip (C).

Breather Hose - Disconnect

Left side

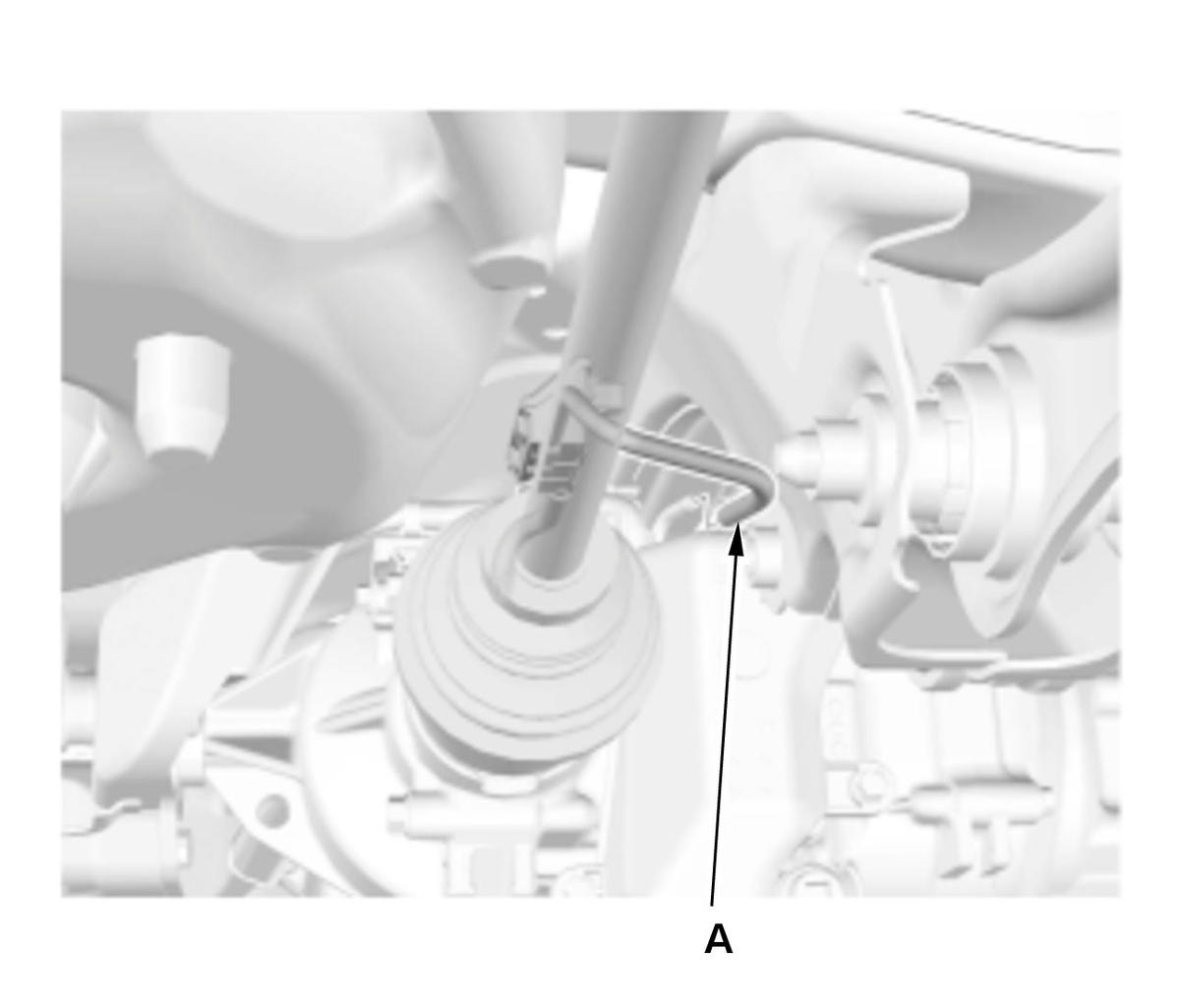

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right side

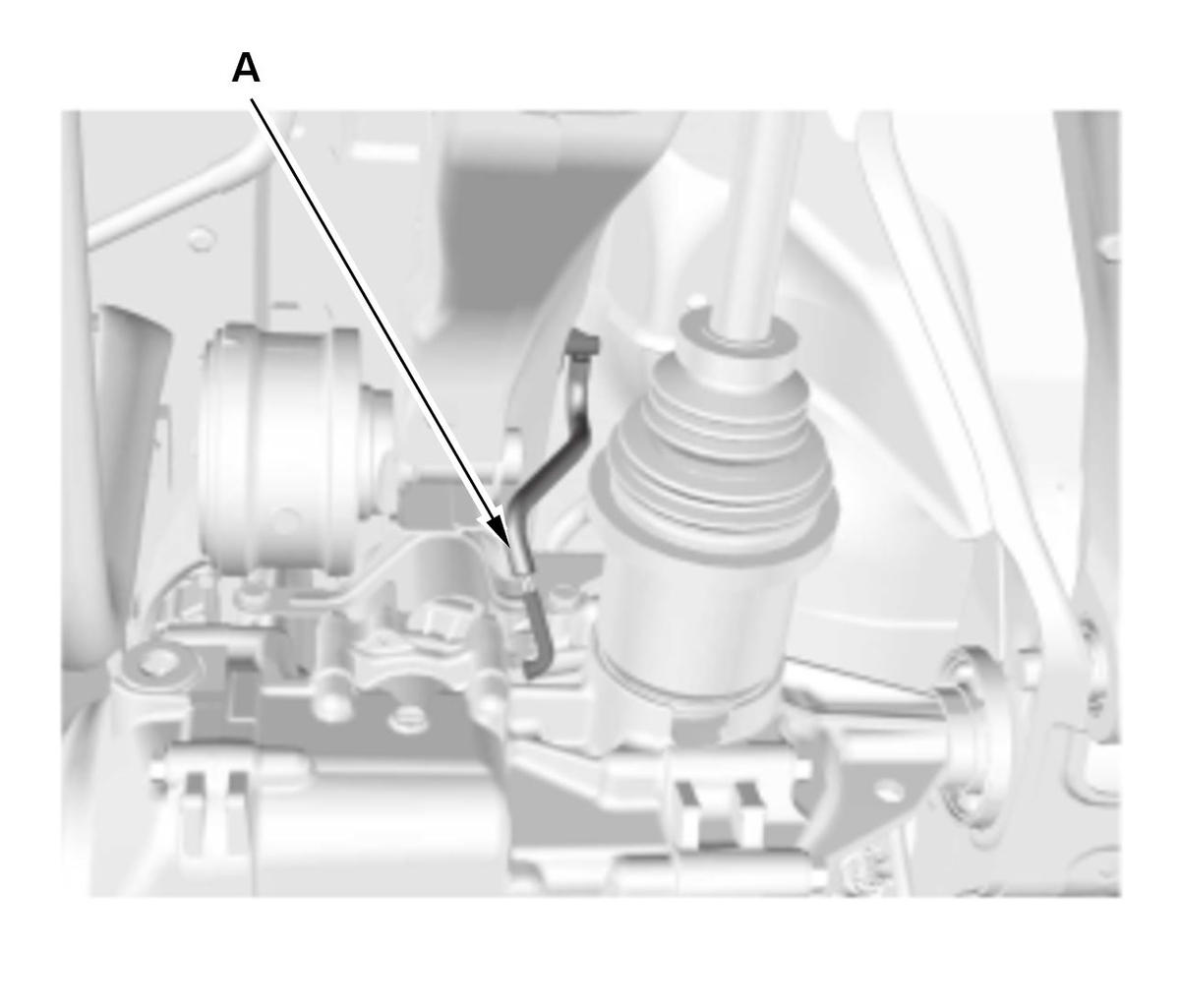

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the breather hoses (A).

Rear Differential - Support
NOTE: Support the Rear Differential with a transmission jack.
Rear Differential Mounting Bolt - Remove

Rear Driveshaft Inboard Side - Disconnect

Courtesy of HONDA, U.S.A., INC.

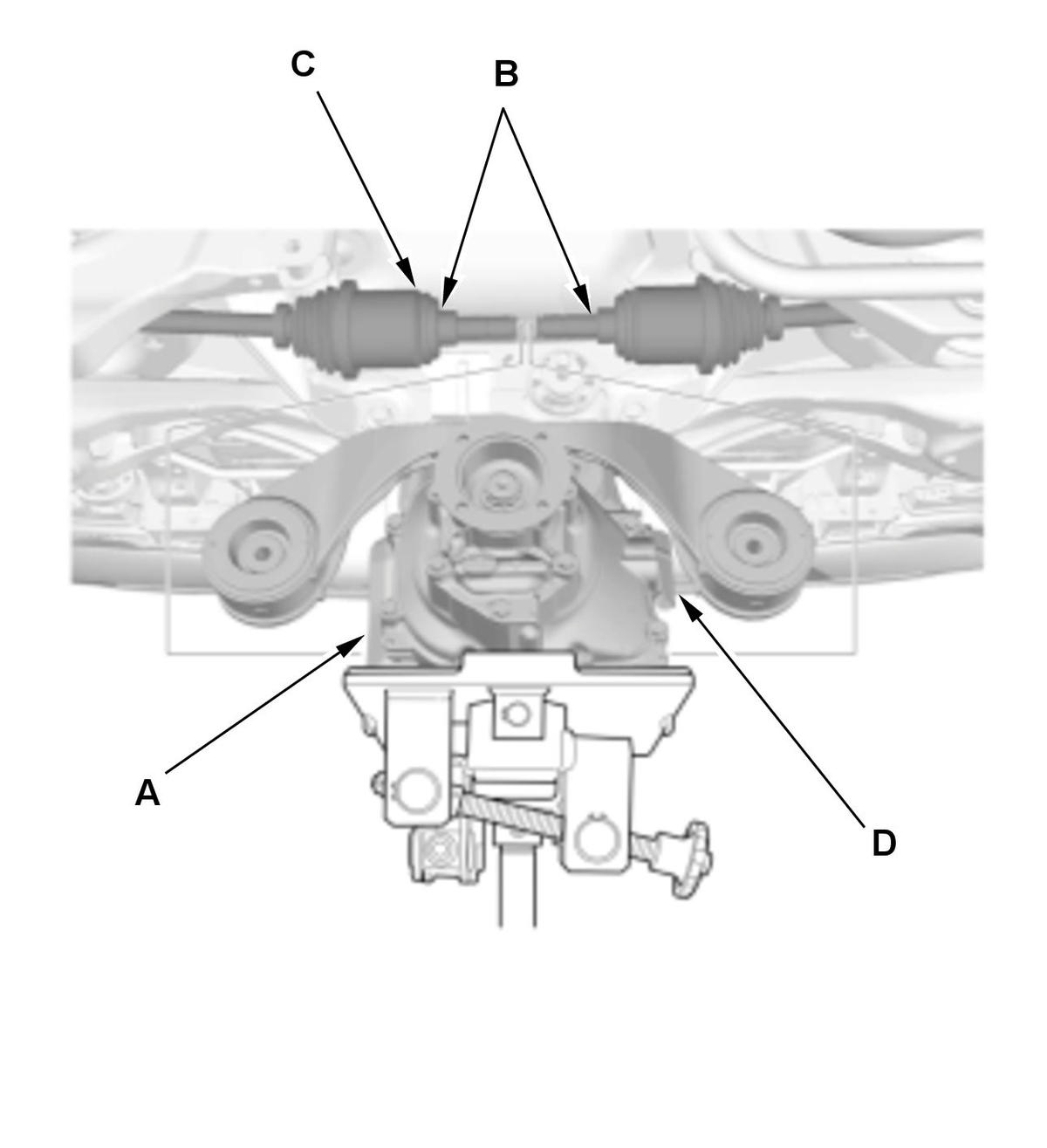

1. Lower the rear differential assembly (A) while pulling both rear driveshaft inboard joints (B) out of the rear differential assembly.
NOTE:

Be careful not to damage the driveshaft rings (C) when prying out the driveshaft inboard joints.
Be careful not to damage the oil seals (D).

Courtesy of HONDA, U.S.A., INC.

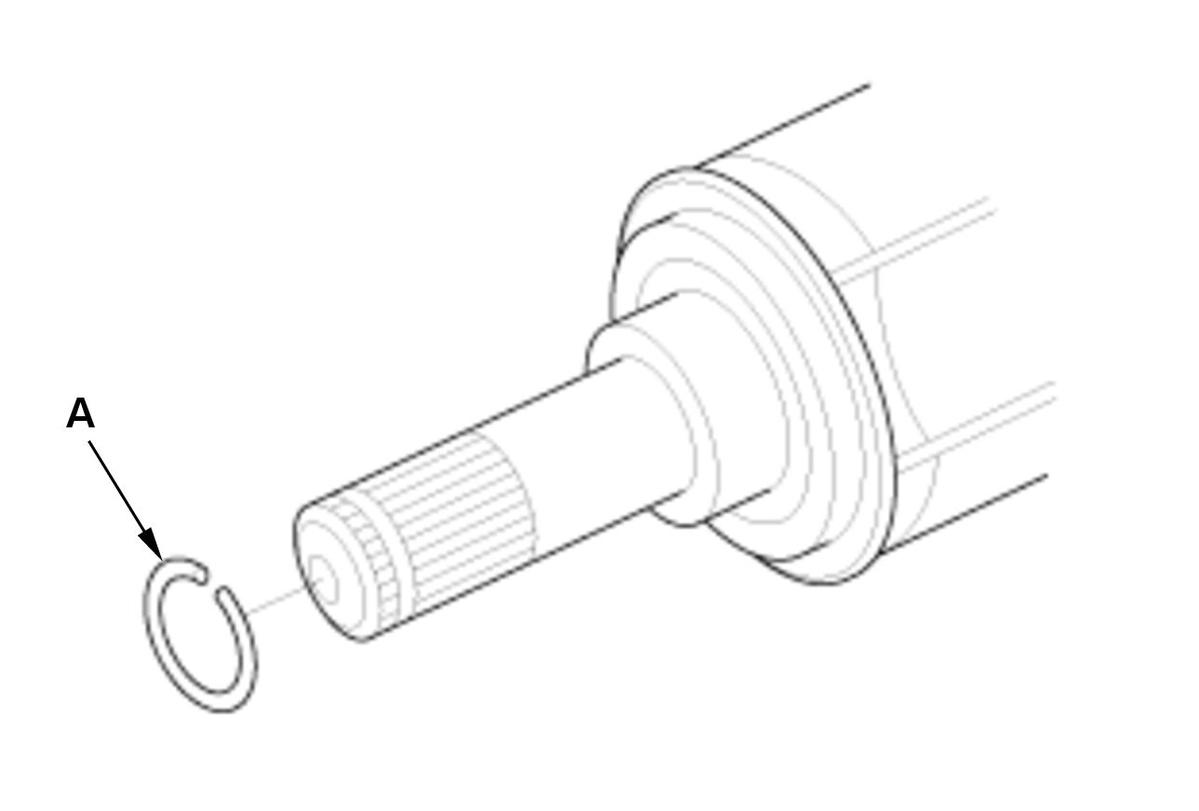

2. Remove the driveshaft inboard joint set ring (A) on both sides.
