Exploded View

WARNING: This page is about a different variant/trim than selected.

NOTE:  Tighten the rear differential mount bolts in the numbered sequence shown.

  1. Rear Differential Mount

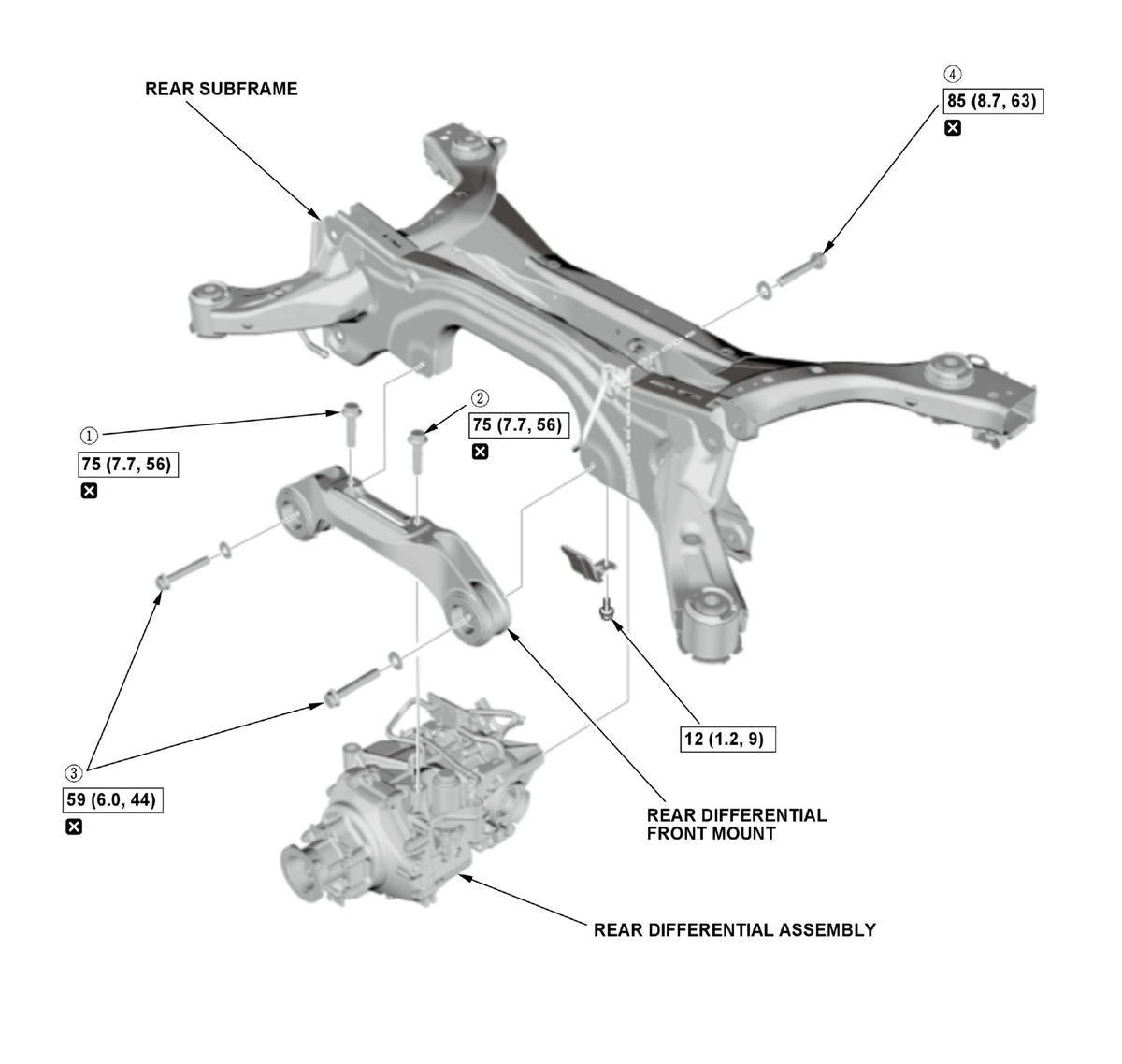

    Fig 1: Exploded View Of Rear Differential Mount Replacement Components With Tightening Sequence And Torque Specifications
    GHH376158Courtesy of HONDA, U.S.A., INC.
    Torque: N.m (kgf.m, lbf.ft)
    Replace
