Millimeter Wave Radar Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Front Bumper - Remove
Millimeter Wave Radar - Remove

Courtesy of HONDA, U.S.A., INC.

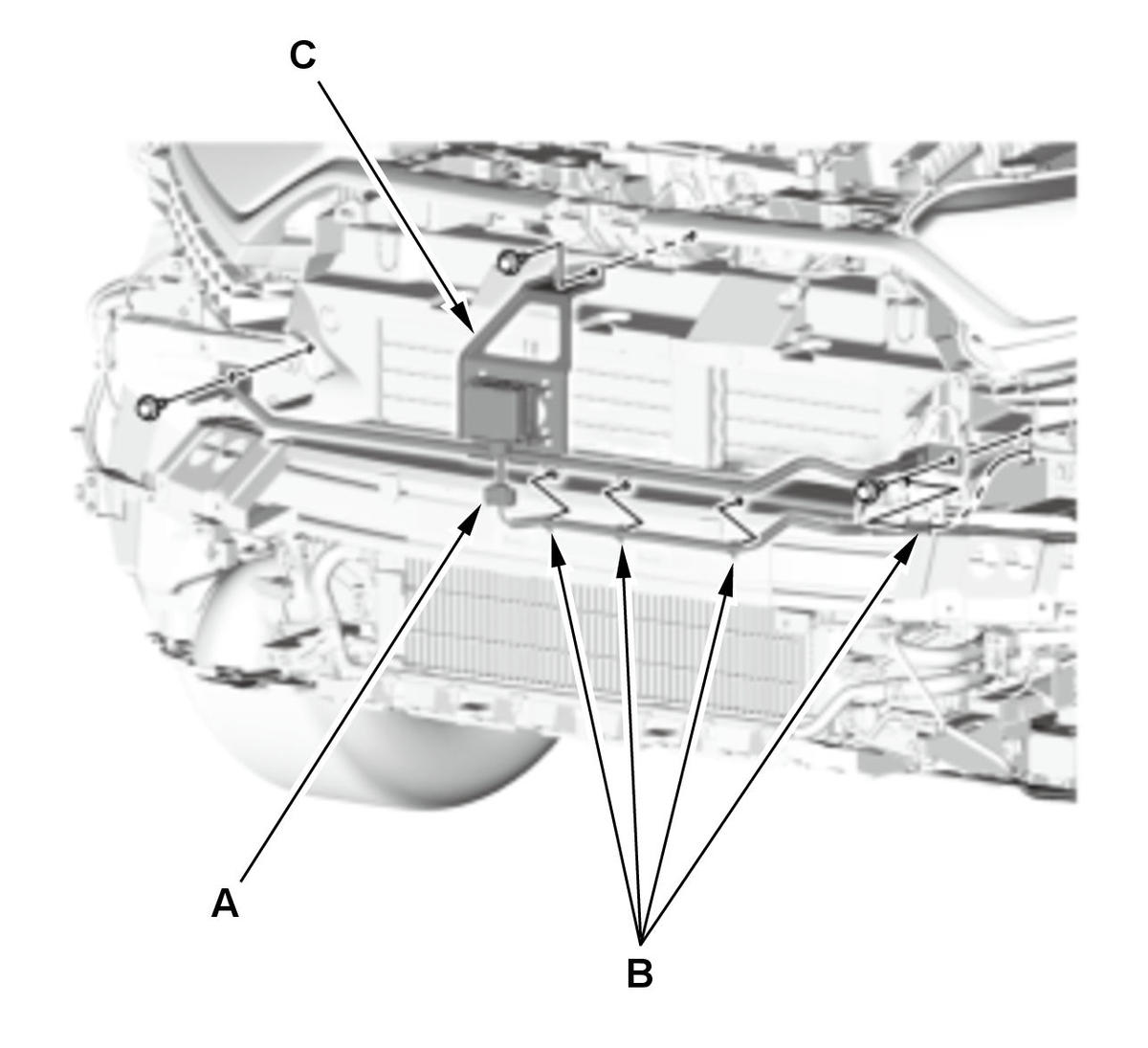

Millimeter Wave Radar Assembly Removal

1. Disconnect the connector (A).

2. Remove the harness clips (B).

3. Remove the millimeter wave radar assembly (C).

Courtesy of HONDA, U.S.A., INC.

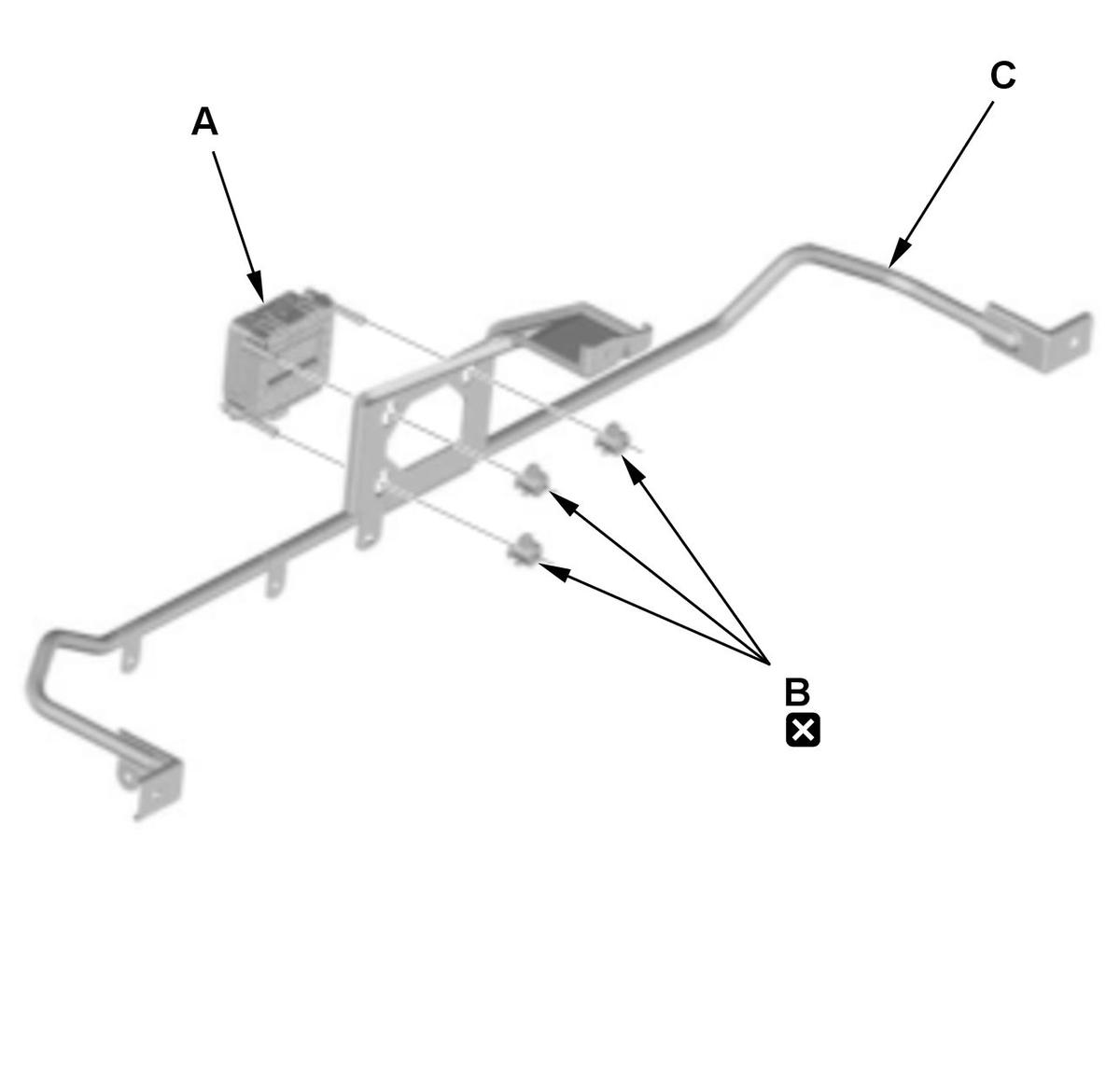

Millimeter Wave Radar Subassembly Removal

NOTE: The millimeter wave radar subassembly (A) cannot be disassembled.

1. Rotate the three clips (B) counterclockwise.

2. Remove the millimeter wave radar subassembly from the clips.

3. Remove the clips from the radar bracket (C).
