Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Electric Parking Brake Actuator - Remove

Courtesy of HONDA, U.S.A., INC.

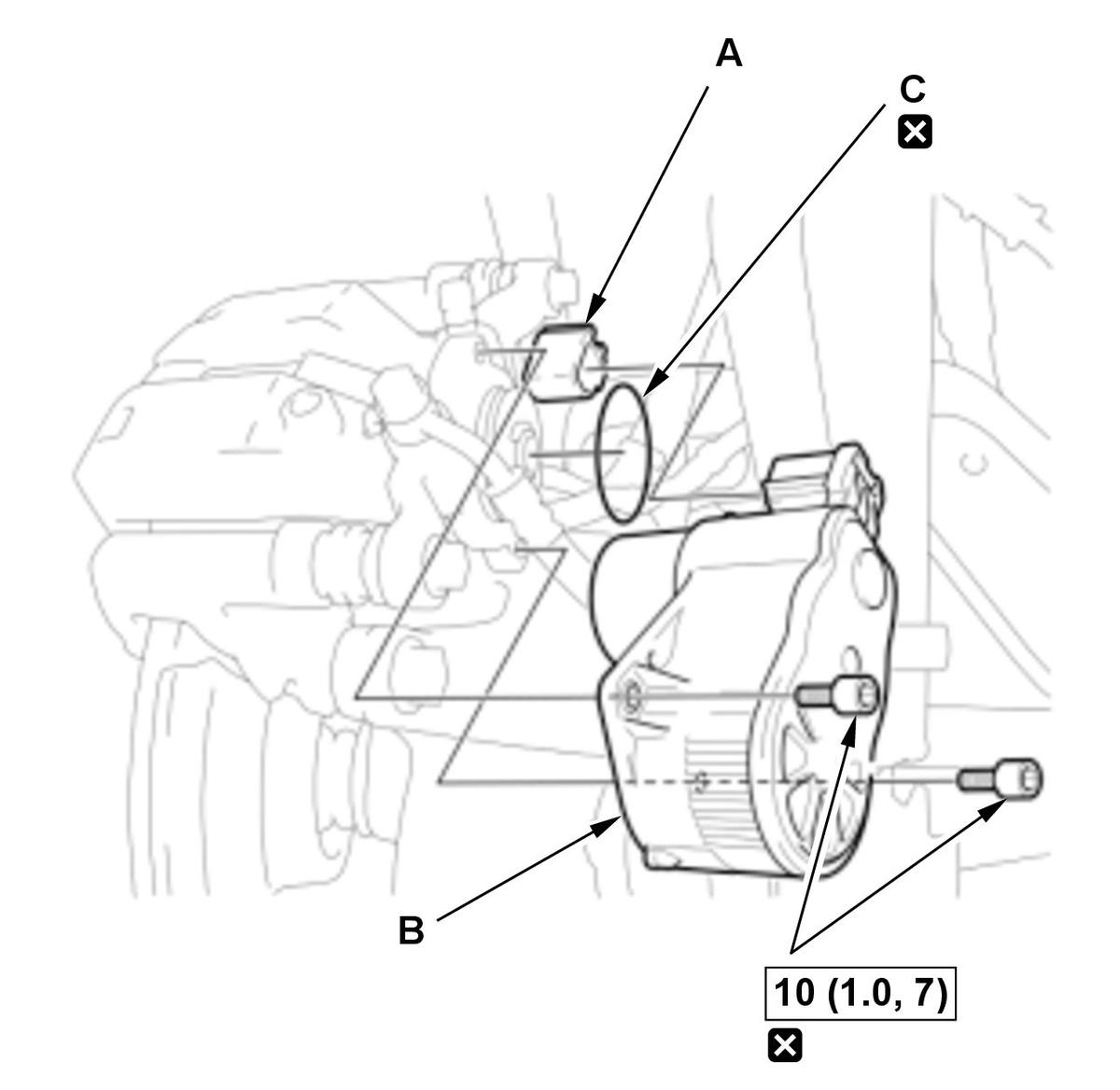

1. Disconnect the connector (A).

NOTE: If the connector lock tab is difficult to release, push in on the connector body before pushing on the release lock.

2. Remove the electric parking brake actuator (B).

NOTE: Use new mounting screws during reassembly.

3. Remove the O-ring (C).

NOTE:

Replace the O-ring whenever the electric parking brake actuator is removed.
When installing the actuator, make sure there is no foreign matter on the mating surfaces and the O-ring.

All Removed Parts - Install

1. Install all removed parts in the reverse order of removal.

Electric Parking Brake Actuator After Install - Check

1. Turn the vehicle to the ON mode.

2. Apply and release the parking brake 2 times, then make sure that the brake system indicator (red) goes OFF.

NOTE: If the brake system indicator (red) does not go OFF, check for a poor connection at the electric parking brake actuator connector.

3. Turn the vehicle to the OFF (LOCK) mode.
