Electric Parking Brake System Forced Cancellation: Procedure
WARNING: This page is about a different variant/trim than selected.
NOTE: Forced cancellation is performed when the system is abnormal and the parking brake cannot be released.
- Vehicle - Lift
- Rear Wheel - Remove
- Electric Parking Brake Actuator - Remove
- Parking Brake - Forced Cancel

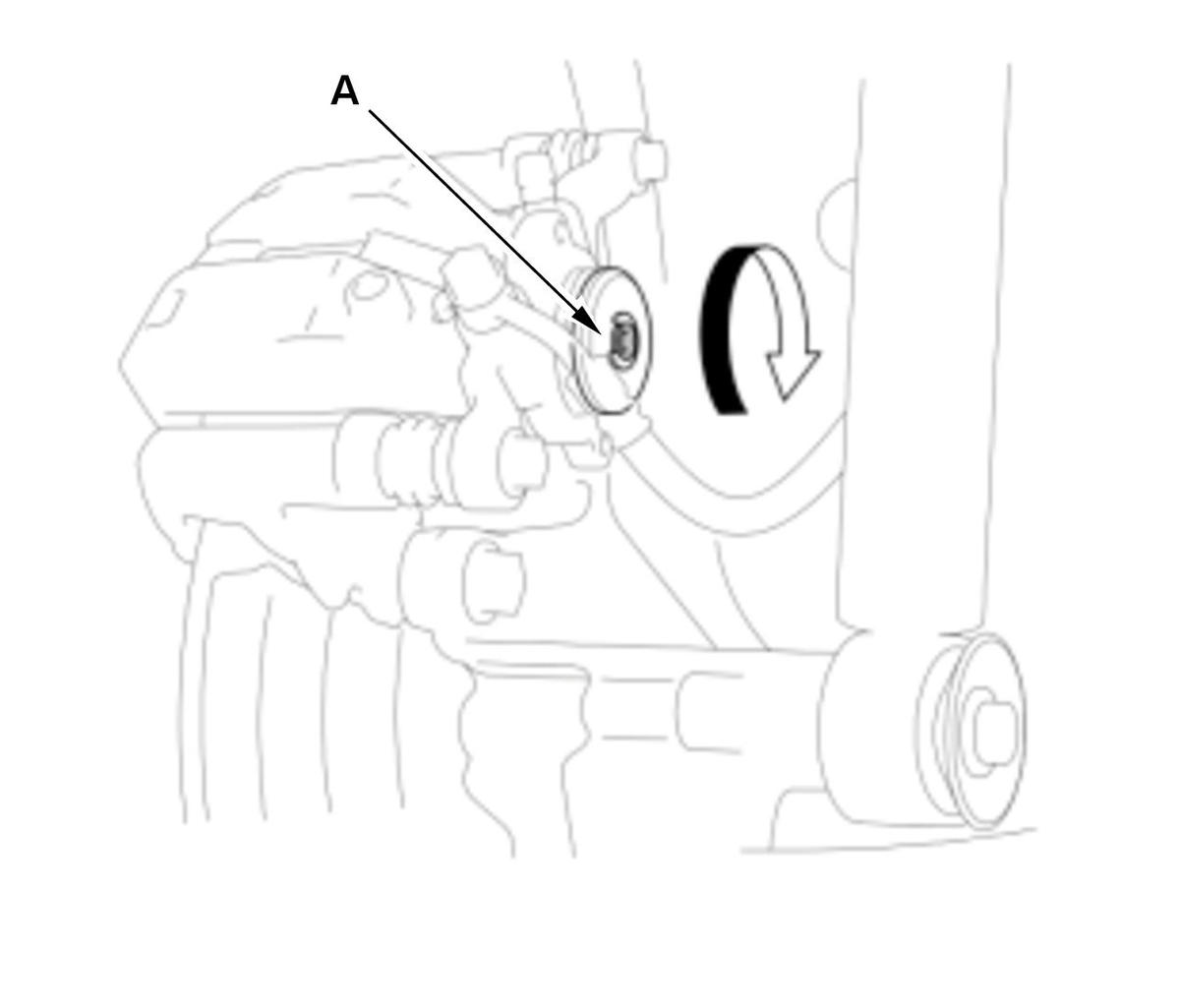

1. Using a TORX driver, turn the spindle shaft (A) clockwise until parking brake is released.
