System Indicator

WARNING: This page is about a different variant/trim than selected.

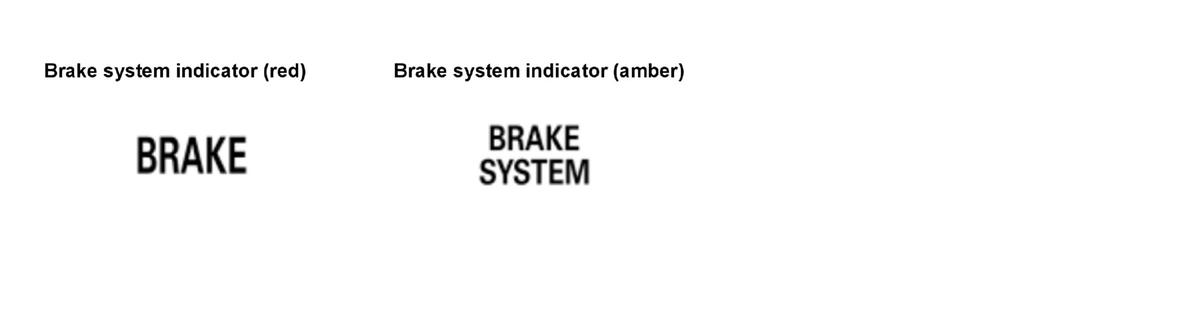

This system has two indicators on the gauge control module.

Courtesy of HONDA, U.S.A., INC.

NOTE: For locations of each indicator, refer to gauge control module component location index .

When the system is OK, each indicator comes on for about 2 seconds after turning the vehicle to the ON mode, then it goes off. If the parking brake is applied, the brake system indicator (red) is still ON.
