Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

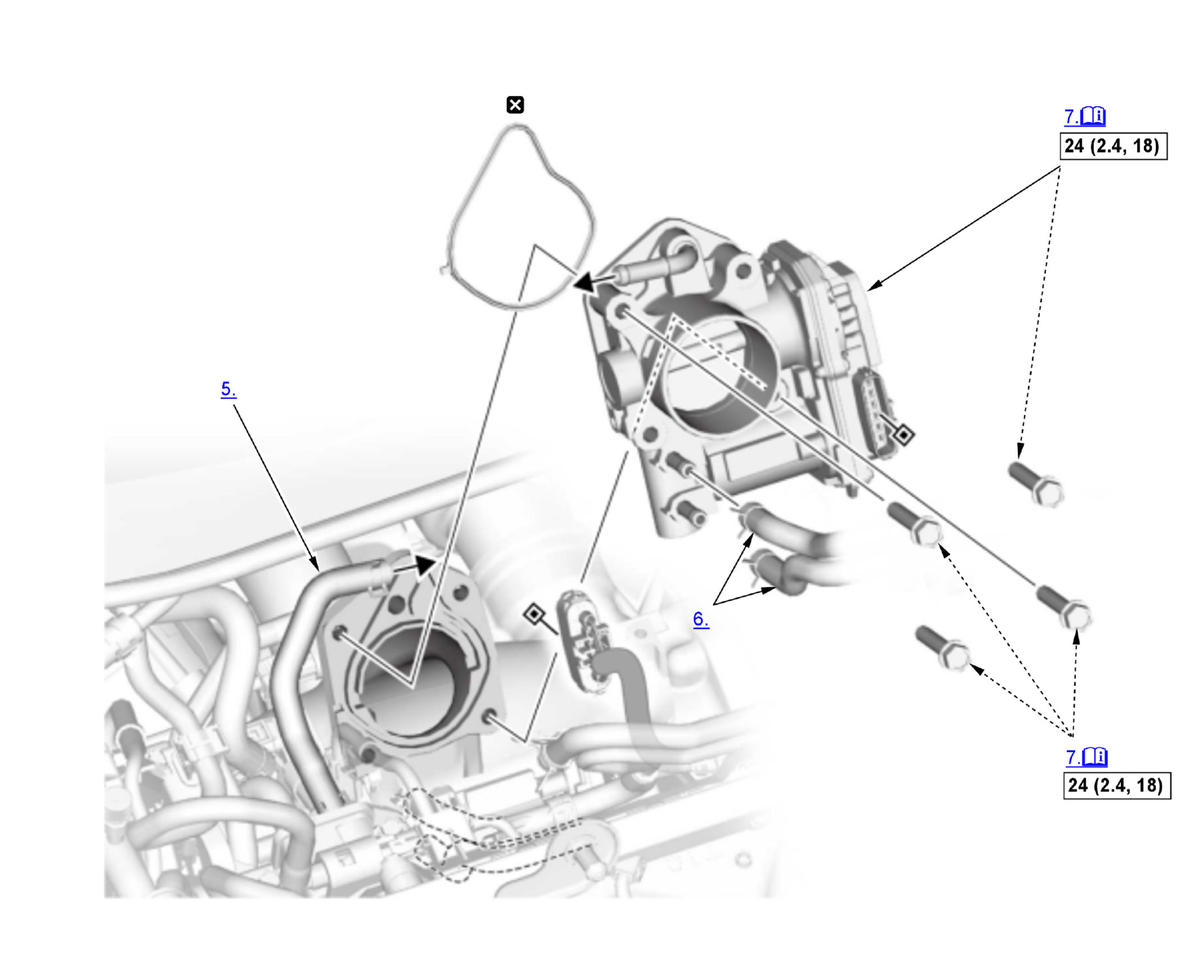

Fig 1: Exploded View Of Throttle Body Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

Replace

TP POSITION CHECK - Select

1. Select the PGM-FI System with the HDS.

2. Select the ETCS (TAC) TEST in the Function Test Menu with the HDS.

3. Select TP POSITION CHECK and clear the throttle position (TP) learned value.

4. Turn the vehicle to the OFF (LOCK) mode.

5. Turn the vehicle to the ON mode, and wait 2 seconds without pressing the accelerator pedal.

Intake Air Resonator - Remove
Air Cleaner - Remove
EVAP Purge Hose - Disconnect
Water Bypass Hoses - Disconnect and Plug
Throttle Body - Remove
Note for installation
- Tighten the throttle body mounting bolts in a cross pattern in three steps;
- - Tighten the bolts until they sit on the throttle body.
  - Tighten the bolts until the gasket is compressed and both parts are contacted.
  - Tighten the bolts to specified torque.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
Engine Coolant - Refill
PCM - Reset
