Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

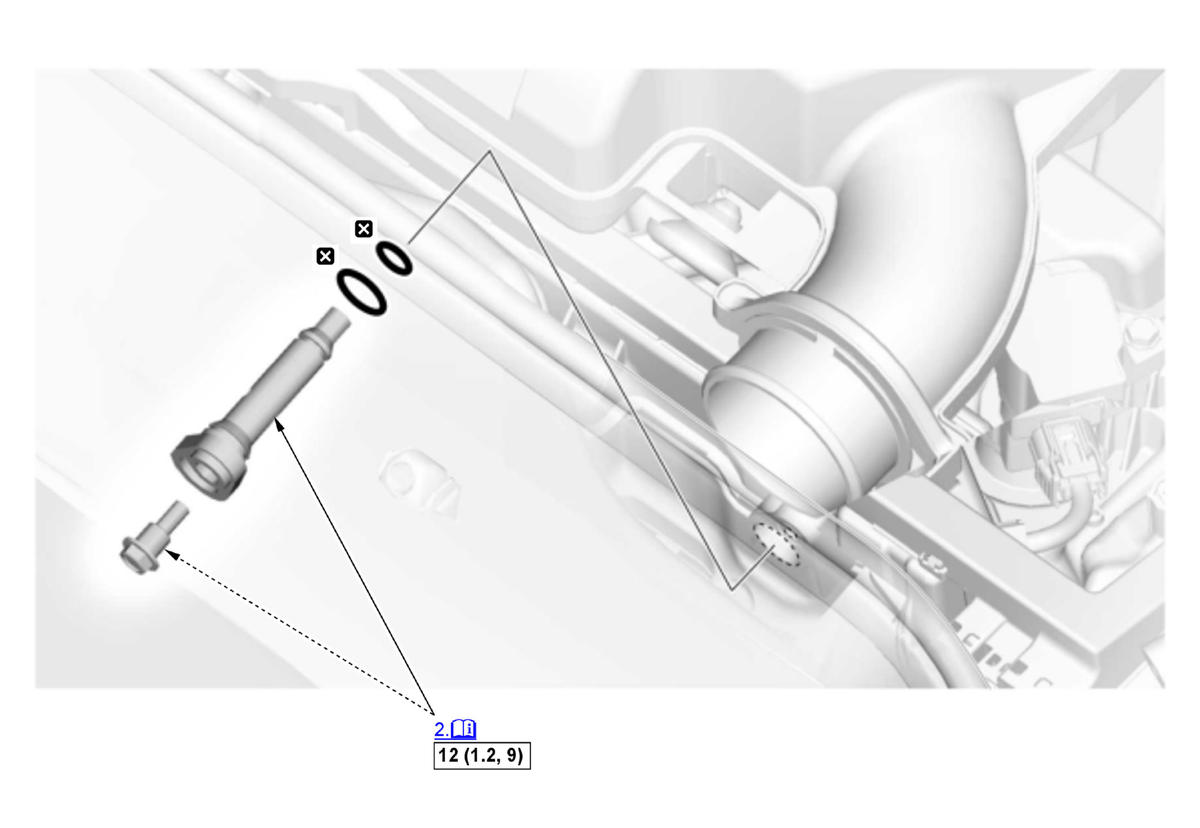

Fig 1: Exploded View Of PCV Valve Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Air Intake Tube B - Remove
PCV Valve - Remove
NOTE: Take care not to spill any oil on the hot engine.

Note for installation

Make sure the O-rings are in place.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
