Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

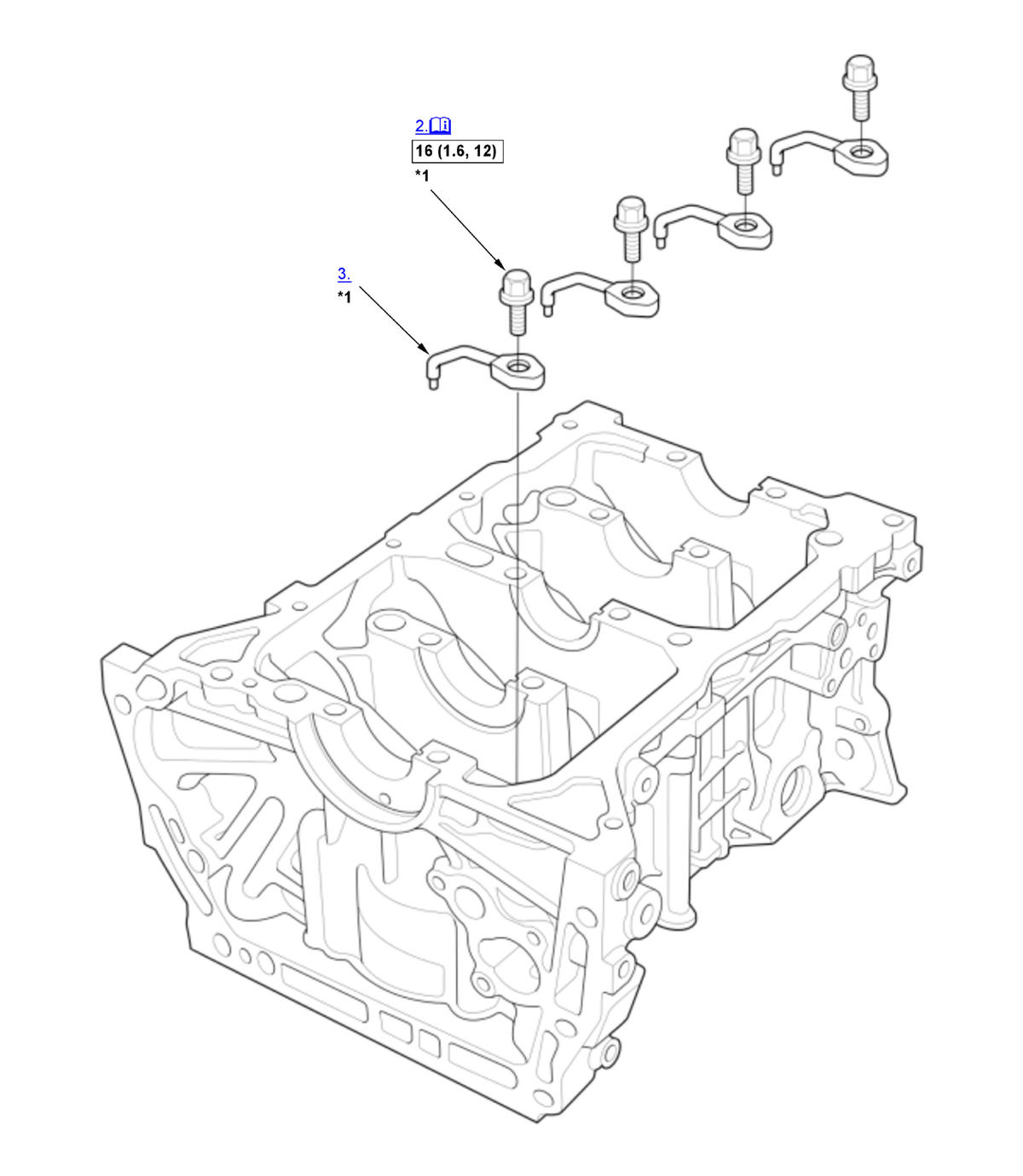

Fig 1: Exploded View Of Engine Oil Jet And Bolt Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
*1	These parts have inspection items

Crankshaft - Remove
Oil Jet Bolt - Remove
Note for installation

Apply new engine oil to the threads and flange.
Oil Jet - Remove
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
