Camshaft Timing Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Cylinder Head Cover - Remove
  2. Camshaft Timing - Inspect

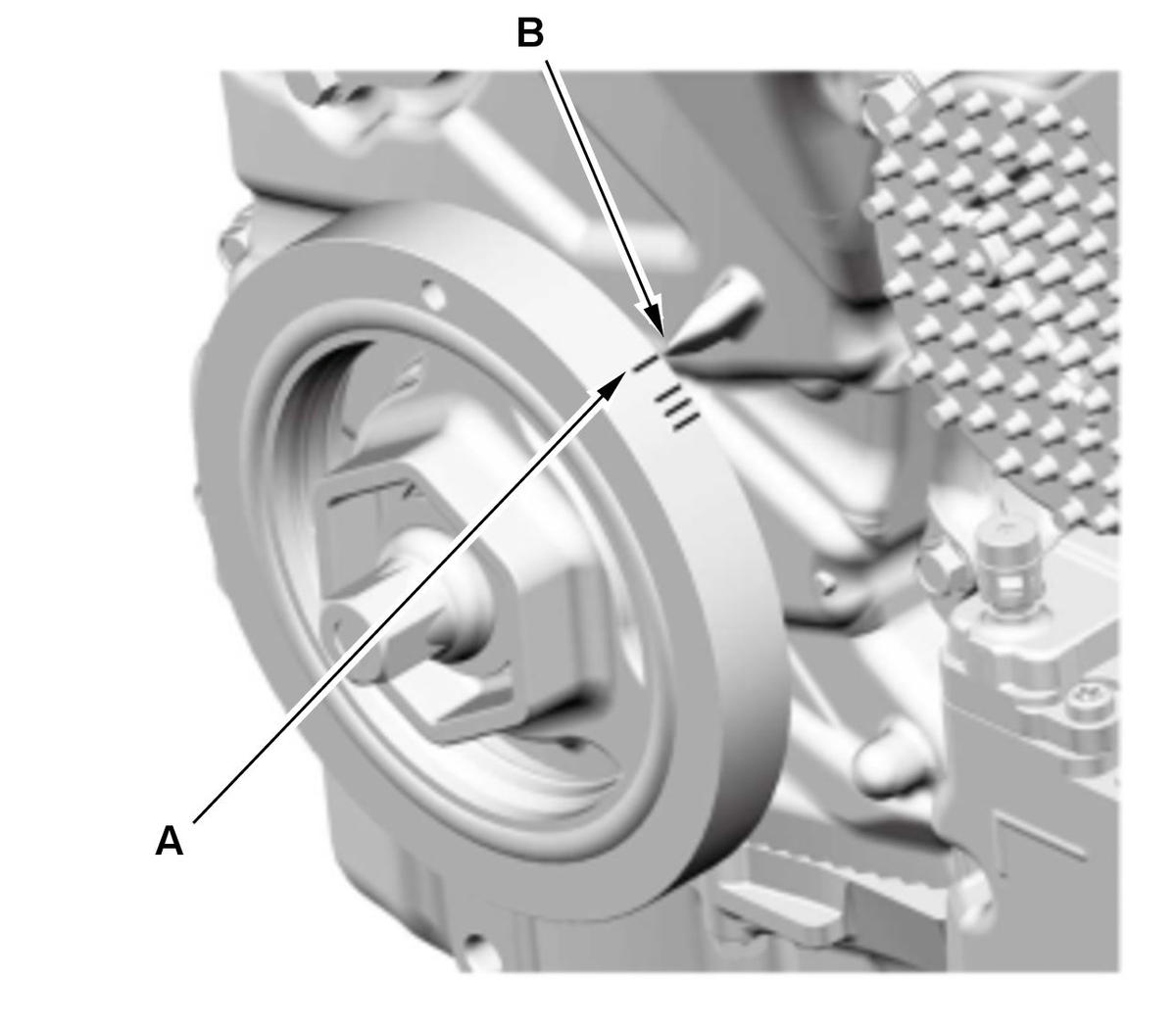

    GHH378283Courtesy of HONDA, U.S.A., INC.
    		 1. Turn the crankshaft to align No. 1 position at top dead center (TDC); the white mark (A) on the crankshaft pulley lines up with the pointer (B).

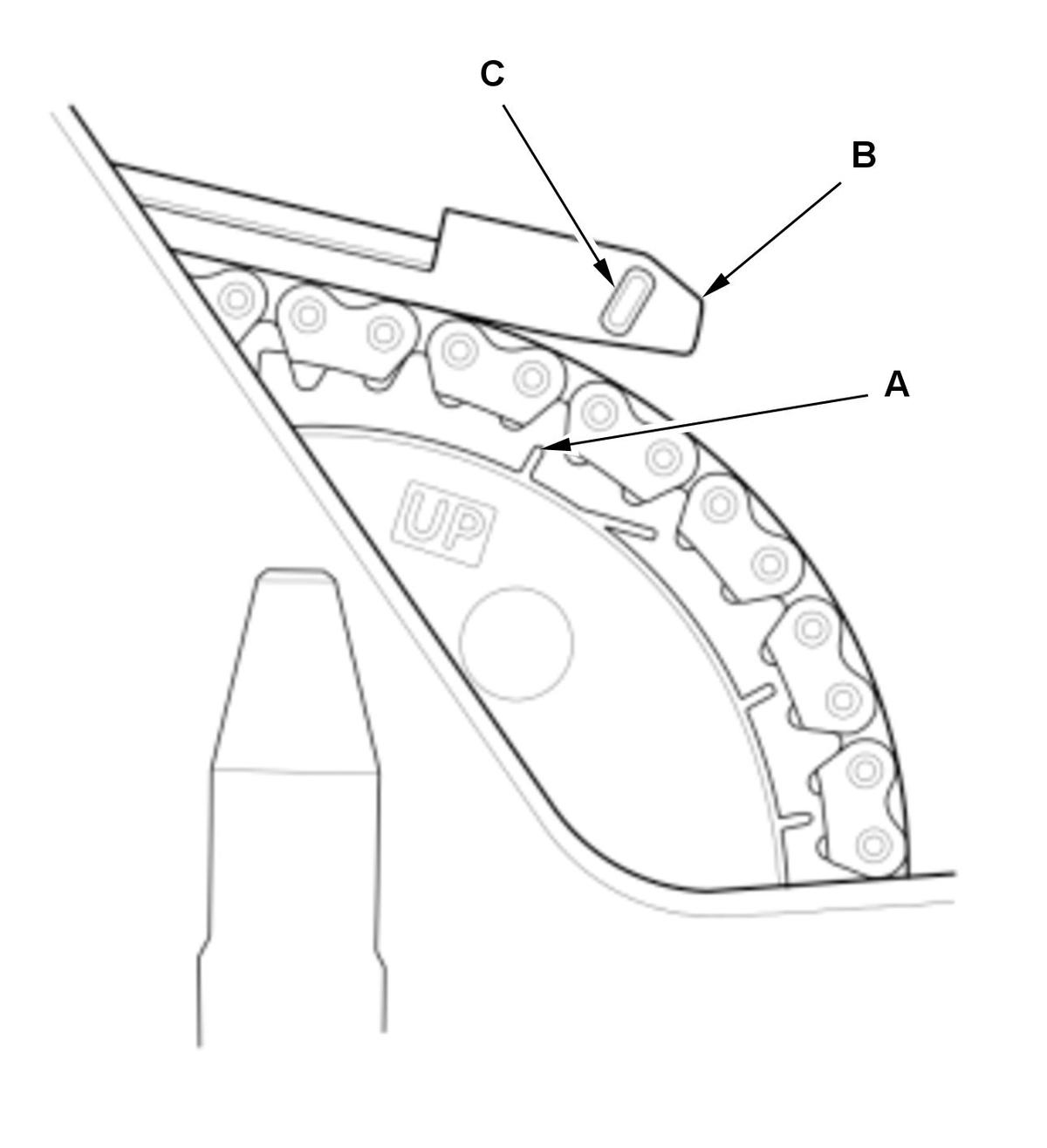

    GHH378284Courtesy of HONDA, U.S.A., INC.
    		 2. Check the No. 1 piston at top dead center (TDC). The mark (A) on the exhaust camshaft sprocket should align up with the mark (C) on cam chain guide B.

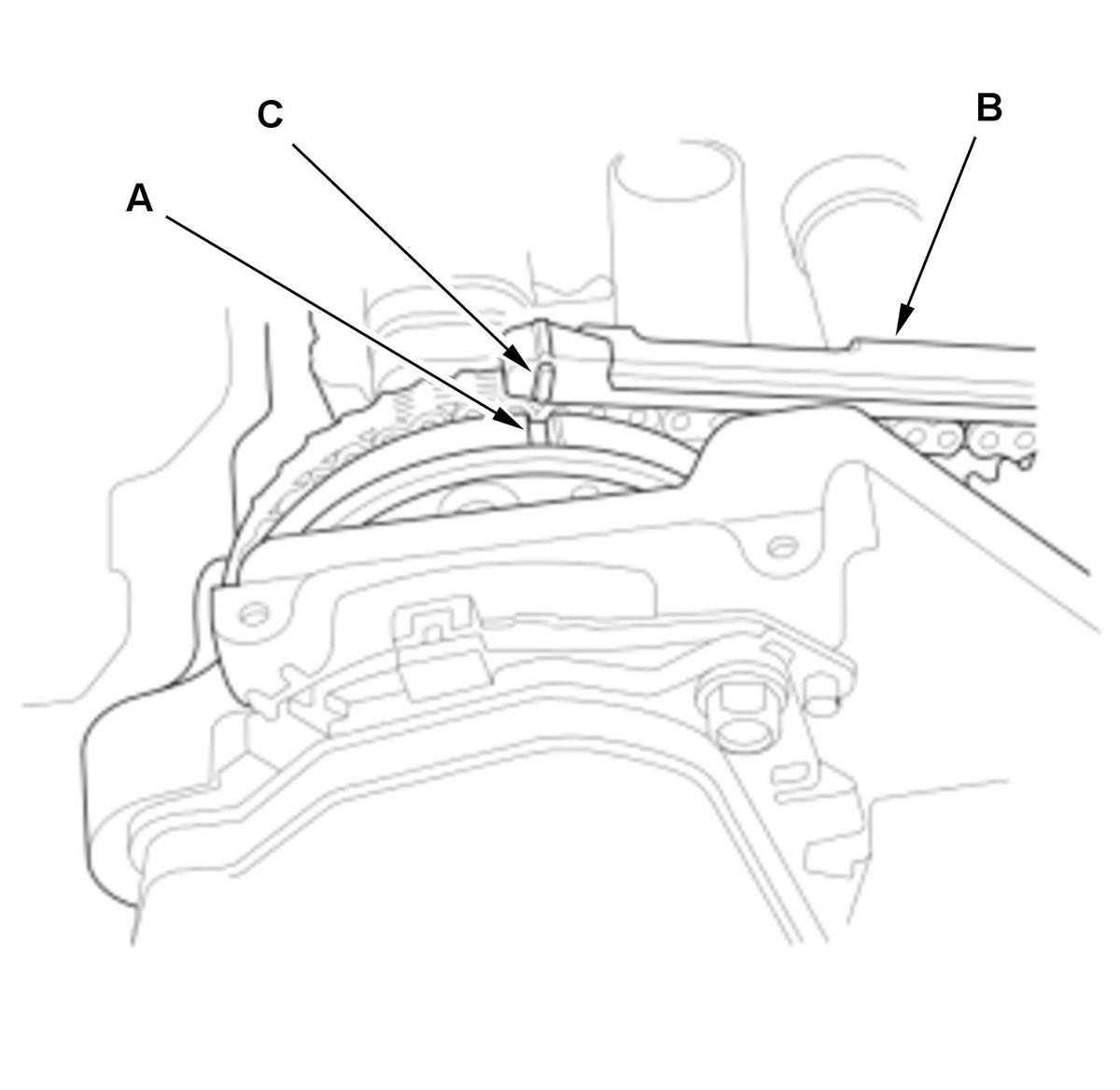

    GHH378285Courtesy of HONDA, U.S.A., INC.
    		 3. Check the mark (A) on the VTC actuator and the mark (C) on cam chain guide B, the marks should align. If the marks are not aligned, remove the cam chain and reinstall the cam chain properly .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
