PGM-FI System Description
For locations of each component on vehicle, refer to Component Location Index

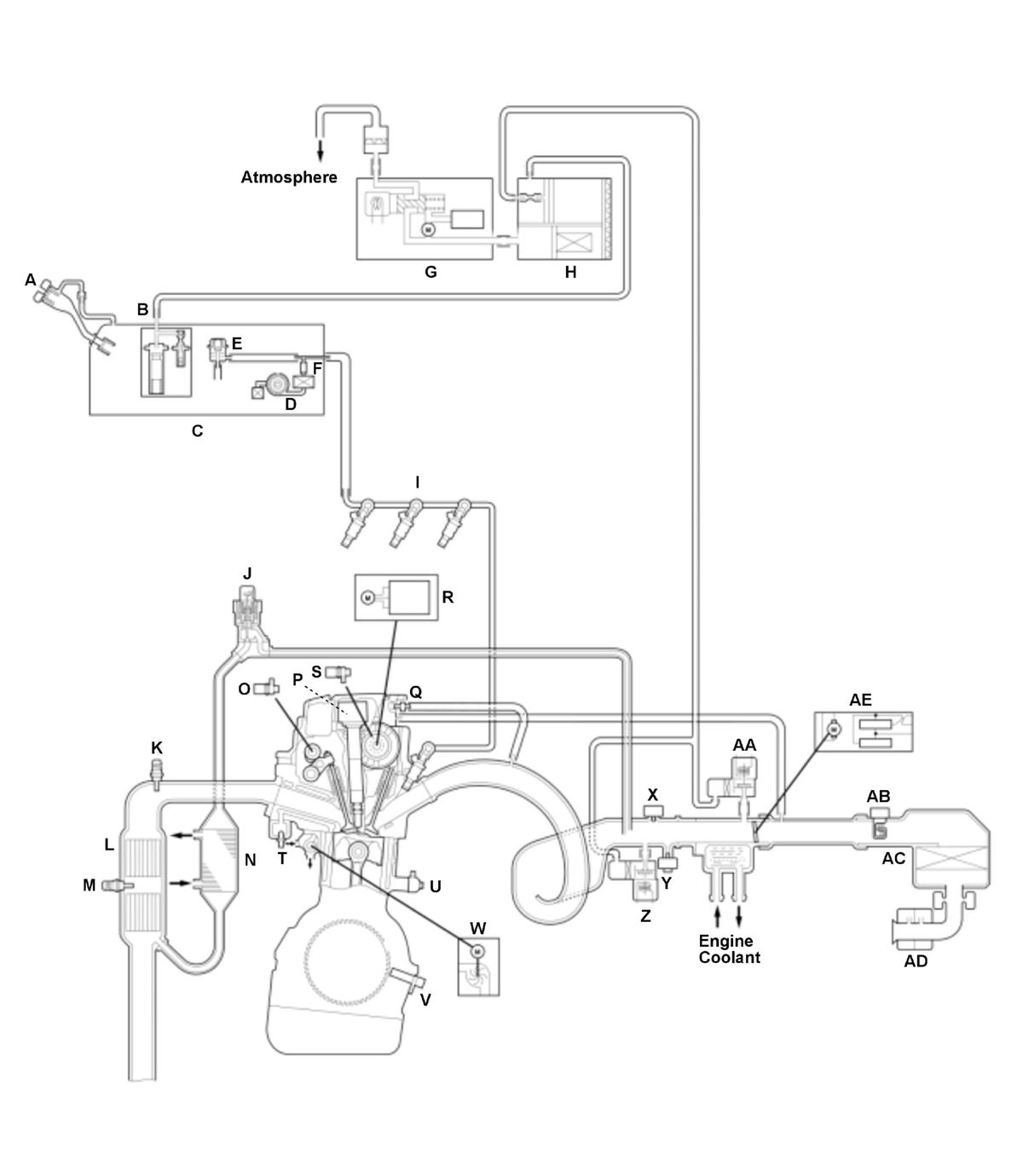

Components
| A | FUEL FILL CAP | Q | PCV VALVE |
| B | FUEL TANK VAPOR CONTROL VALVE | R | ELECTRIC VTC MOTOR |
| C | FUEL TANK | S | CMP SENSOR A |
| D | FUEL PUMP | T | ECT SENSOR 1 |
| E | FUEL PRESSURE REGULATOR | U | KNOCK SENSOR |
| F | FUEL FILTER | V | CKP SENSOR |
| G | EVAP LEAK CHECK MODULE | W | ELECTRIC ENGINE COOLANT PUMP |
| H | EVAP CANISTER | X | IAT SENSOR 2 |
| I | FUEL INJECTOR | Y | MAP SENSOR |
| J | EGR VALVE | Z | EVAP CANISTER PURGE VALVE 1 |
| K | A/F SENSOR (SENSOR 1) | AA | EVAP CANISTER PURGE VALVE 2 |
| L | CATALYTIC CONVERTER | AB | MAF SENSOR/IAT SENSOR 1 |
| M | SECONDARY HO2S | AC | AIR CLEANER |
| N | EGR COOLER | AD | RESONATOR |
| O | CMP SENSOR B | AE | THROTTLE BODY |
| P | IGNITION COIL |
Electronic Control
The powertrain control module (PCM) consists of a CPU memory (storage unit) and inputs/outputs that control the fuel injection, injection timing, and electronic throttle control system (ETCS).
Fail-Safe Function
When a malfunction occurs in the signal from a sensor or from another control unit, the PCM ignores that signal and substitutes a pre-programmed value that allows the engine to continue running. This causes a Confirmed DTC to be stored and the MIL to come on.
Updated Function
The PCM has a rewritable ROM. The ROM can acquire the latest software version.
MIL Bulb Check
When the vehicle is turned to the ON mode, the PCM turns on the MIL via the F-CAN circuit for about 15 to 20 seconds to check the bulb condition.
Self Shut Down (SSD) Mode
After the vehicle is turned to the OFF (LOCK) mode, the PCM stays on for up to an hour. If a PCM connector is disconnected during this time, the PCM may be damaged. To cancel the SSD, jump the SCS line with the HDS after the vehicle is turned to the OFF (LOCK) mode.
Two Drive Cycle Detection Method
The DTCs are detected with the one or two driving cycle method in the PCM. Specific DTCs which are considered as a not intermittent failure apply the two driving cycle method.
When a malfunction occurs in the signal from a sensor or from another control unit in the first drive cycle, the PCM stores a pending DTC. The MIL does not come on at this time. If the failure continues in the second drive cycle, the PCM stores a confirmed DTC and turns on the MIL.
Injection Control
Fuel injection controls include fuel injection amount control, fuel cut control, and fuel pump control. Adaptive PGM-FI (programmed-fuel injection) technology enables accurate fuel controls, which contributes to increasing engine power and decreasing fuel consumption.
Air fuel ratio control is part of fuel injection control and comprises the stops of:
- Calculating basic injection amount from intake air flow amount and engine speed
- Calculating air fuel ratio correction value from the oxygen density in the exhaust gas and reflecting the calculated values to the injection amount
Air fuel ratio control stops feedback under the following conditions in order to maintain operational performance and catalytic protection.
- When starting the engine or during fuel increase after the engine is started
- While the engine coolant is cold
- During fuel increase under high load
- During fuel increase at high engine speed
- During fuel cut-off at deceleration

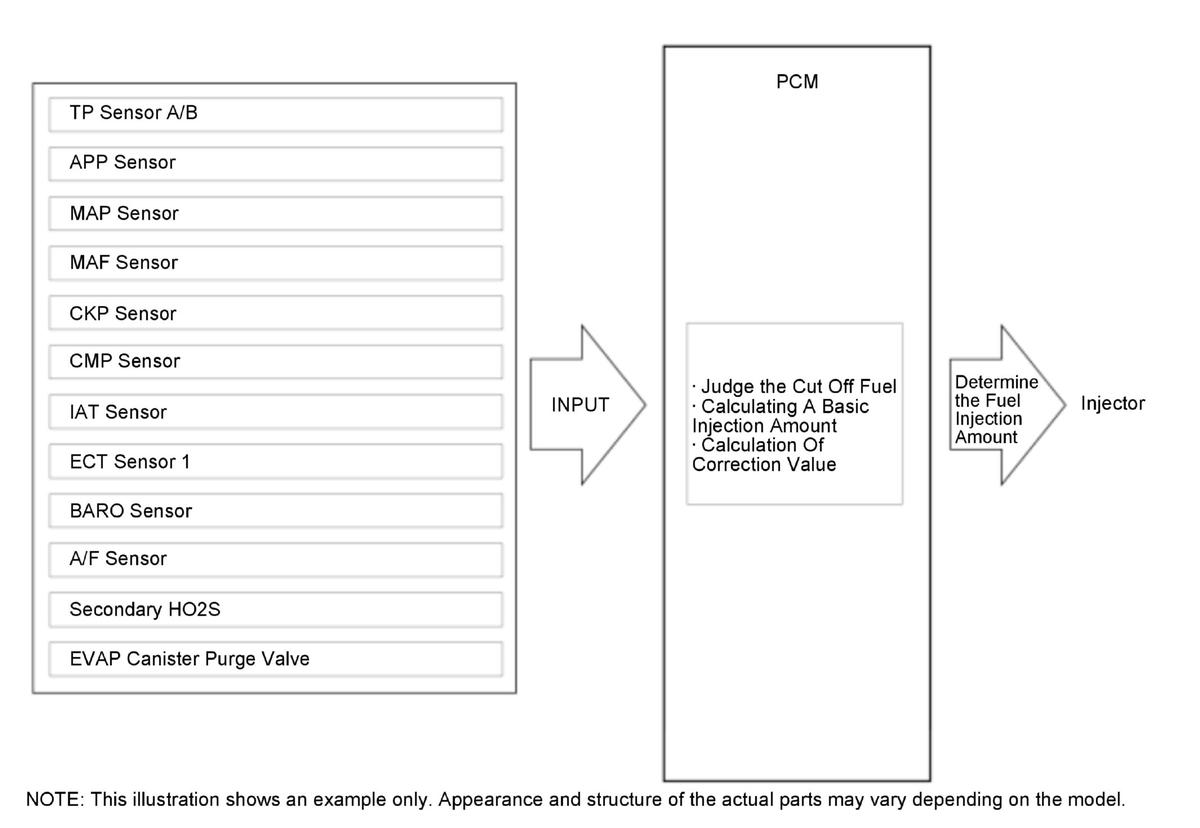

Fuel Injection
The fuel injection duration is determined by adding correction values to a basic injection duration.
The powertrain control module (PCM) controls the amount of fuel injection by the length of time the injector is energized.
For locations of each component on vehicle, refer to Component Location Index
Fuel Injection Timing
The fuel injection timing is determined by the PCM, which calculates the injection time for each cylinder based on the signals from the crankshaft position (CKP) sensor and the camshaft position (CMP) sensor. The PCM then controls the time to energize the injector.

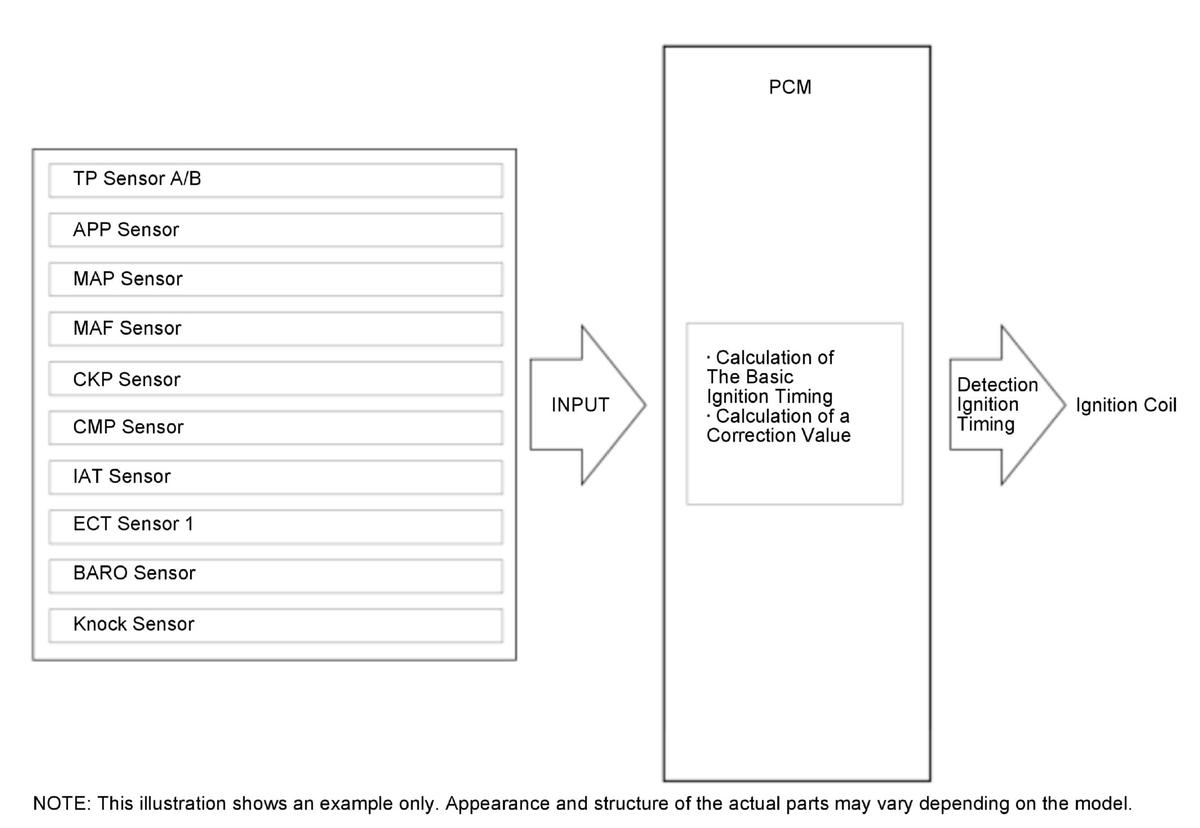

Ignition Timing Control
The powertrain control module (PCM) contains the memory for basic ignition timing at various engine speeds and manifold absolute pressures. It also adjusts the ignition timing according to engine coolant temperature and intake air temperature.
For locations of each component on vehicle, refer to Component Location Index
Fuel Cut-off Control
After warming up, during deceleration with the throttle valve slightly opened from the fully closed position, the PCM stops the fuel injection when the engine speed is over the specified value to improve fuel efficiency.
Fuel cut-off at high engine speed
To prevent the engine from damage, the PCM stops the fuel injection when the engine speed is in the limited area (red zone). PCM stops fuel injection while vehicle is driven and while at a stop.
| Fuel cutoff at high engine speed | 6500 RPM | |
