Engine Block Assembly Component Location Index

WARNING: This page is about a different variant/trim than selected.

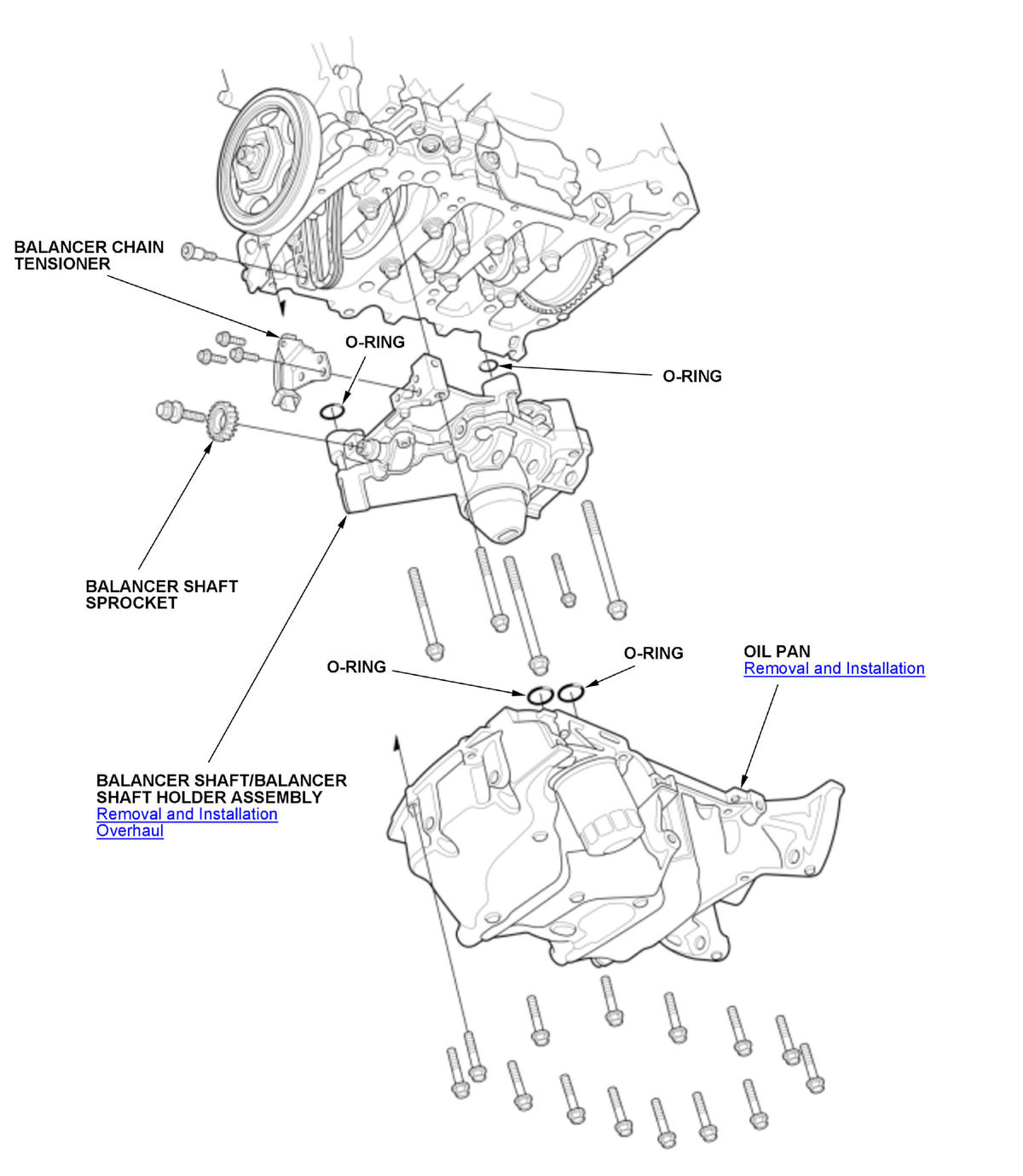

GHH378332Courtesy of HONDA, U.S.A., INC.

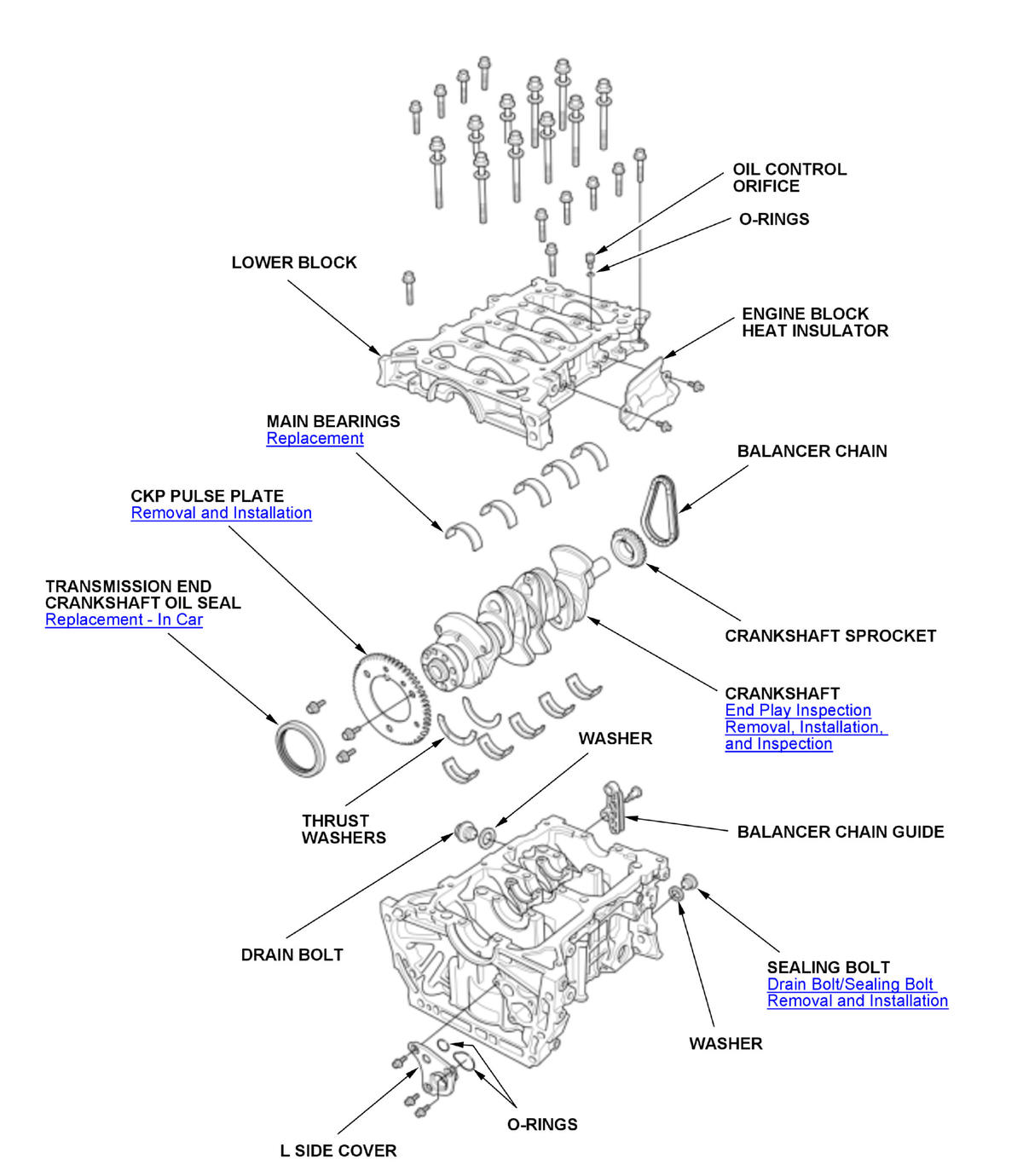

GHH378333Courtesy of HONDA, U.S.A., INC.

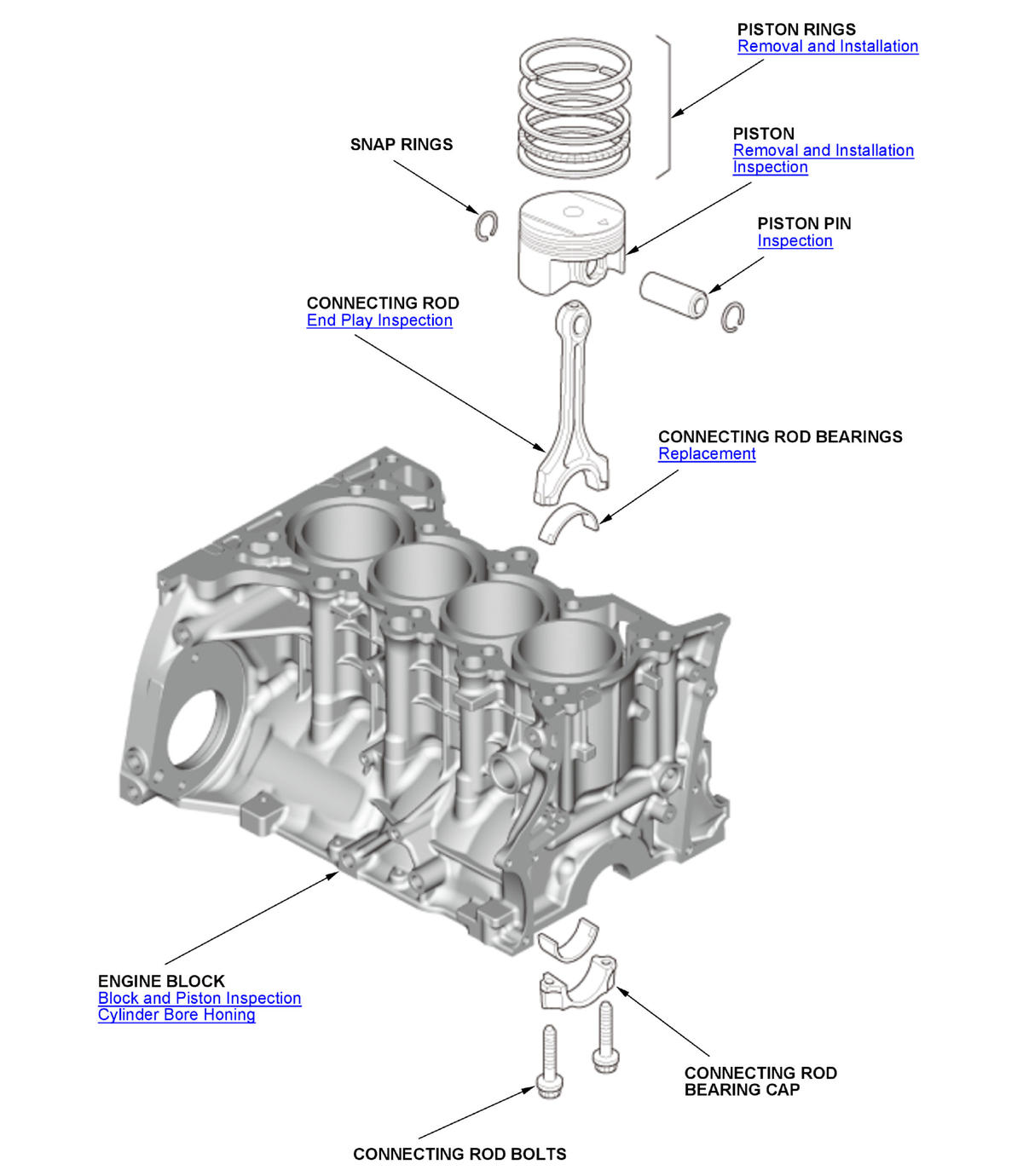

GHH378334Courtesy of HONDA, U.S.A., INC.
