Interior Lights Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

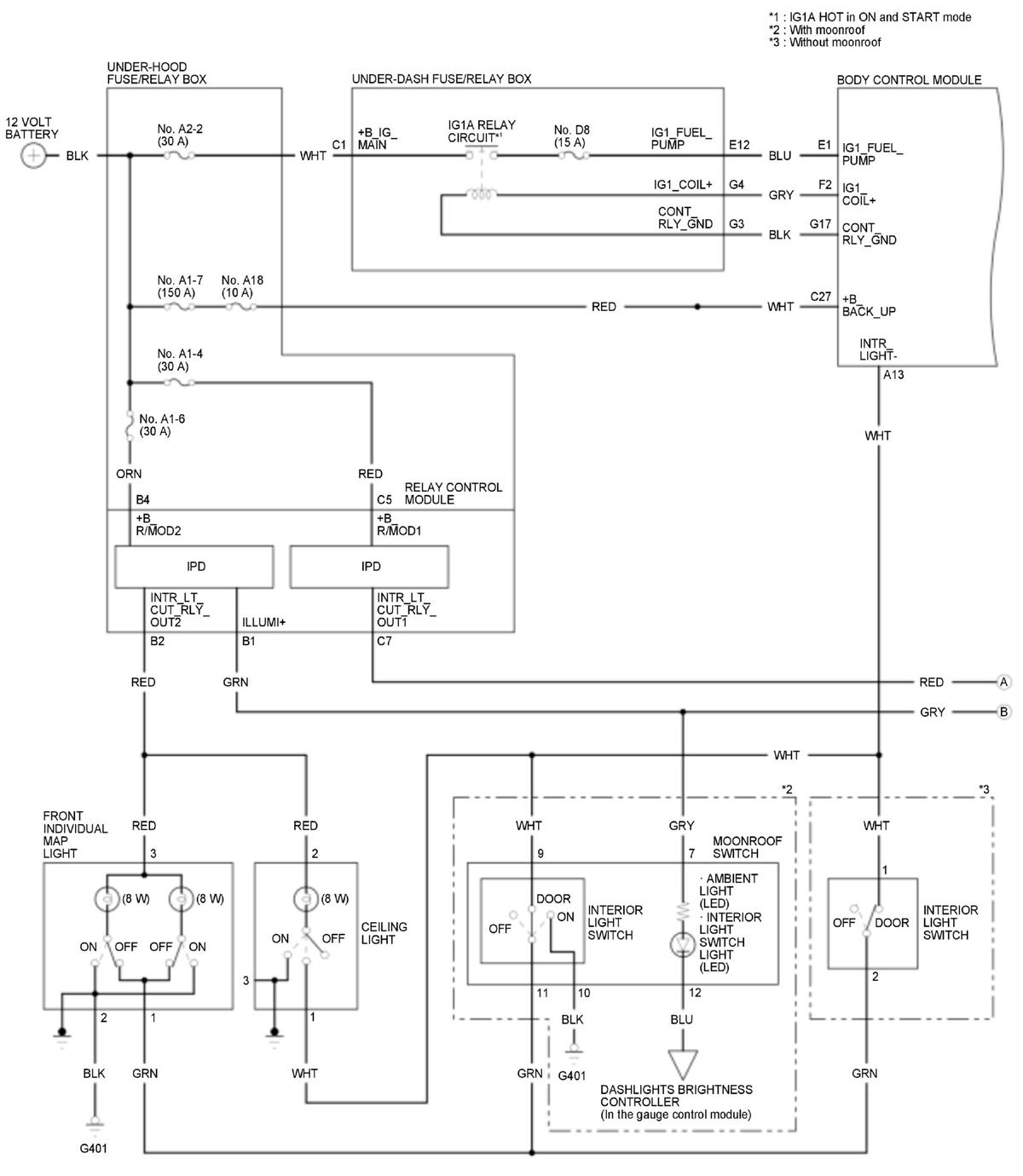

GHH379573

Courtesy of HONDA, U.S.A., INC.

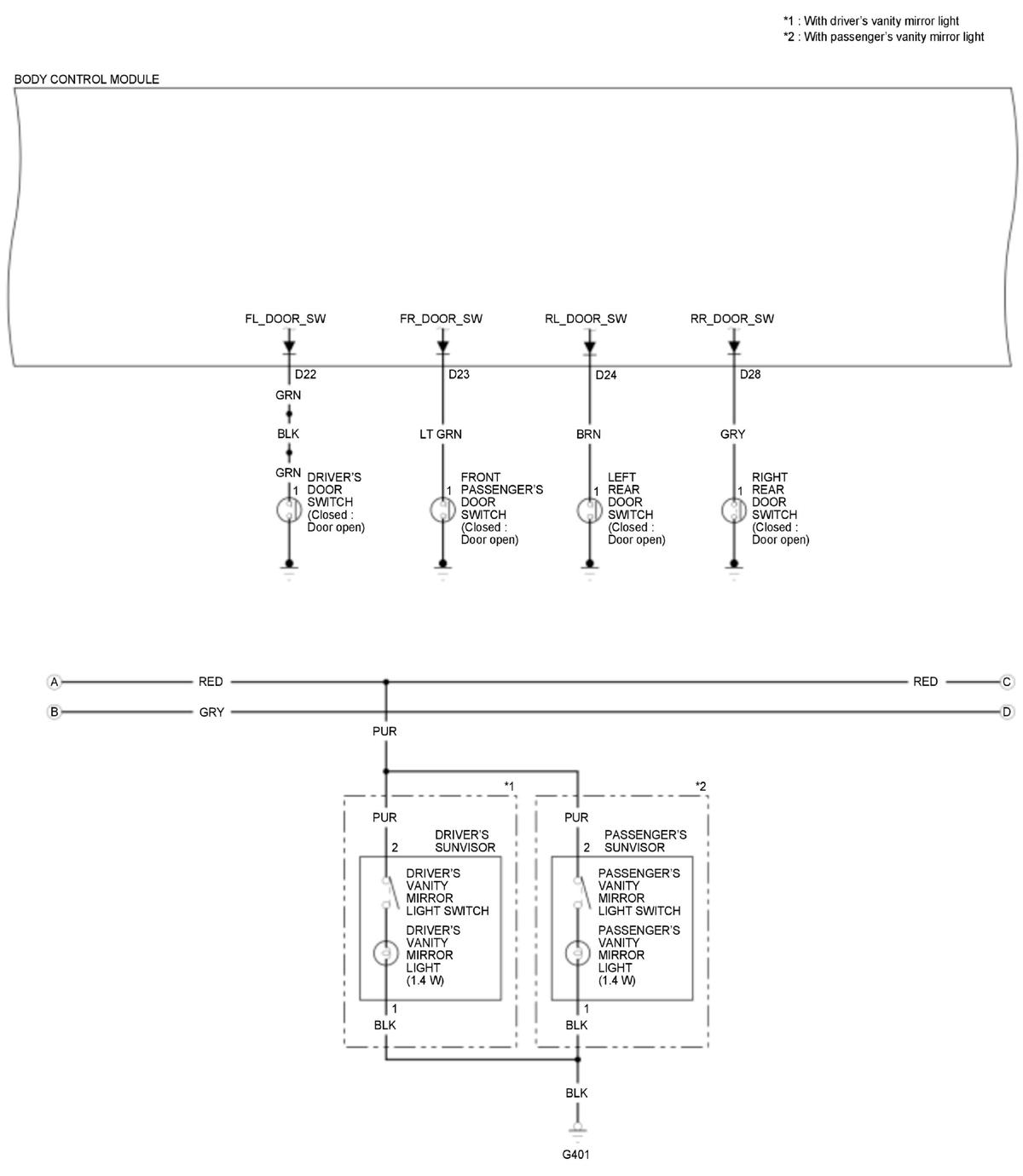

GHH379574

Courtesy of HONDA, U.S.A., INC.

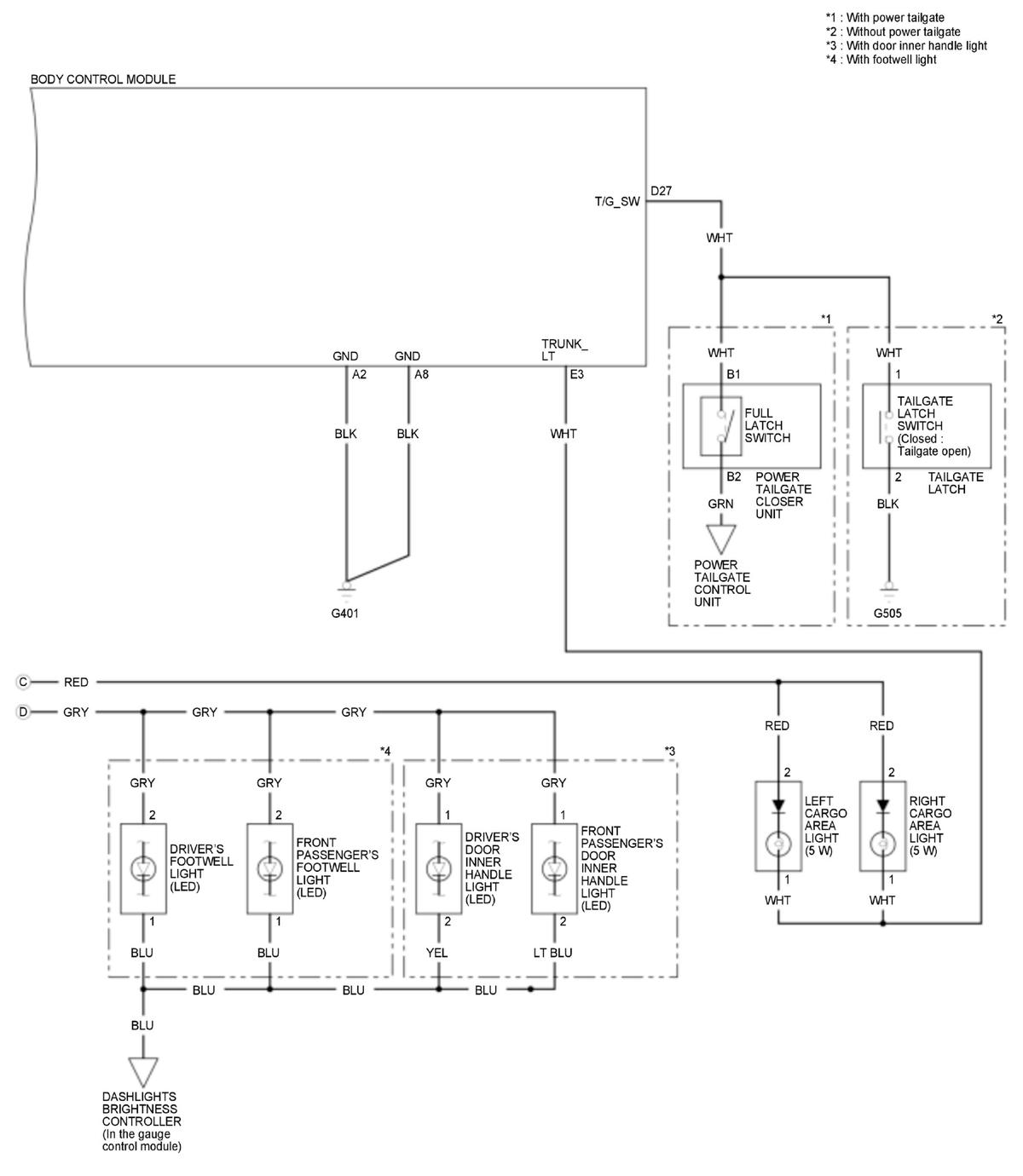

GHH379575

Courtesy of HONDA, U.S.A., INC.
