Entry Lights Control System Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

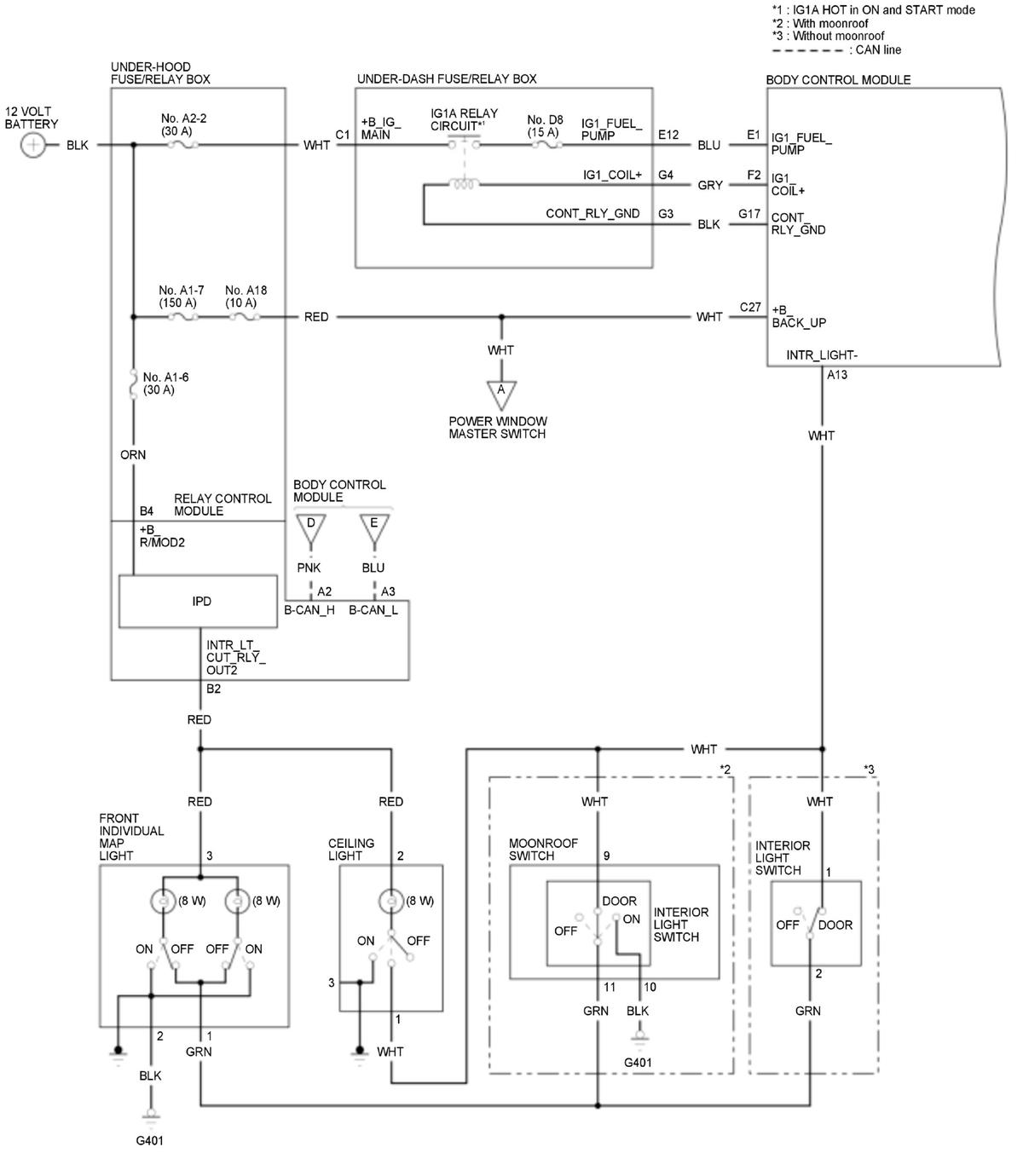

GHH379570Courtesy of HONDA, U.S.A., INC.

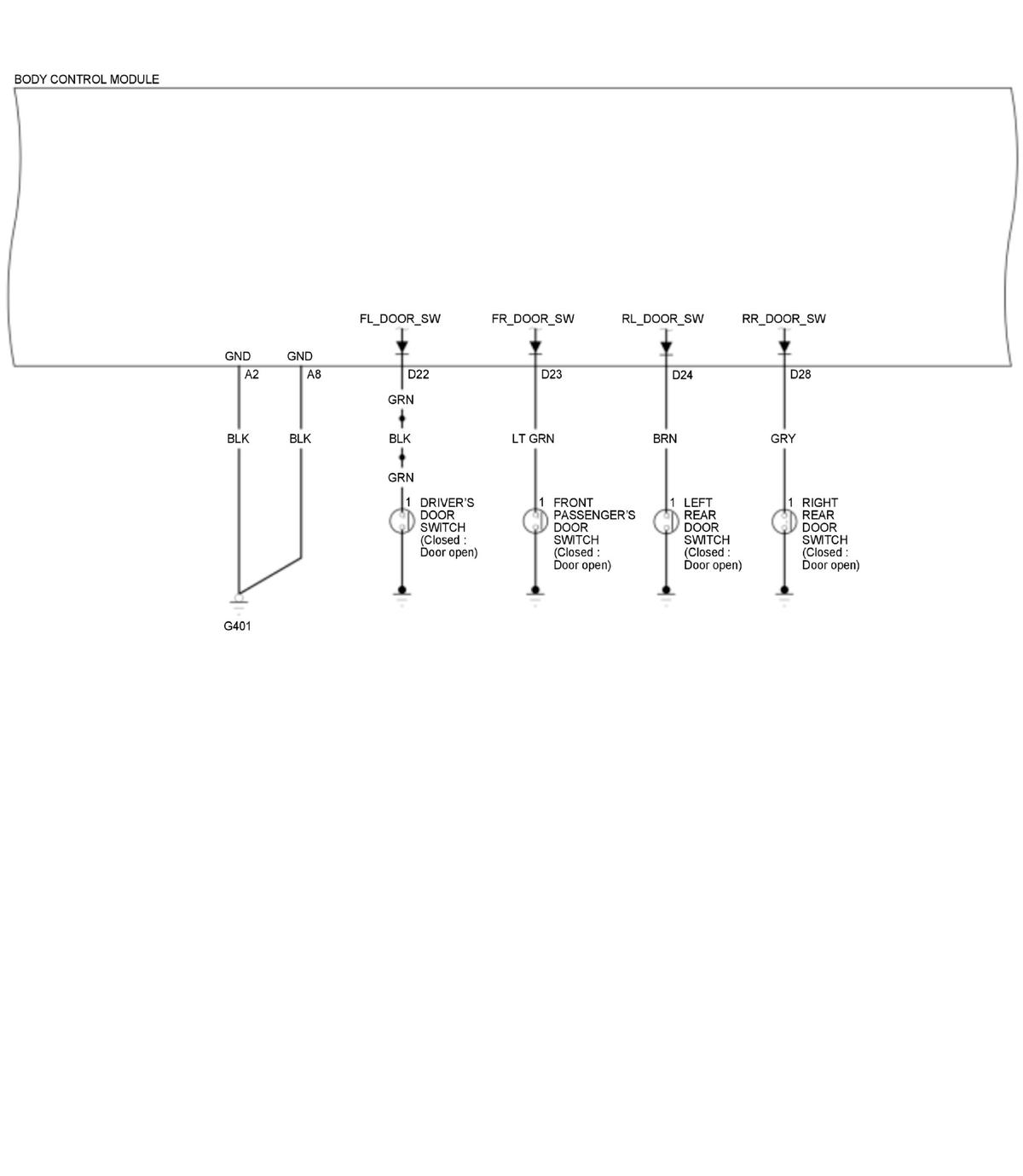

GHH379571Courtesy of HONDA, U.S.A., INC.

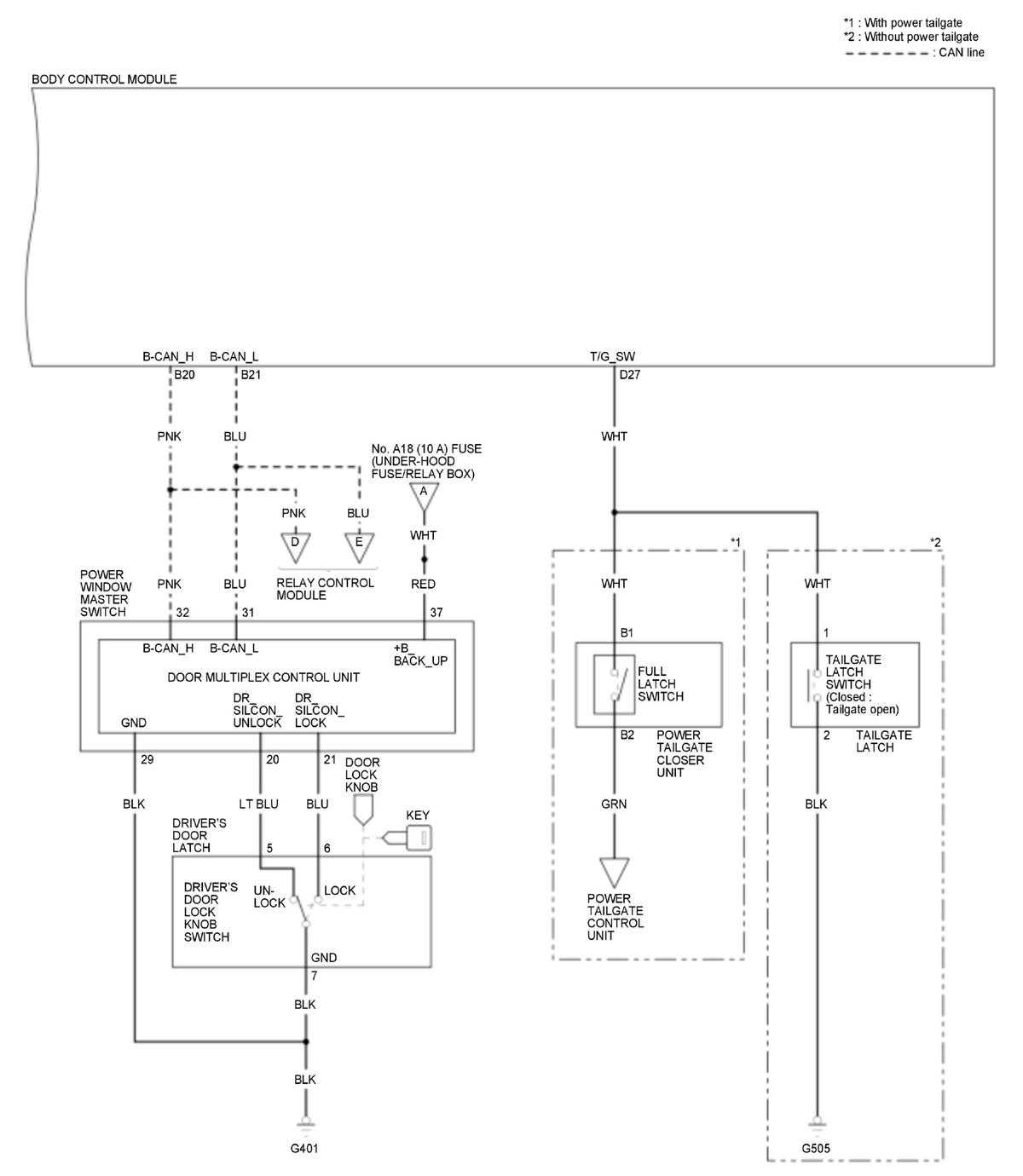

GHH379572Courtesy of HONDA, U.S.A., INC.
