Collision Mitigation Braking System (CMBS) Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

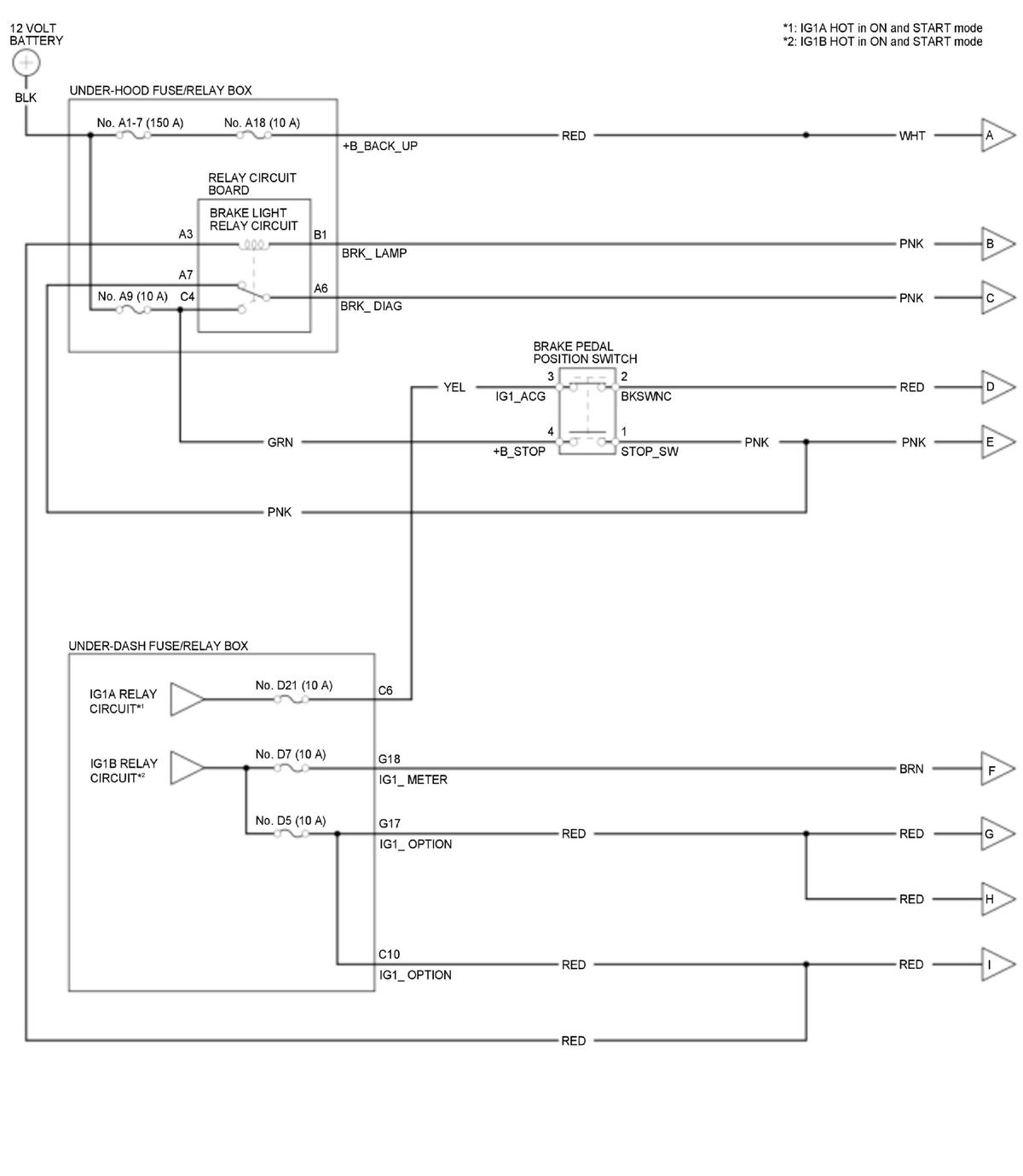

GHH376064Courtesy of HONDA, U.S.A., INC.

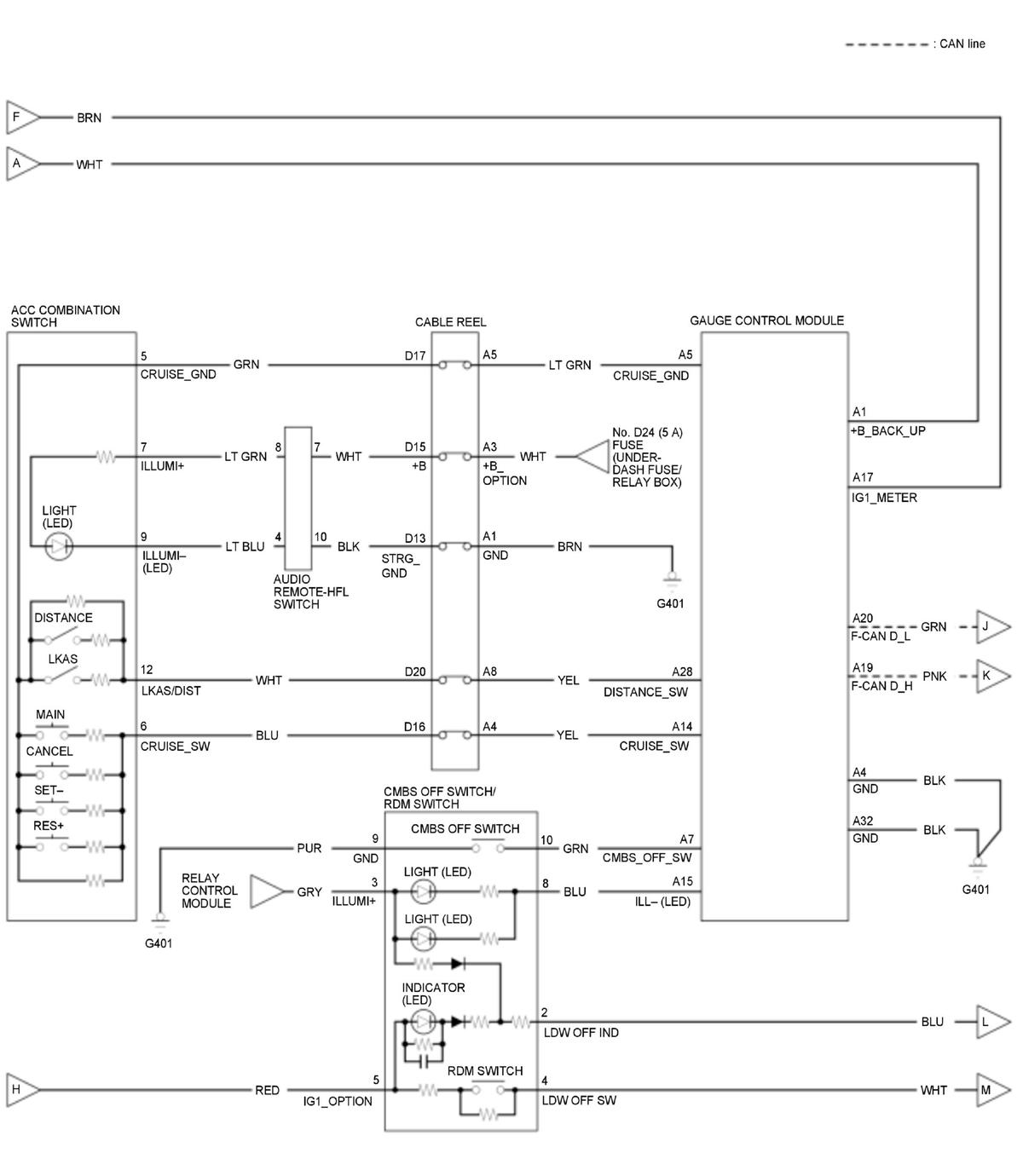

GHH376065Courtesy of HONDA, U.S.A., INC.

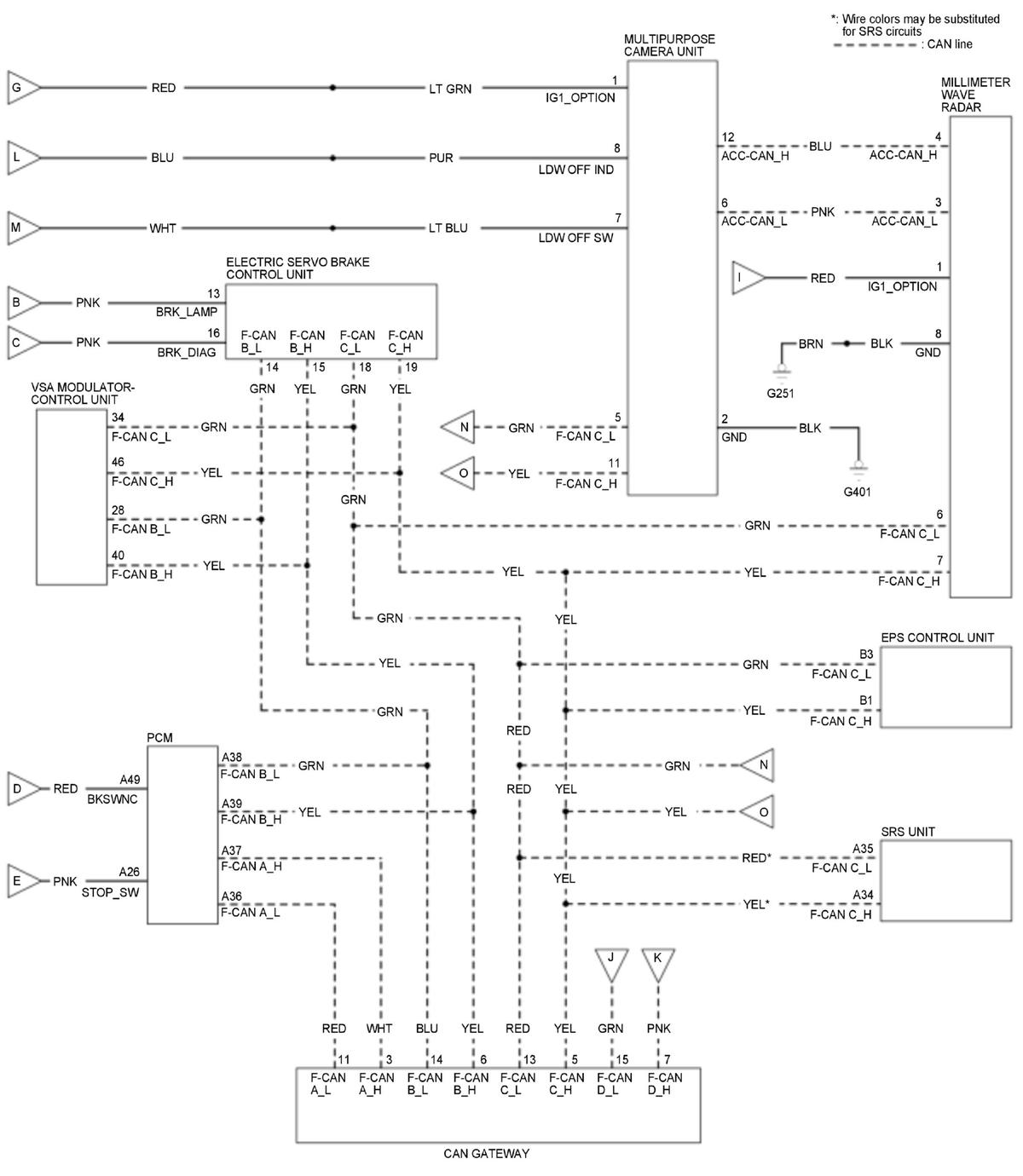

GHH376066Courtesy of HONDA, U.S.A., INC.
