Dirt or Dust Detective Function (CLEAN FRONT WINDSHIELD Indication)

WARNING: This page is about a different variant/trim than selected.

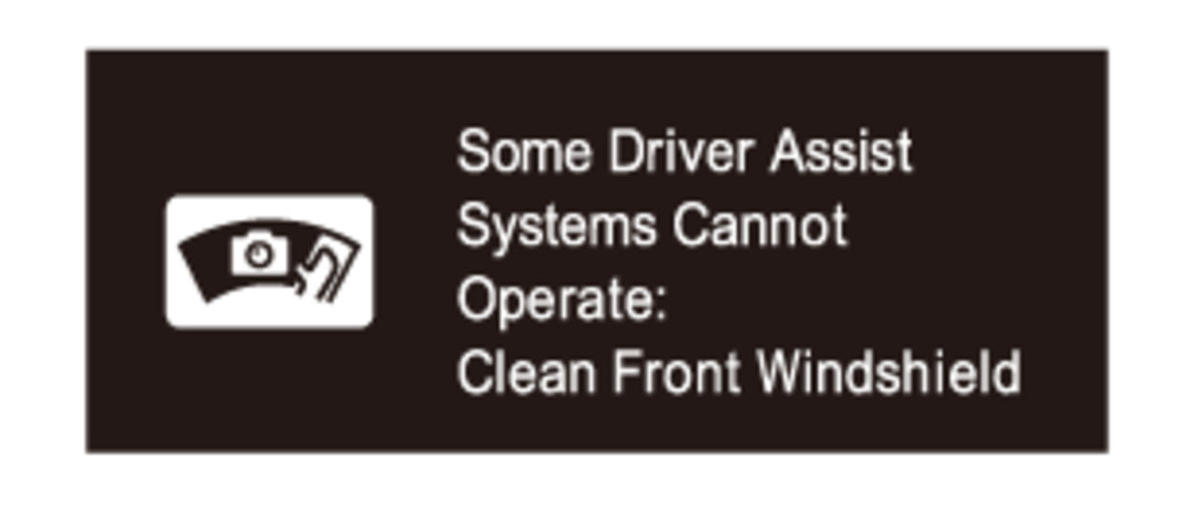

If the following message appears on the MID, the camera lens or the windshield has enough dirt so that the camera view is obstructed, the LKAS stops operating.

Clean any dirt or contamination on the camera lens or the windshield. Once the camera's view is unobstructed, the indicator on the MID turns off and the LKAS automatically turns back to ON.

NOTE:  When millimeter wave radar detected dirt or dust on the multipurpose camera lens or the windshield surface, DTC B2A60-97 is stored as a past failure.

GHH375940Courtesy of HONDA, U.S.A., INC.
