Dirt or Dust Detective Function (Clean Millimeter Wave Radar Indication)
WARNING: This page is about a different variant/trim than selected.

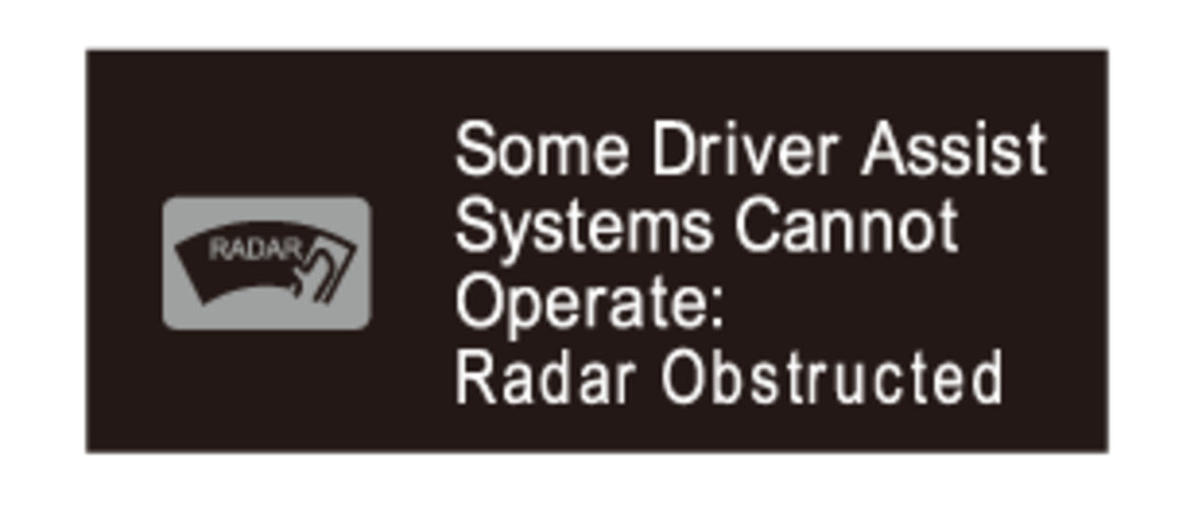

If the millimeter wave radar or front grille gets dirty, the CMBS stops operating and the following message on the MID will appear. Clean the millimeter wave radar and the front grille surface. Once the millimeter wave radar and front grille surface are clean, the message on the MID disappears and the CMBS automatically turns on.
NOTE:
- The following MID message may come on temporarily when passing through an enclosed space, such as tunnel.
- Under the above conditions DTC P2583-97 is stored.
- When it is snowing, the radio waves transmitted and received by the millimeter wave radar may be refracted by the snow or ice attached around the millimeter wave radar such as the front grille. At this time, DTC P2583-76 is stored depending on the situation.
- After DTC P2583-76 is stored, the message (Radar Obstructed) is displayed on the MID at the initial stage, and then the indicators come on.
