Cross Traffic Monitor System Description - System Diagram

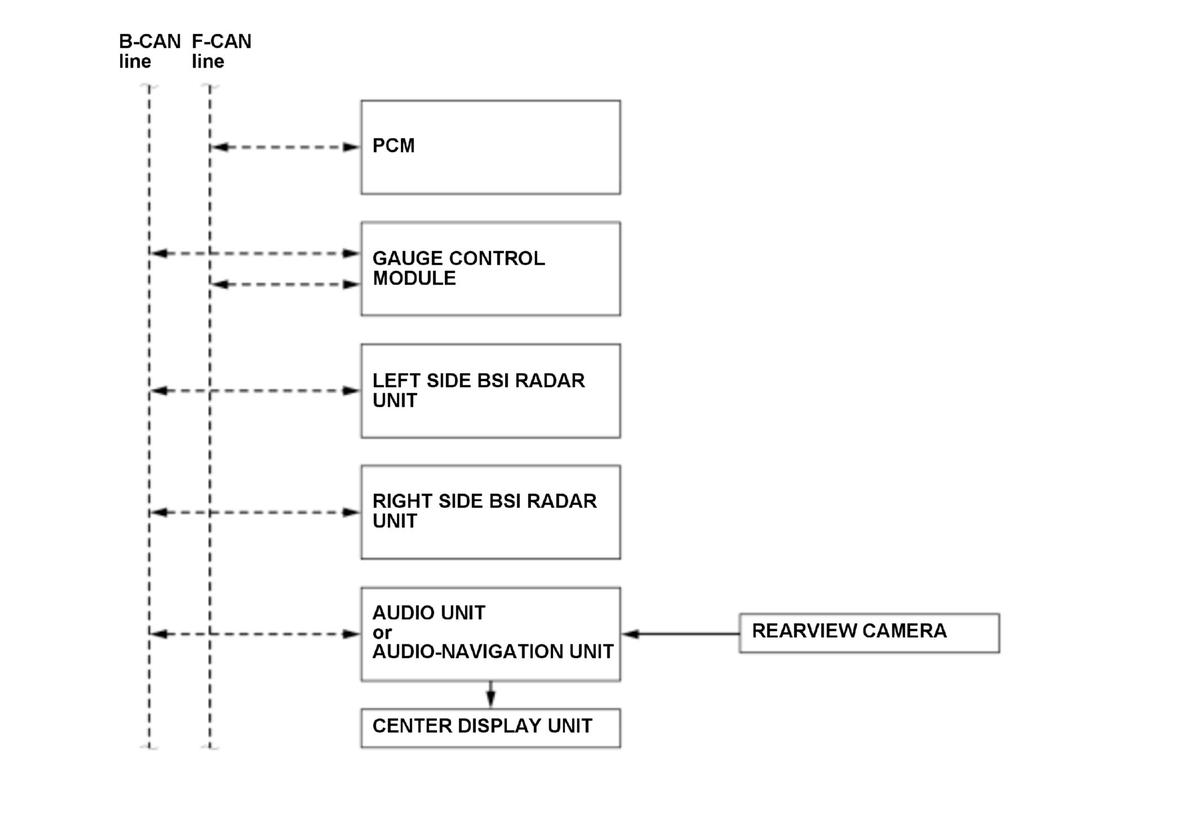

The system diagram of the cross traffic monitor system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

• PCM
• Gauge control module
• Left side BSI radar unit, Right side BSI radar unit
• Audio unit or Audio-navigation unit, Center display unit , Center display unit
• Rearview camera

Courtesy of HONDA, U.S.A., INC.
