Section 64 (Blind Spot Information System - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

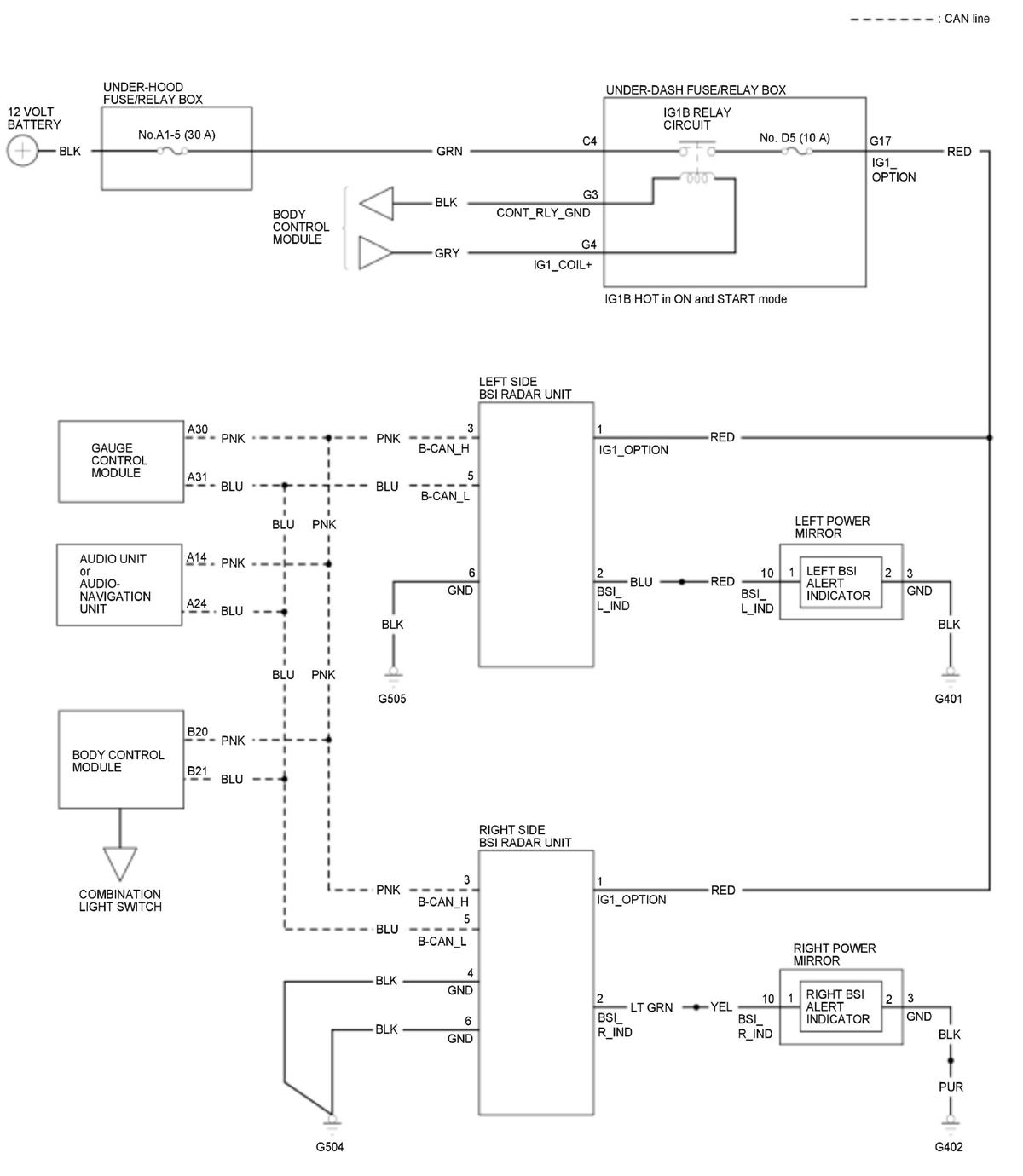

Blind Spot Information (BSI) System Circuit Diagram
Blind Spot Information (BSI) System Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
