BSI Radar Unit Mounting Area Check: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Center Line - Set
  2. BSI Radar Unit - Remove
  3. Upper Body Measuring Dimensions - BSI Radar Unit Mounting Positions

    1. Install bolts on each hole of the body panel.

    2. Measure the length from the tip of the bolt installed to each hole A, B, and C to the body center line.

    NOTE:  If the measured lengths between the body center line and hole A to C are different from the standard, take the vehicle to a body repair shop to have the panel adjusted to standard.

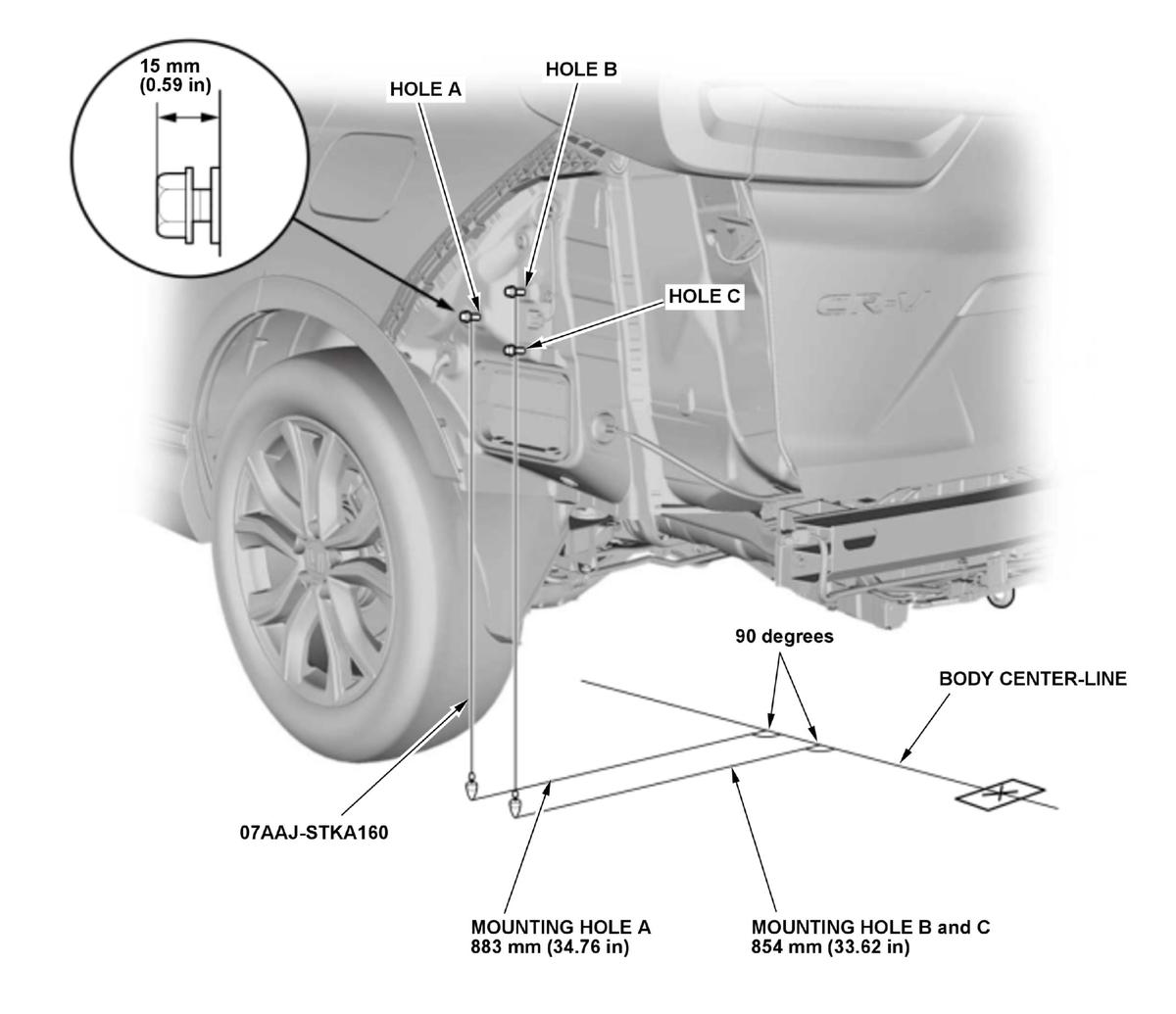

    GHH381109Courtesy of HONDA, U.S.A., INC.
  4. BSI Radar Unit - Install
  5. Rear Bumper - Install
