DTC B0010-11, B0011-11
DTC B0010-11 : Short to Ground in the Front Passenger's Airbag First Inflator
DTC B0011-11 : Short to Ground in the Front Passenger's Airbag Second Inflator
Special Tools Required
SRS Inflator Simulator 07SAZ-TB4011A
SRS Simulator Lead J 070AZ-SNAA100
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .
| DTC Description | DTC |
|---|---|
| B0010-11 Short to ground in the front passenger's airbag first inflator | |
| B0011-11 Short to ground in the front passenger's airbag second inflator |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS.
-2. Turn the vehicle to the ON mode, then wait for 10 seconds.
-3. Check for DTCs with the HDS.
DTC Description DTC B0010-11 Short to ground in the front passenger's airbag first inflator DTC Description DTC B0011-11 Short to ground in the front passenger's airbag second inflator Is DTC B0010-11 or B0011-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.
- Front passenger's airbag inflator check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
-3. Remove the glove box .

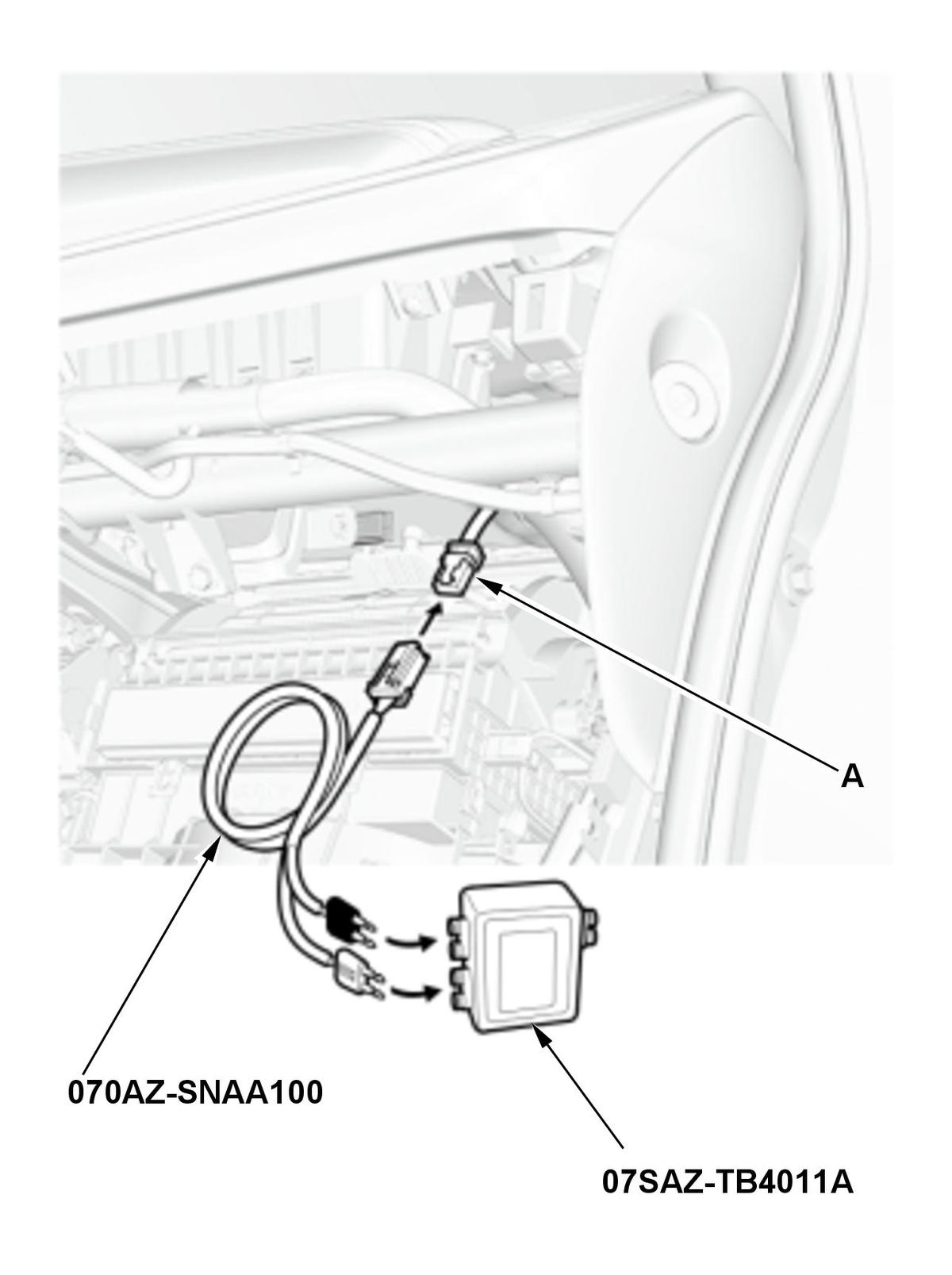

-4. Disconnect the front passenger's airbag inflator 4P connector (A) on the dashboard wire harness.
-5. Connect the terminals of SRS simulator lead J to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead J to the front passenger's airbag inflator 4P connector on the dashboard wire harness.
-6. Reconnect the negative cable to the 12 volt battery.
-7. Clear the DTCs with the HDS.
-8. Turn the vehicle to the ON mode, then wait for 10 seconds.
-9. Check for DTCs with the HDS.
DTC Description DTC B0010-11 Short to ground in the front passenger's airbag first inflator B0011-11 Short to ground in the front passenger's airbag second inflator Is DTC B0010-11 or B0011-11 indicated?
YES
Go to step 3.
NO
Short to ground in the front passenger's airbag first or second inflator; replace the front passenger's airbag , then clear the DTC.
- Shorted wire check (RA1+, RA1-, RA2+, RA2- lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
-3. Disconnect the following connector.
SRS unit connector A (39P) -4. Disconnect the SRS inflator simulator from SRS simulator lead J. Do not disconnect SRS simulator lead J from the front passenger's airbag inflator 4P connector on the dashboard wire harness.

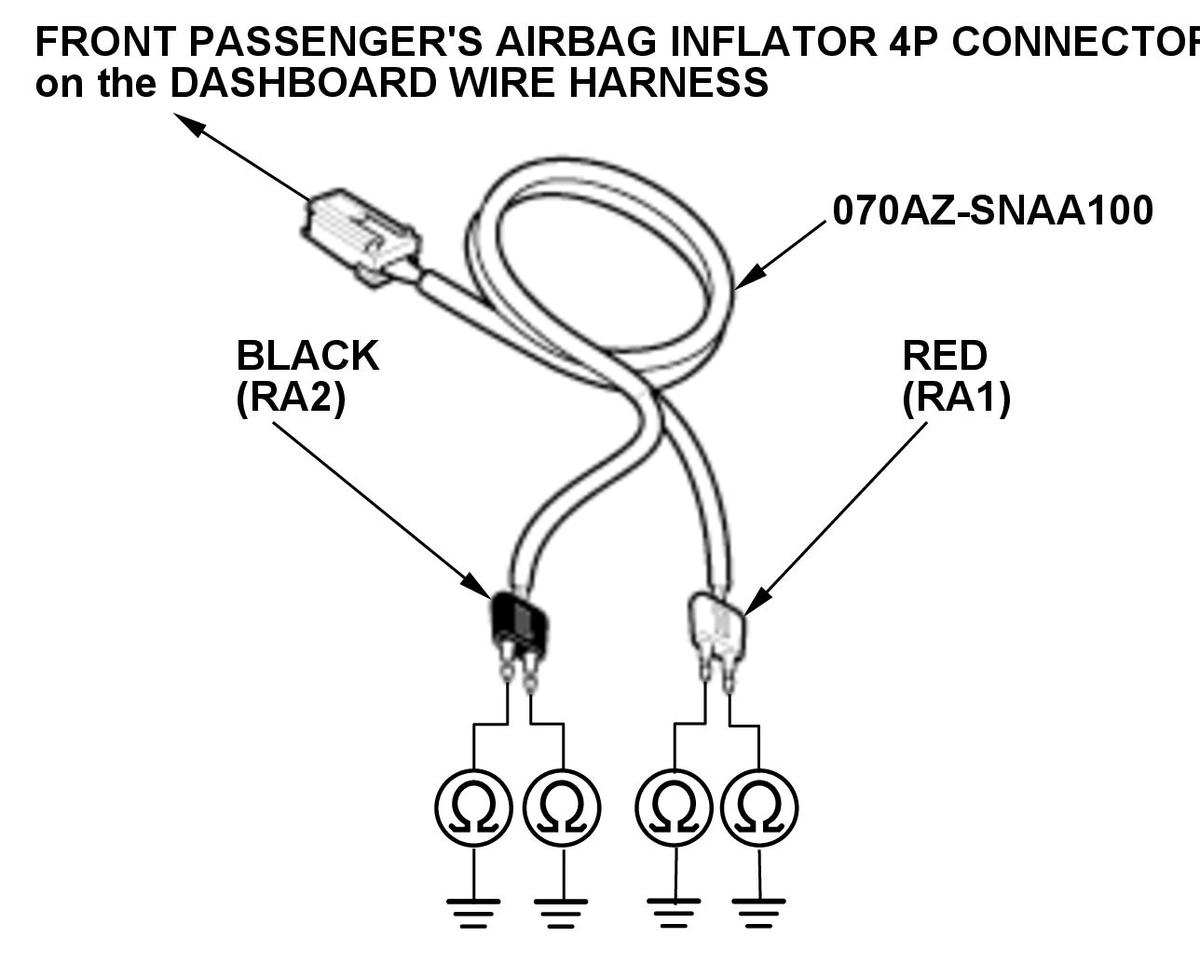

-5. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Front passenger's airbag inflator 4P connector (on the dashboard wire harness): disconnected SRS unit connector A (39P): disconnected Front passenger's airbag inflator 4P connector (on the dashboard wire harness): connected to SRS simulator lead J Test point 1 SRS simulator lead J black terminal Test point 2 Body ground Test point 1 SRS simulator lead J red terminal Test point 2 Body ground Is there an open circuit, or at least 1 MΩ?
YES
The RA1+, RA1-, RA2+, and RA2- wires are OK. Faulty SRS unit or poor connection at SRS unit connector A (39P) and the SRS unit. Check the connection; if the connection is OK, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit . If the DTC does not clear, replace the dashboard wire harness.
NO
Short to ground in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
