DTC P0135
DTC P0135 : A/F Sensor (Sensor 1) Heater Circuit Malfunction
NOTE: Before you troubleshoot, review the general troubleshooting information .
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P0135 A/F Sensor (Sensor 1) Heater Circuit Malfunction |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Clear the DTC with the HDS.
-3. Enter the maintenance mode, then start the engine .
-4. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
-5. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC P0135 A/F Sensor (Sensor 1) Heater Circuit Malfunction Is DTC P0135 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/F sensor (Sensor 1) and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .
- DTC check
-1. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC P1658 ETCS Control Relay ON Malfunction P1659 ETCS Control Relay OFF Malfunction Is DTC P1658 and/or P1659 indicated?
YES
Go to the indicated DTC's troubleshooting.
NO
Go to step 3.
- Fuse check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Check the following fuse.
Fuse No. A11 Is the fuse OK?
YES
Go to step 4.
NO
Repair a short in the IGPS (LAF) wire between the No. A11 fuse and the A/F sensor 1 (Sensor 1). Also replace the No. A11 fuse.
- A/F sensor (Sensor 1) internal heater resistance check
-1. Disconnect the following connector.

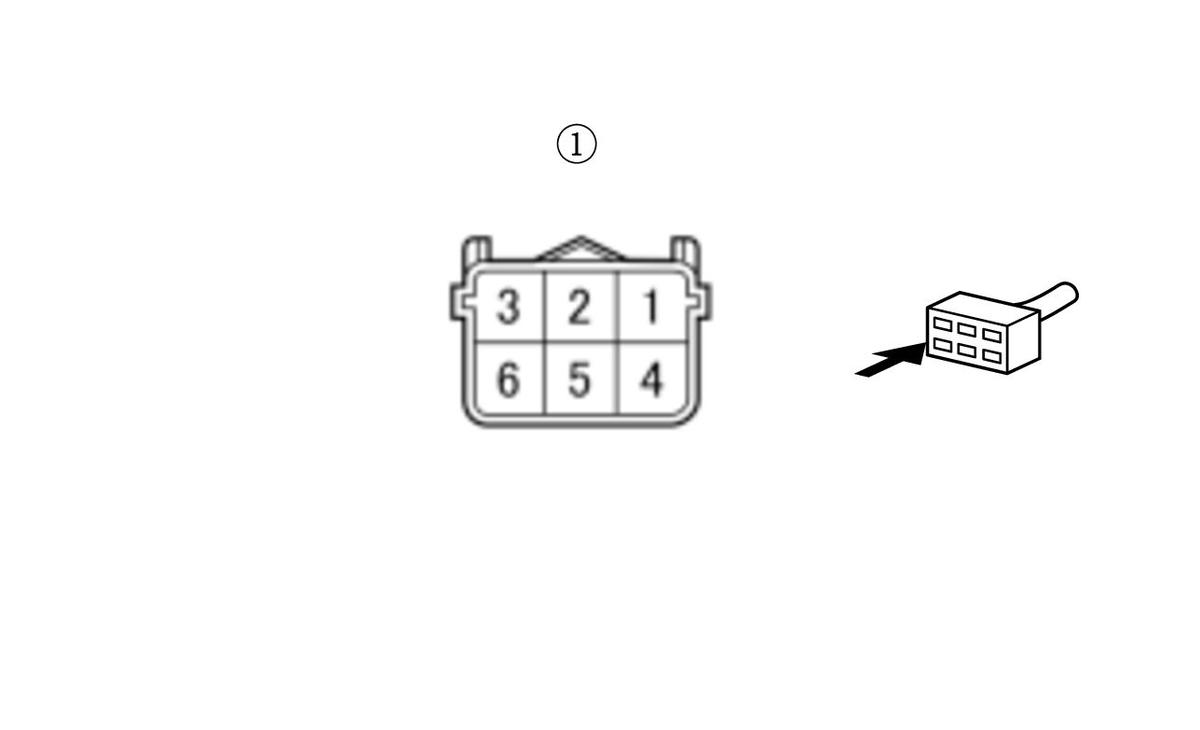

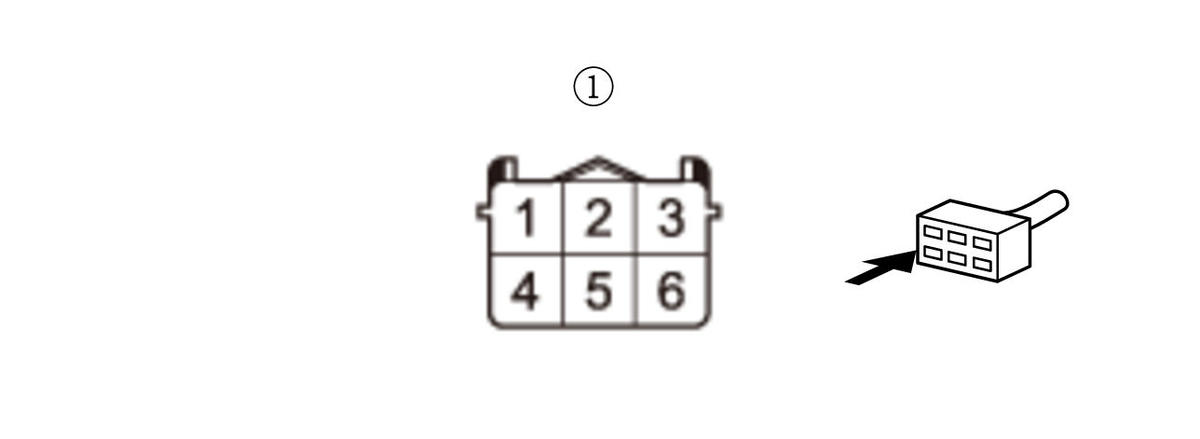

A/F sensor (Sensor 1) 6P connector -2. At the A/F sensor (Sensor 1) side, measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode A/F sensor (Sensor 1) 6P connector: disconnected Test point 1 A/F sensor (Sensor 1) 6P connector (female terminals) No. 1 (sensor side) : Test point 2 A/F sensor (Sensor 1) 6P connector (female terminals) No. 2 (sensor side) : Is there 2.8-4.5 Ω at room temperature?
YES
Go to step 5.
NO
- A/F sensor (Sensor 1) internal circuit check 1
-1. Measure the resistance between the following test points and body ground individually.
Test condition Vehicle OFF (LOCK) mode A/F sensor (Sensor 1) 6P connector: disconnected Connector Terminal A/F sensor (Sensor 1) 6P connector (female terminals) (sensor side) : No. 1 No. 2 No. 4 No. 5 No. 6 Is there 1 MΩ or more?
YES
Go to step 6.
NO
- A/F sensor (Sensor 1) internal circuit check 2
-1. Measure the resistance between the following test points and the A/F sensor (Sensor 1) 6P connector No. 1 individually.
Test condition Vehicle OFF (LOCK) mode A/F sensor (Sensor 1) 6P connector: disconnected Connector Terminal A/F sensor (Sensor 1) 6P connector (female terminals) (sensor side) : No. 2 No. 4 No. 5 No. 6 Is there 1 MΩ or more?
YES
Go to step 7.
NO
- Shorted wire check (AFHT line)
-1. Jump the SCS line with the HDS, and wait more than 1 minute.
-2. Disconnect the following connector.
PCM connector E (80P) -3. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode A/F sensor (Sensor 1) 6P connector: disconnected PCM connector E (80P) : disconnected Test point 1 PCM connector E (80P) No. 13 Test point 2 Body ground Is there 1 MΩ or more?
YES
The AFHT wire is not shorted. Go to step 8.
NO
Repair a short in the AFHT wire between the PCM (E13) and the A/F sensor (Sensor 1).
- Open wire check (AFHT line)
-1. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode A/F sensor (Sensor 1) 6P connector: disconnected PCM connector E (80P) : disconnected Test point 1 A/F sensor (Sensor 1) 6P connector (male terminals) No. 2: Test point 2 PCM connector E (80P) No. 13 Is there 1.0 Ω or less?
YES
The AFHT wire is OK. Go to step 9.
NO
Repair an open in the AFHT wire between the PCM (E13) and the A/F sensor (Sensor 1).
- Open wire check (IGPS (LAF) line)
-1. Turn the vehicle to the ON mode.
-2. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode A/F sensor (Sensor 1) 6P connector: disconnected PCM connector E (80P) : disconnected Test point 1 A/F sensor (Sensor 1) 6P connector (male terminals) No. 1: Test point 2 Body ground Is there battery voltage?
YES
The IGPS (LAF) wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .
NO
Repair an open in the IGPS (LAF) wire between the A/F sensor (Sensor 1) and the No. A11 fuse .
