DTC P00FE

DTC P00FE  : EVAP Vent Line Blockage

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Fuel tank vapor control valve/fuel vent tube check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Insert the emergency fuel funnel into the fuel filler neck .

   -3. Remove the heat shield .

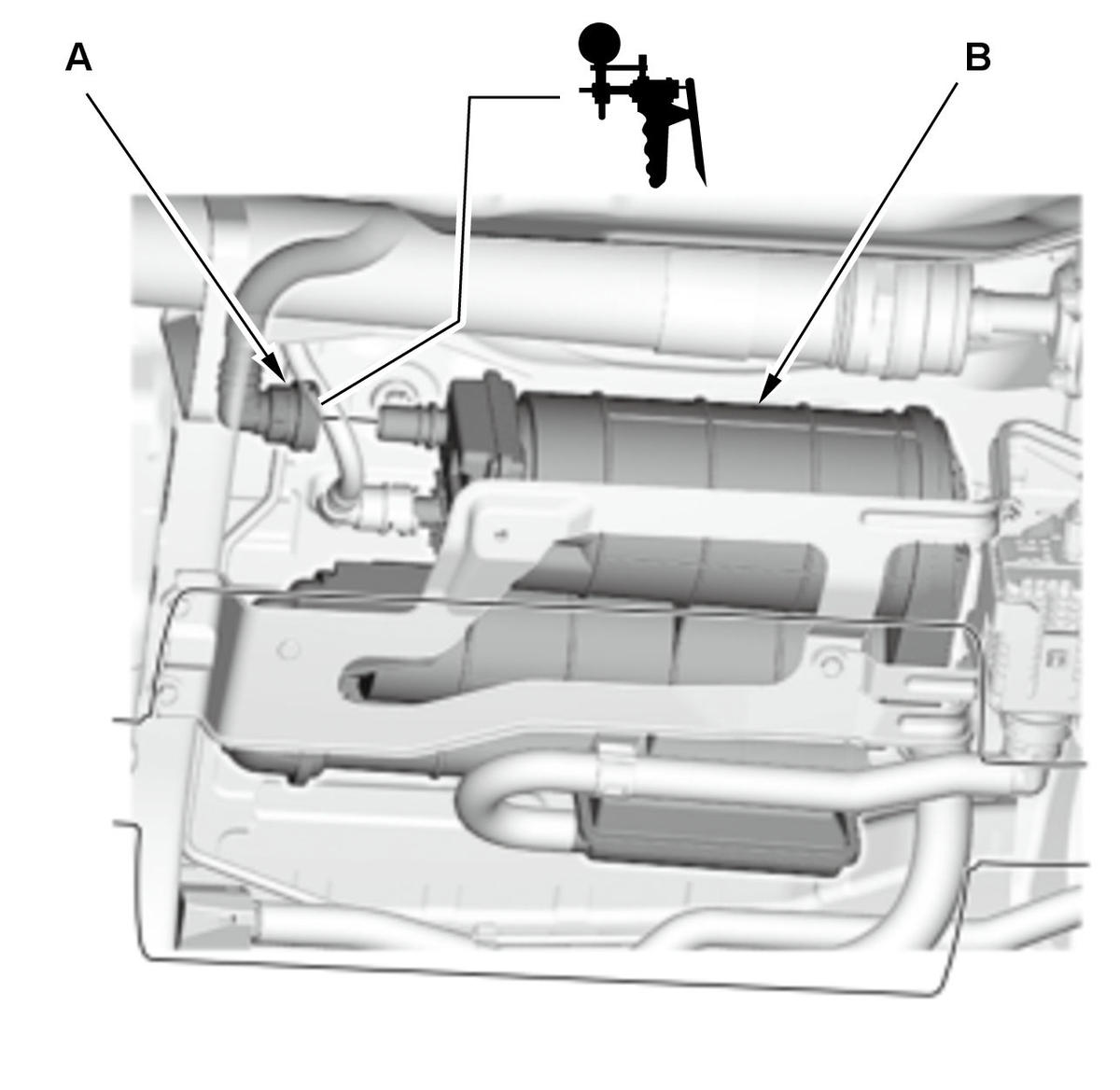

   -4. Disconnect the fuel vent tube (A) from the EVAP canister (B), and connect a vacuum pump/gauge, 0-30 inHg, to the fuel vent tube as shown.

   Courtesy of HONDA, U.S.A., INC.

   -5. Apply vacuum to the fuel vent tube.

   Does it hold the vacuum?

   YES

   Replace the fuel tank .

   NO

   Go to step 2.

2. EVAP canister check 1

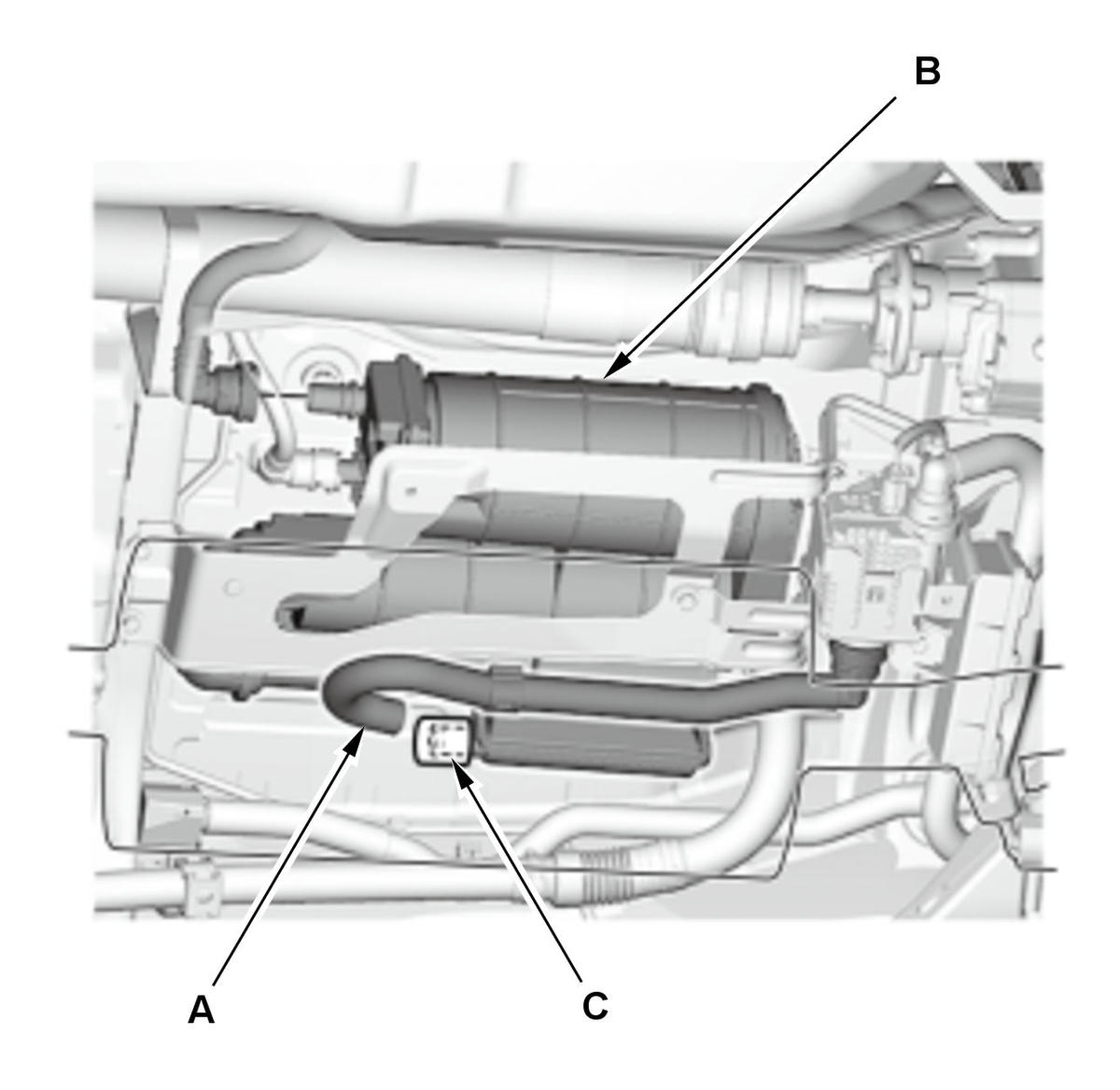

   -1. Disconnect drain hose A from the EVAP canister (B), then plug the drain tube port (C).

   Courtesy of HONDA, U.S.A., INC.

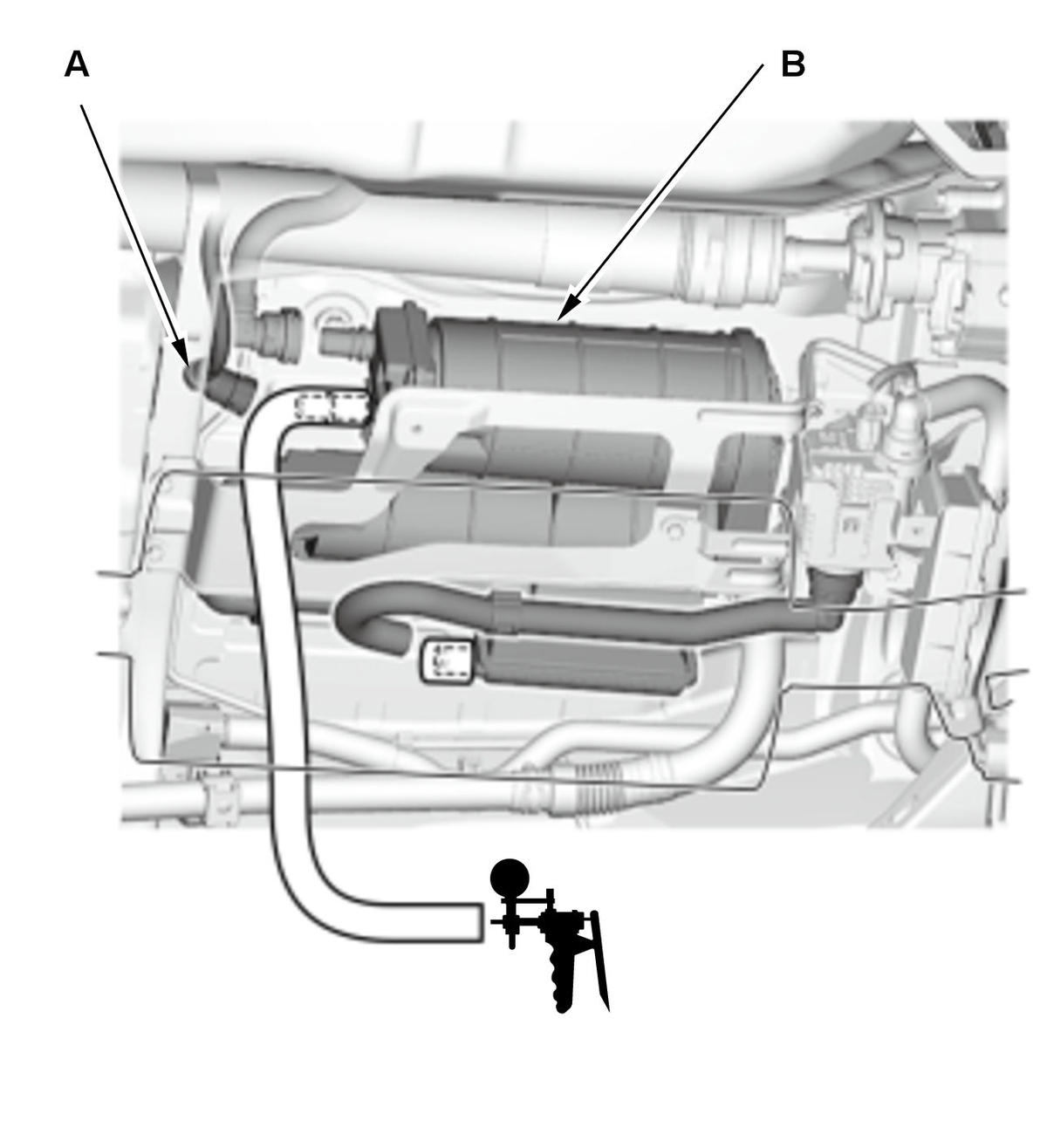

   -2. Disconnect the EVAP canister purge hose (A) from the EVAP canister (B), then connect the vacuum pump/gauge, 0-30 inHg, to the EVAP canister as shown.

   Courtesy of HONDA, U.S.A., INC.

   -3. Apply vacuum to the EVAP canister.

   Does it hold the vacuum?

   YES

   Replace the EVAP canister .

   NO

   Go to step 3.

3. EVAP canister check 2

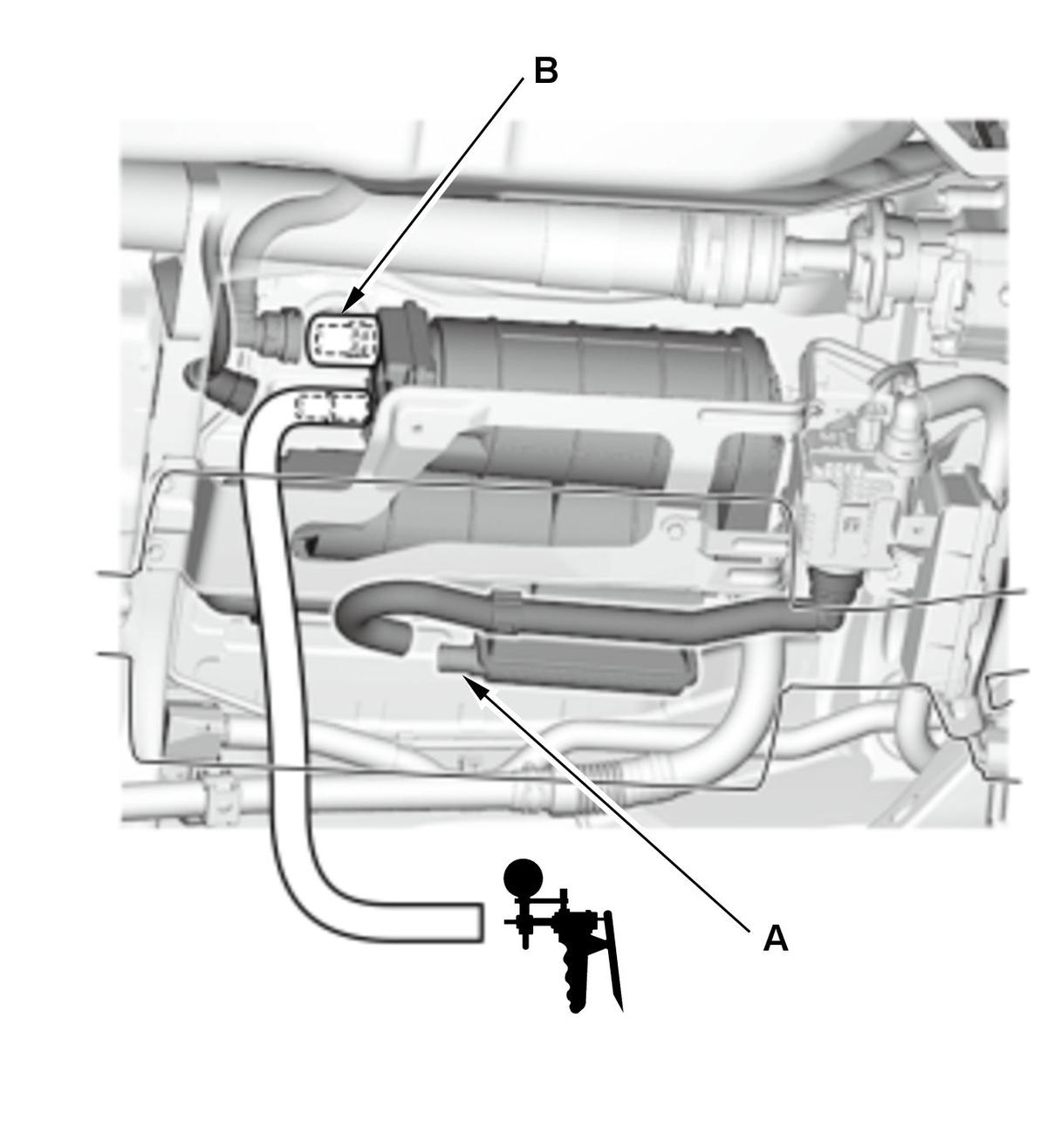

   -1. Remove the plug from the drain tube port (A) and plug the fuel vent tube port (B), then connect the vacuum pump/gauge, 0-30 inHg, to the EVAP canister as shown.

   Courtesy of HONDA, U.S.A., INC.

   -2. Apply vacuum to the EVAP canister.

   Does it hold the vacuum?

   YES

   Replace the EVAP canister .

   NO

   Go to step 4.

4. Drain hose A visual check

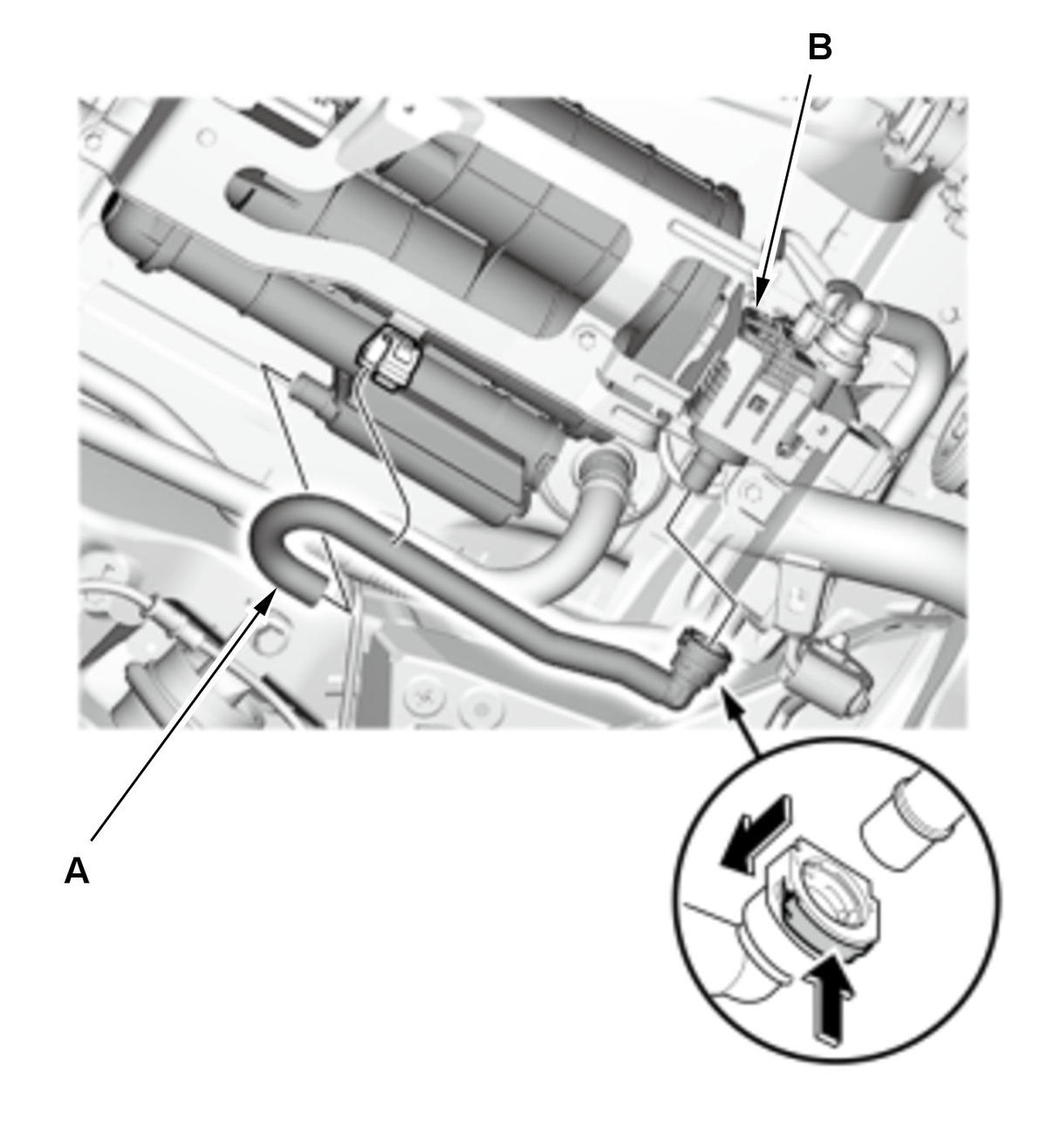

   -1. Disconnect drain hose A from the EVAP leak check module (B).

   Courtesy of HONDA, U.S.A., INC.

   -2. Visually check drain hose A for deformation, foreign object clogged, or restrictions.

   Is the hose OK?

   YES

   Replace the EVAP leak check module .

   NO

   Replace drain hose A .
