DTC P1D97

DTC P1D97:  Generator Motor Phase Current Sensors Multiple Failure

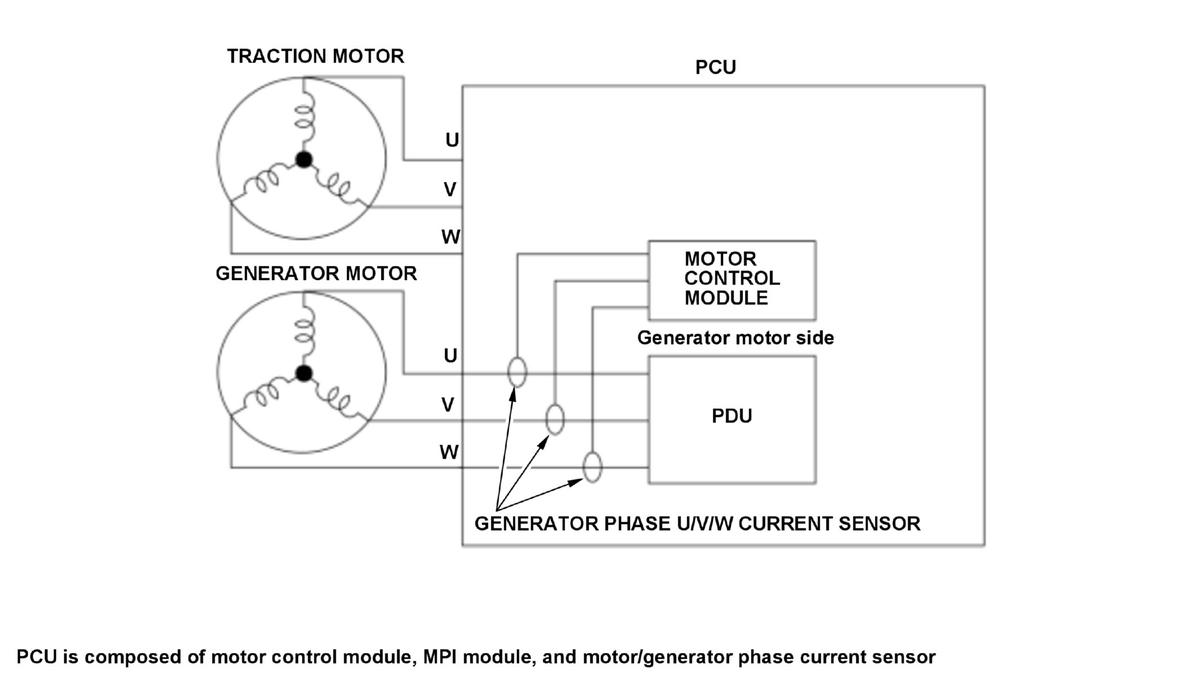

General Description

Courtesy of HONDA, U.S.A., INC.

The power control unit (PCU) controls the generator motor output based on the generator phase current sensor signals. If a failure in the current sensor or sensor power supply is detected in two phases or more, it is determined more than one failure occurs and the PCU detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Enable Conditions

Malfunction Threshold

If a failure in the following current sensor is detected in two phases or more or in three-phase sum failure +1 phase or more.

• The motor control module detects a U phase malfunction.
• The motor control module detects a V phase malfunction.
• The motor control module detects a W phase malfunction.
• The motor control module detects a U, V and W phases malfunction.

Possible Cause

NOTE:  The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

• PCU internal failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
