DTC P1D8C
DTC P1D8C: Generator Motor Inverter Over Current
General Description

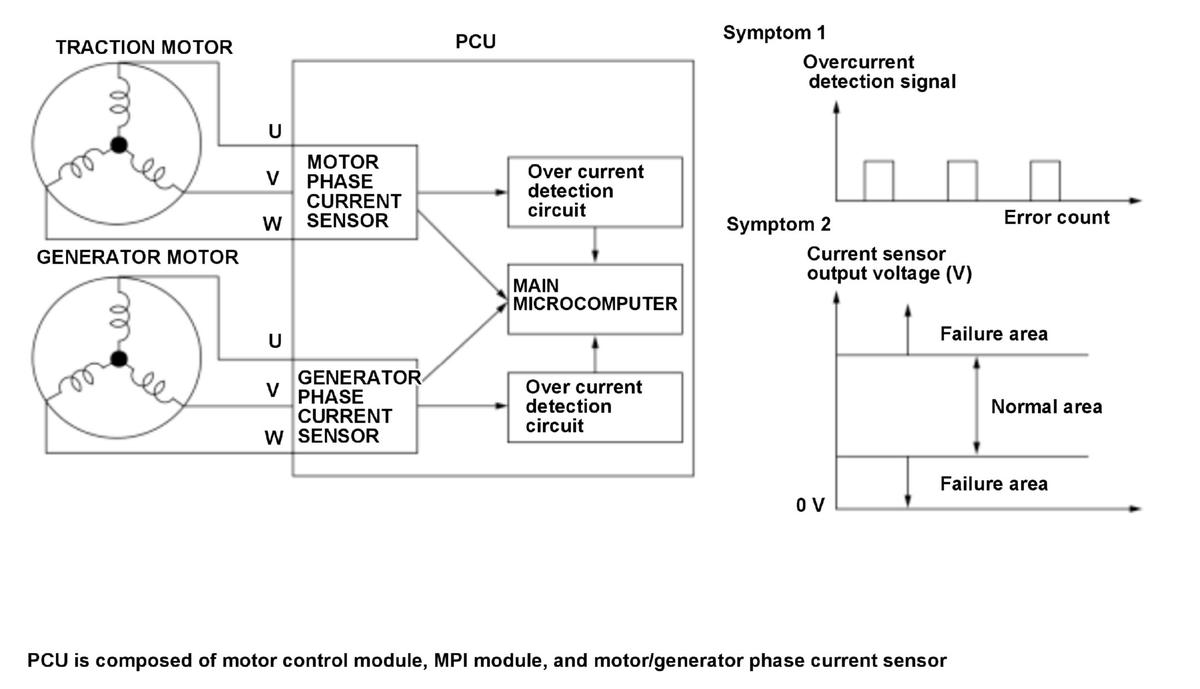

The power control unit (PCU) controls the generator motor output and detects overcurrent based on the generator phase current sensor signals. If either of the following conditions occurs, the motor control module in the PCU detects a malfunction and stores a DTC.
Symptom 1
If an overcurrent is detected in generator phase current, a failure information is output to the main microcomputer. If an overcurrent occurs in specified times, the motor control module in the PCU detects a malfunction and stores a DTC.
Symptom 2
If an overcurrent detection circuit is malfunctioning, a failure information is not output to the main microcomputer. If a current sensor signal reaches an over current state in specified times, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Within 1.2 seconds |
| DTC Type | One drive cycle, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage | 8 V | - |
Malfunction Threshold
One of these symptoms occurs:
Symptom 1
- If the output voltage from the current sensor exceeds the specified value and an overcurrent is detected three times within 1.2 seconds.
Symptom 2
- If the output voltage from the current sensor transfers from the normal range to the failure range three times within 1.2 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Generator motor power cable line failure
- Generator motor motor rotor position sensor line failure
- Generator motor failure
- Generator motor motor rotor position sensor failure
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
