DTC P1D13
DTC P1D13: Generator Motor Phase Current Sensor Range/Performance
General Description

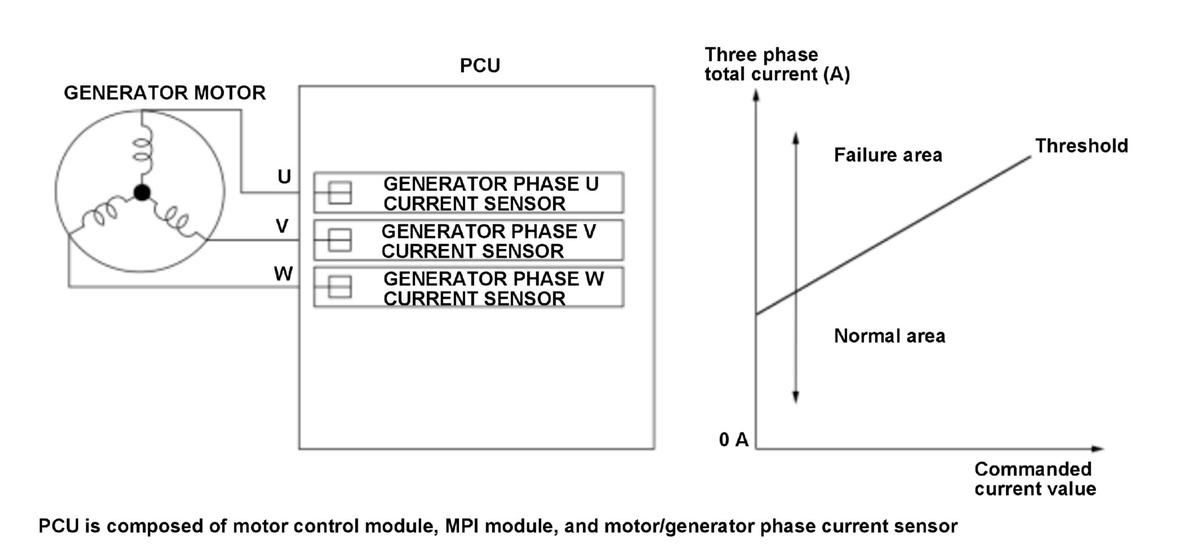

The power control unit (PCU) controls the motor output based on the generator phase current sensor signals. If the sum of three generator phase current sensor current is out of a specified range for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 350 milliseconds or more |
| DTC Type | Two drive cycles, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage | 8 V | - |
Malfunction Threshold
IGBT gate active condition:
The sum of the three generator phase current sensor current is more than |commanded current value x 0.138 + 34.6 A| for at least 350 milliseconds.
IGBT gate not active condition:
The sum of the three generator phase current sensor current is more than 111.9 A for at least 350 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the motor control module memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
