DTC P1A56: Traction Motor Current Too High
General Description

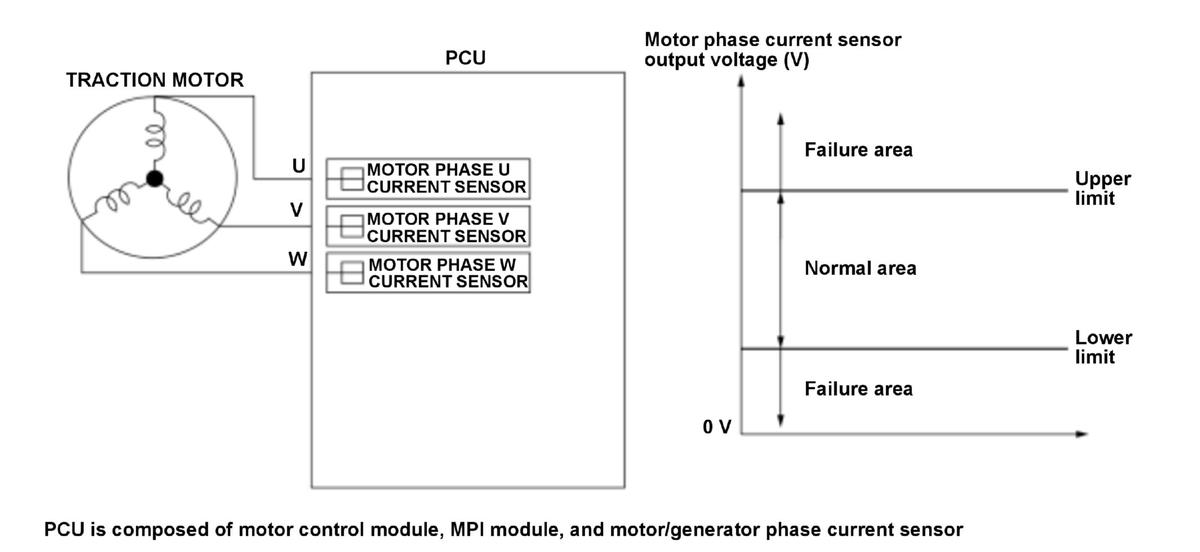

The power control unit (PCU) controls the motor output based on the motor phase current sensor signals. If the motor phase current sensor output voltage is out of a specified range, the motor control module in the PCU detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 190 milliseconds or more |
| DTC Type | One drive cycle, MIL on, POWER SYSTEM indicator on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage | 8 V | - |
| Gate drive circuit | Operated | |
Malfunction Threshold
The motor phase current sensor output voltage is more than 4.53 V, or less than 0.47 V for at least 190 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Traction motor power cable line failure
- Traction motor motor rotor position sensor line failure
- Traction motor motor rotor position sensor failure
- Traction motor failure
- PCU internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
